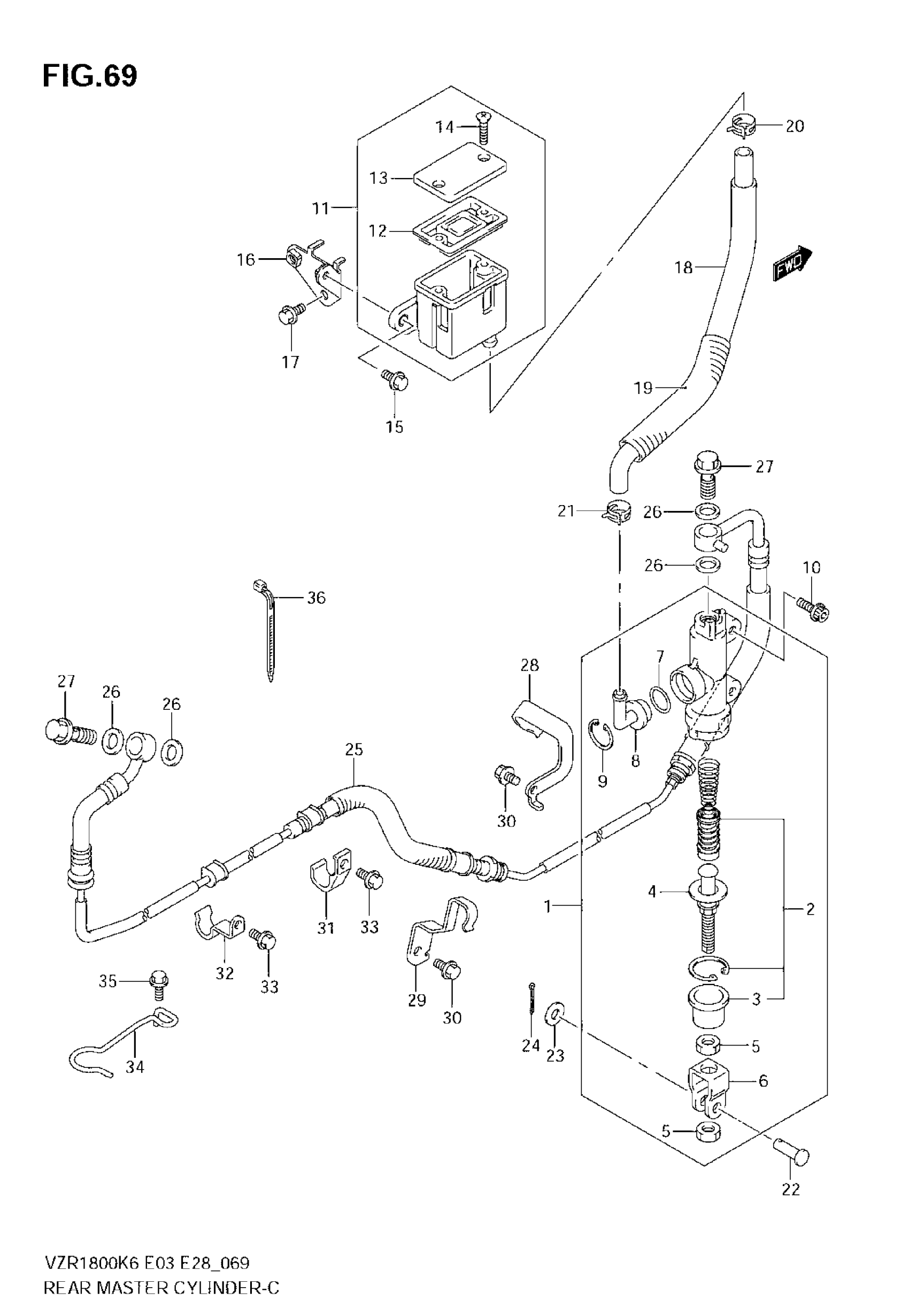

Suzuki VZR1800 (2009) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-48G00

$312.98

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-44B00

Unavailable

5

NUT

69693-05A00

$1.96

6

YOKE

69692-19A00

$16.87

7

O RING

69686-34200

$2.93

8

CONNECTOR

69672-00B20

$7.01

9

CIRCLIP

69674-00B20

$3.97

10

BOLT, REAR MASTER CYLINDER

07120-0625A

$2.50

11

TANK ASSY, REAR RESERVOIR | Includes Item(s) 12 - 14

69740-48G00

$80.02

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT, REAR RESERVOIR TANK

01547-0612A

$2.03

16

BRACKET, REAR RESERVOIR TANK

69750-48G00

Unavailable

17

BOLT, REAR RESERVOIR TANK BRKT

01550-0612A

$1.97

18

HOSE, REAR RESERVOIR

69730-48G00

Unavailable

19

HEATSHIELD,RR RSVR TANK HOSE This part replaces 69732-48G00.

69732-48G01

$17.00

20

CLAMP, UPPER

09401-13417

$2.26

21

CLAMP, LOWER

09401-12404

$2.34

22

PIN, REAR MASTER CYLINDER

09200-06068

$4.11

23

WASHER

08322-0106A

$1.84

24

PIN, COTTER

04111-2015A

$1.49

25

HOSE This part replaces 69400-48G10.

69400-48G11

$154.00

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

BOLT, BRAKE FLUID

09360-10062

$6.43

28

CLAMP, REAR BRAKE HOSE NO.2

69266-48G01

Unavailable

29

CLAMP, REAR BRAKE HOSE NO.3

69268-48G00

Unavailable

30

BOLT

01550-0612A

$1.97

31

CLAMP, REAR BRAKE HOSE

69268-29G01

$17.70

32

CLAMP, REAR BRAKE PIPE

69269-48G00

$12.65

33

BOLT

01547-0612A

$2.03

34

GUIDE, REAR BRAKE HOSE

69243-48G00

Unavailable

35

BOLT | VZR1800K6/K7/ZK7/NK8/K9/NK9

01550-0612A

$1.97

35

BOLT | VZR1800K8/ZK8

01550-0616A

$1.97

36

CLAMP, REAR BRAKE HOSE

09407-18402

$2.19
