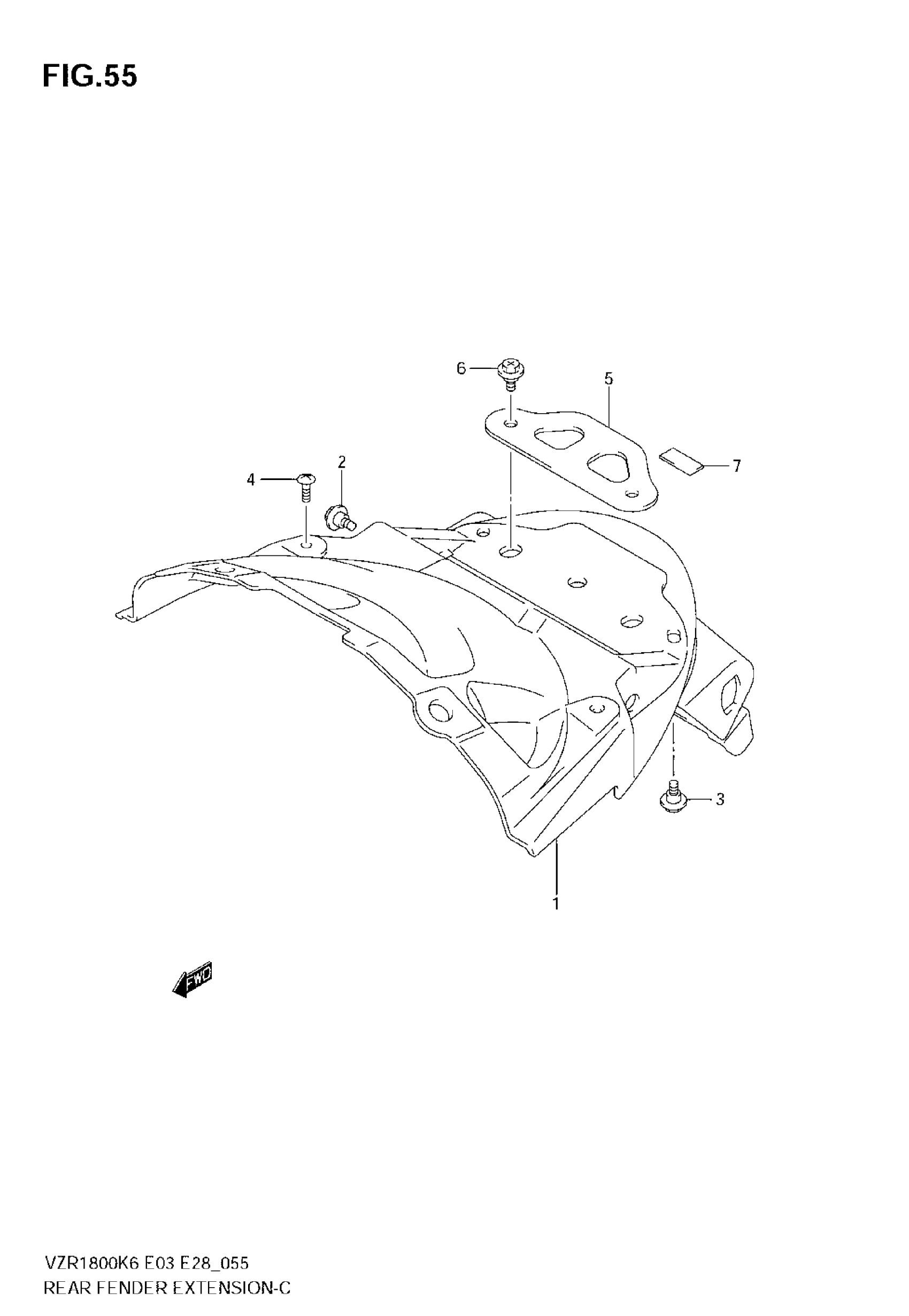

Suzuki VZR1800 (2009) REAR FENDER EXTENSION Diagram

#

Description

Price

1

EXTENSION, REAR FENDER This part replaces 63311-48G00.

63311-48G01

$101.52

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.60

3

BOLT, UPPER, LH

09111-06090

$2.53

4

BOLT, LOWER

02142-0516A

$1.49

5

PLATE, EXTENSION

63121-48G00

$15.25

6

SCREW This part replaces 09116-06181.

09116-06191

Unavailable

7

CUSHION

33652-18G00

$2.63
