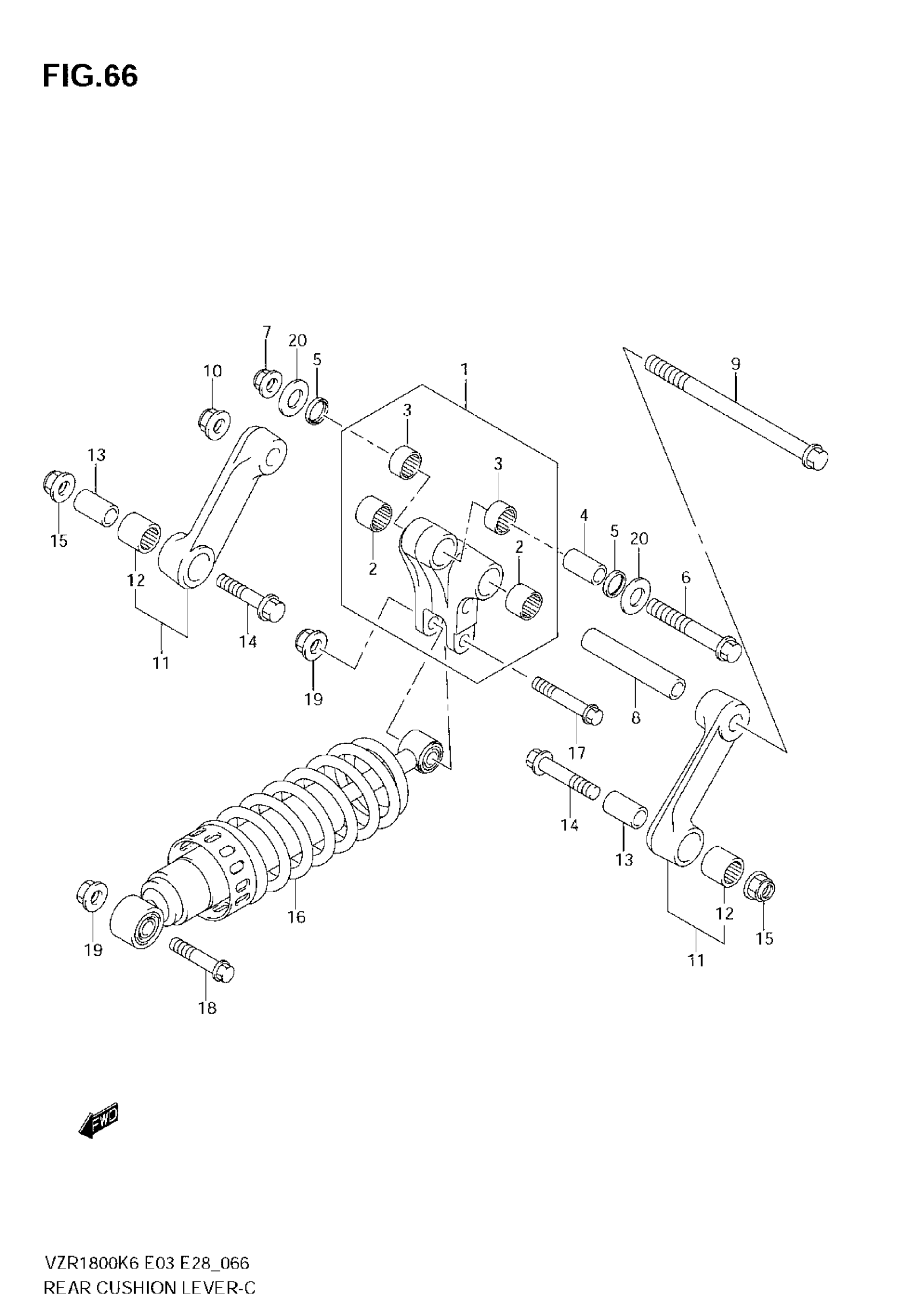

Suzuki VZR1800 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 3

62600-48870

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING, 20X26X14

09263-20090

$16.23

4

SPACER, UPPER

62684-48G00

Unavailable

5

SEAL, UPPER

09284-20003

$6.47

6

BOLT, UPPER

62658-33D00

Unavailable

7

NUT

08319-3114A

$9.66

8

SPACER, LOWER

09180-14018

Unavailable

9

BOLT, LOWER

62621-48G00

$27.40

10

NUT

08319-3114A

$9.66

11

ROD SET,RR CUSHION | Includes Item(s) 12 This part replaces 62600-48880.

62600-48881

$165.30

12

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

13

SPACER, REAR CUSHION ROD

09180-14014

$17.50

14

BOLT, REAR CUSHION ROD FR

09103-14016

Unavailable

15

NUT, REAR CUSHION ROD

08319-3114A

$9.66

16

ABSORBER ASSY, REAR SHOCK | VZR1800K6/K7/ZK7/NK8 E3,E33

62100-48G10

Unavailable

16

ABSORBER ASSY, REAR SHOCK | VZR1800K6/K7/ZK7/NK8 E28

62100-48G00

Unavailable

16

ABSORBER ASSY, REAR SHOCK | VZR1800K8/ZK8/K9/NK9 E28

62100-48G20

Unavailable

16

ABSORBER ASSY, REAR SHOCK | VZR1800K8/ZK8/K9/NK9 E3,E33

62100-48G30

Unavailable

17

BOLT, REAR SHOCK ABS REAR

62658-01C60

$13.55

18

BOLT, REAR SHOCK ABS FRONT

09103-12042

$8.50

19

NUT

09159-12056

$7.37

20

WASHER

08211-14341

$3.42
