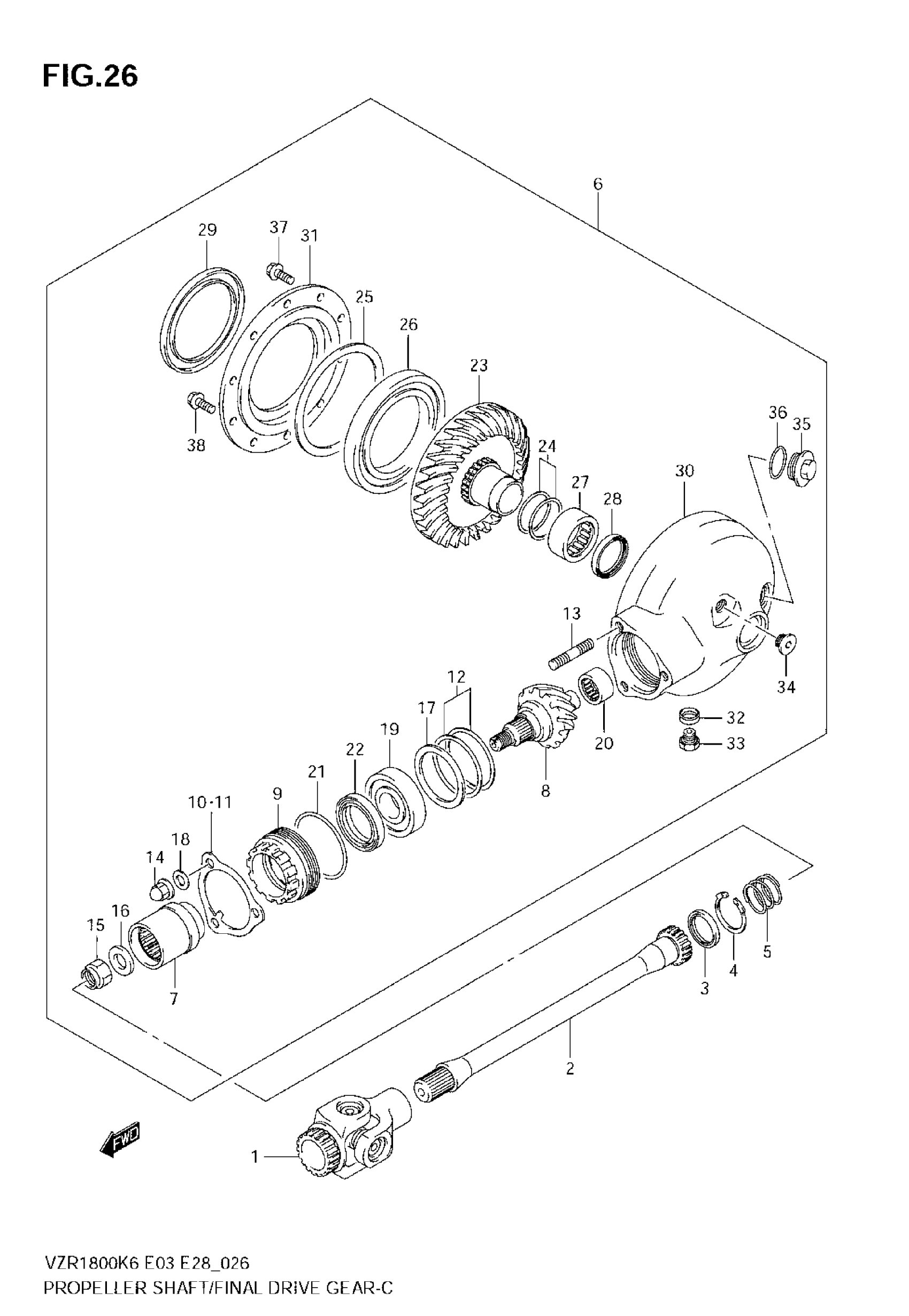

Suzuki VZR1800 (2009) PROPELLER SHAFT/FINAL DRIVE GEAR (MODEL K6/K7) Diagram

#

Description
Price

1

YOKE, UNIVERSAL JOINT This part replaces 27100-48G00.

27100-48G20

$351.00

2

SHAFT, PROPELLER This part replaces 27151-48G00.

27151-48G20

$278.10

3

SEAL, COUPLING OIL

09283-30026

$10.40

4

CIRCLIP, COUPLING

09381-40003

$4.64

5

SPRING, PROPELLER SHAFT

09440-30008

$3.72

6

GEAR & CASE SET | Includes Item(s) 7 - 38 This part replaces 27300-48810.

27300-48811

Unavailable

7

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

8

GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

9

STOPPER, FINAL DRIVE BE

27312-24A02

$74.08

10

PLATE, BEARING STOPPER

27313-38B00

$7.37

11

PLATE, BEARING STOPPER

27313-38B10

$7.37

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40/0.50/0.60

27445-24810

$28.18

13

STUD BOLT This part replaces 09108-10106-A05.

09108-10106

$4.68

14

NUT, FINAL GEAR CASE

09159-10026

$6.20

15

NUT This part replaces 09159-16003-A05.

09159-16003

$4.00

16

WASHER, FINAL DRIVE NUT | 16X29X4

09160-16029

$6.35

17

WASHER, FINAL DRIVE BEARING | 54X68X1.5

09160-54001

Unavailable

18

WASHER, FINAL GEAR CASE NUT

09164-10008

$1.71

19

BEARING, FINAL DRIVE GEAR | 28X68X18

09262-28023

$127.87

20

BEARING (20X34X18) | 20X34X18

09263-20062

$46.98

21

O RING, BEARING STOPPER | DD:3.1,ID:63.9

09280-64003

$5.64

22

SEAL, FINAL DRIVE OIL | 45.5X58X7

09283-47002

$17.18

23

GEAR, FINAL DRIVEN

27320-48G00

Unavailable

24

SHIM SET, FINAL DRIVEN, L | T:0.95/1.05/1.10/1.20/1.25/ 1.35/1.40/1.45/1.50

27326-48811

$103.03

25

SHIM SET, FINAL DRIVE, R | T:0.35/0.40/0.50/0.60

27327-38810

$108.97

26

BEARING, FINAL DRIVEN GEAR, R | 85X130X14

09262-85001

$202.27

27

BEARING, FINAL DRIVEN GEAR, L

09263-40016

$68.97

28

SEAL, FINAL DRIVEN, L

09283-38026

$16.33

29

SEAL, FINAL DRIVEN, R

09289-85001

$41.81

30

CASE, FINAL GEAR

27450-48G00

Unavailable

31

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

32

GASKET, GEAR OIL DRAIN PLUG | 13.8X18.8X4.8

09168-14002

$2.26

33

PLUG (MAGNETO) This part replaces 09247-14002-A05.

09247-14002

$5.24

34

PLUG, OIL DRAIN This part replaces 09248-16012-A05.

09248-16012

$4.64

35

PLUG, GEAR OIL FILLER

09259-30007

$18.39

36

O RING, GEAR OIL FILLER | DD:3.1,ID:26.4

09280-26006

$2.76

37

BOLT, FINAL GEAR BEARING

01550-0825A

$2.32

38

BOLT (10X20)

01550-1025A

$3.05
