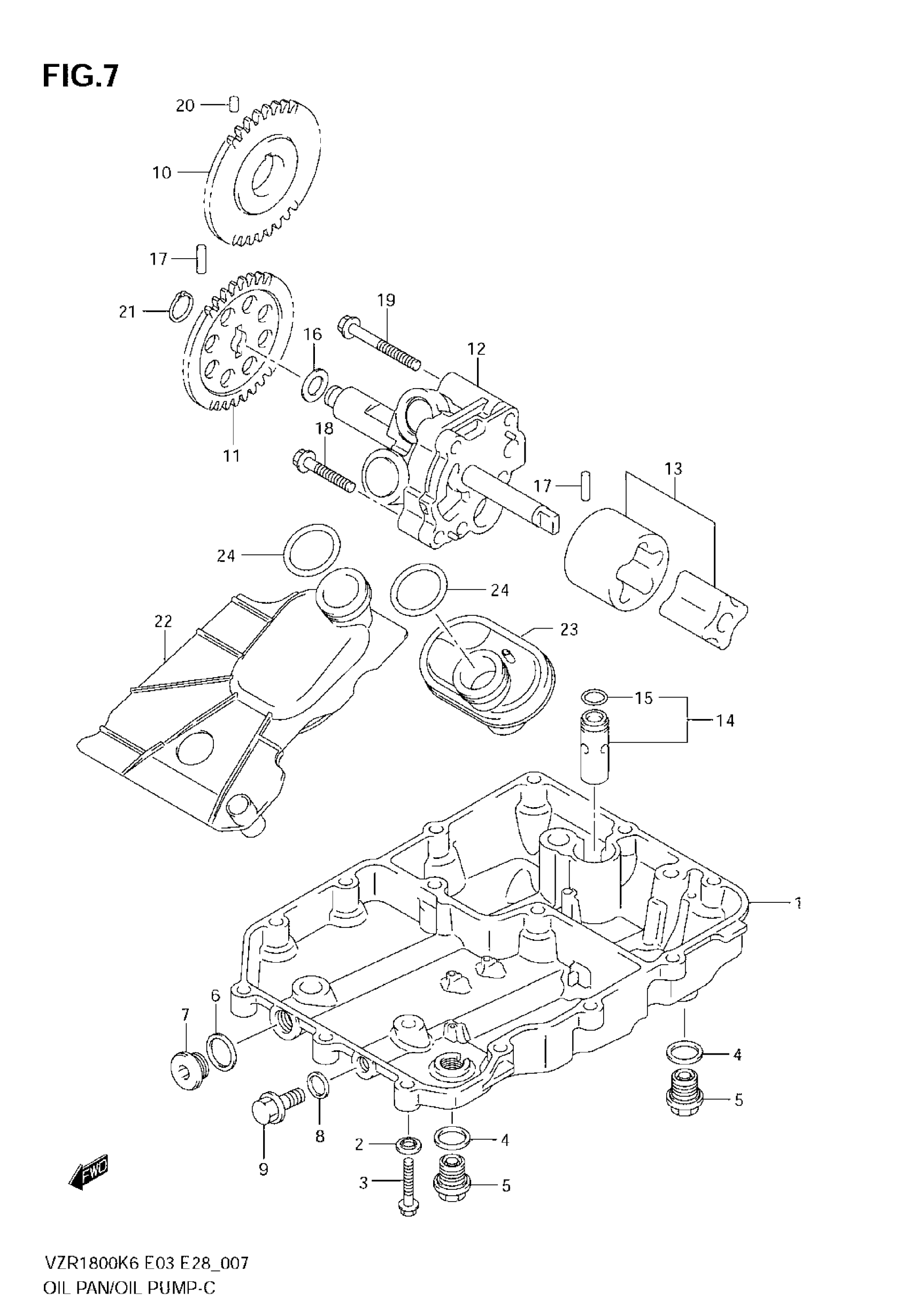

Suzuki VZR1800 (2009) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-48G00.

11511-48G01

$355.08

2

GASKET

09168-06023

$2.09

3

BOLT

01547-0630A

$2.38

4

GASKET

09168-14002

$2.83

5

PLUG, OIL DRAIN This part replaces 09247-14036-A05.

09247-14036

$5.74

6

GASKET

09168-16002

$1.97

7

PLUG, OIL DRAIN This part replaces 09248-16012-A05.

09248-16012

$4.32

8

GASKET

09168-10002

$1.96

9

PLUG, OIL GALLERY

09247-10008

$2.01

10

GEAR, OIL PUMP DRIVE

16321-48G00

Unavailable

11

GEAR, OIL PUMP DRIVEN

16331-48G00

Unavailable

12

PUMP ASSY,ENGINE OIL This part replaces 16400-48G00.

16400-48G01

$288.72

13

ROTOR SET, OIL PUMP

16410-48G00

$71.33

14

VALVE ASSY, OIL RELIEF | Includes Item(s) 15

16440-24F00

$47.86

15

O RING

09280-13004

$2.25

16

WASHER

09181-10158

$2.03

17

PIN

09261-04009

$1.56

18

BOLT

01547-0635A

$2.38

19

BOLT

01547-0655A

$2.53

20

PIN

04221-04069

$2.30

21

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.82

22

STRAINER, ENG OIL FRONT This part replaces 16530-48G00.

16530-48G01

$47.42

23

STRAINER, ENG OIL REAR This part replaces 16520-48G00.

16520-48G01

$37.10

24

O RING

09280-22016

$5.18
