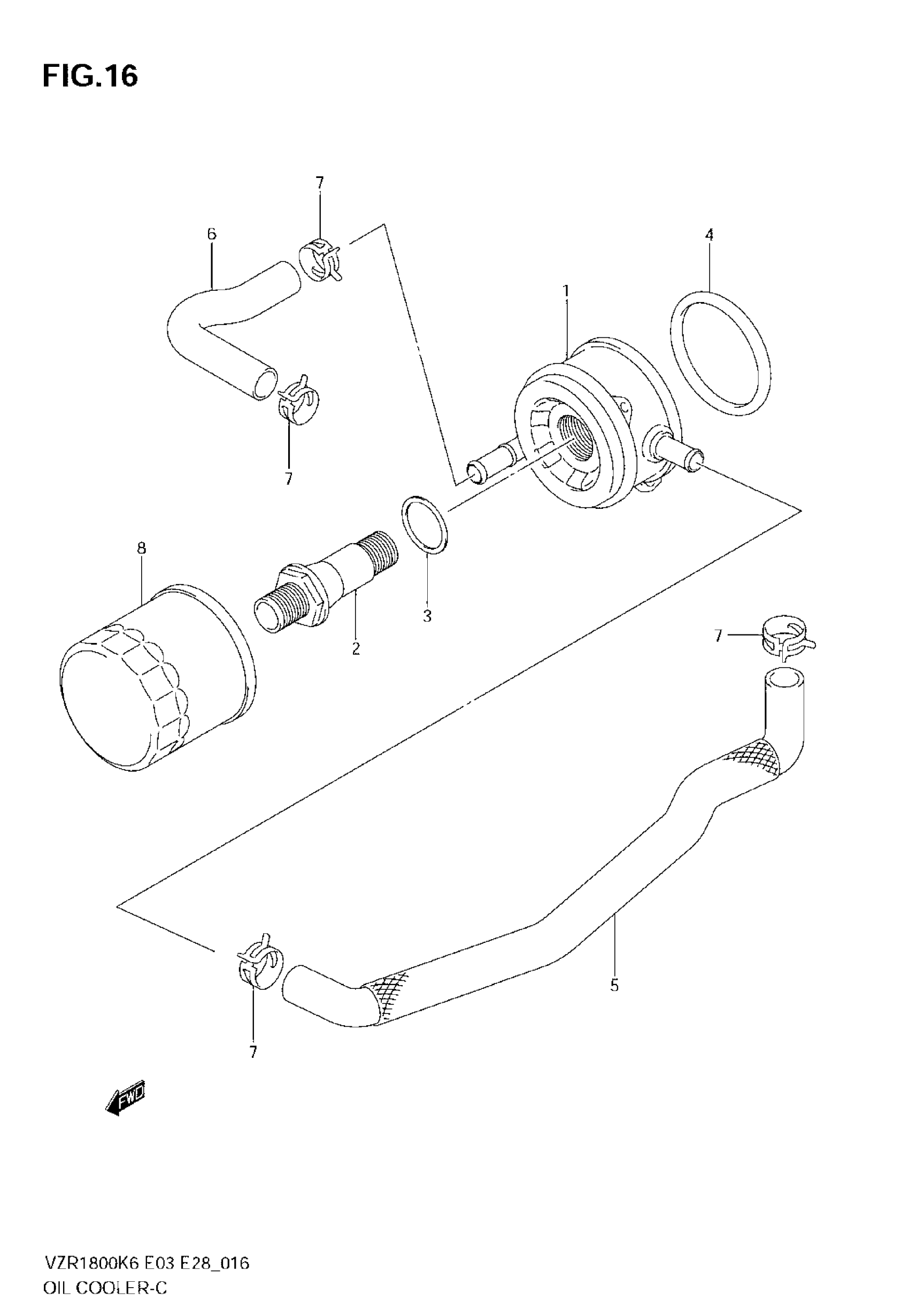

Suzuki VZR1800 (2009) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY, OIL

16600-48G00

$757.88

2

BOLT

16591-49X00

Unavailable

3

WASHER

09181-25160

$3.03

4

O RING

09280-64003

$5.09

5

HOSE, INLET

16461-48G00

$45.13

6

HOSE, OUTLET

16471-48G00

$18.22

7

CLIP

09401-16407

$2.53

8

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$11.99
