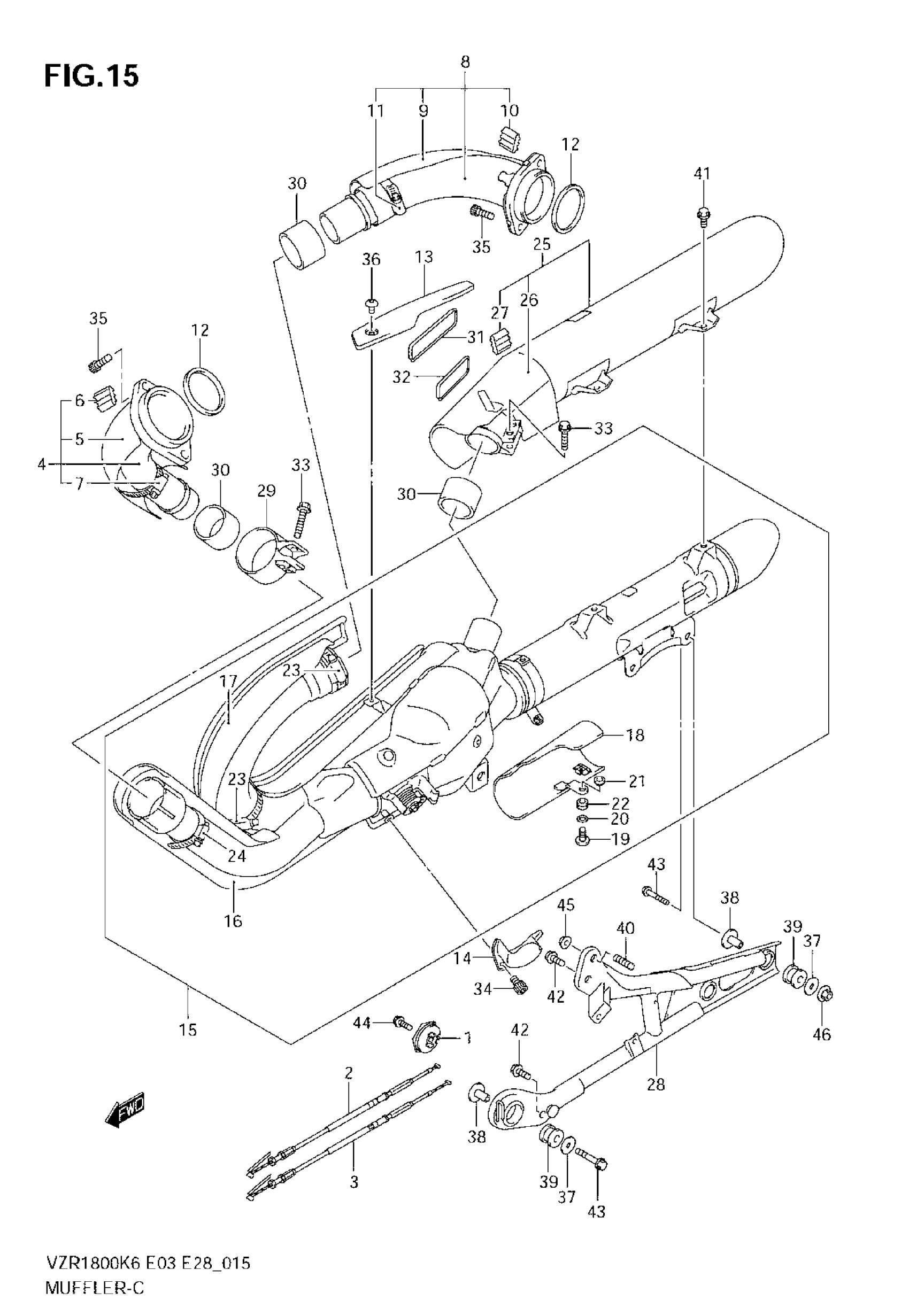

Suzuki VZR1800 (2009) MUFFLER (MODEL K6/K7) Diagram

#

Description
Price

1

PULLEY, CONTROLLER This part replaces 11269-18G00.

11269-18G01

$28.78

2

CABLE, EXHAUST VALVE NO.1 This part replaces 11276-48G00-E00.

11276-48G00

$55.23

3

CABLE, EXHAUST VALVE NO.2 This part replaces 11277-48G00-E00.

11277-48G00

$55.23

4

PIPE, EXHAUST FR | Includes Item(s) 5 - 7 This part replaces 14150-48G10.

14150-48G30

$309.93

5

COVER, EXH FR PIPE This part replaces 14168-48G00.

14168-48G20

$122.58

6

GROMMET

14795-10FA0

$5.58

7

CLAMP

09402-57511

$13.30

8

PIPE, EXHAUST RR | Includes Item(s) 9 - 11 This part replaces 14160-48G00.

14160-48G20

$367.98

9

COVER, EXH RR PIPE This part replaces 14169-48G00.

14169-48G20

$115.65

10

GROMMET

14795-10FA0

$5.58

11

CLAMP

09402-67501

$38.88

12

GASKET

14181-10F00

$12.91

13

COVER, REAR UPPER

14260-48G00

$156.07

14

COVER, EXHAUST VALVE This part replaces 14280-48G00-E00.

14280-48G00

$24.95

15

MUFFLER, FR | Includes Item(s) 16 - 24

14305-48G12-H01

Unavailable

16

COVER, EXH FR

14170-48G00

Unavailable

17

COVER, EXH RR

14180-48G10

Unavailable

18

COVER, LOW MUF FR

14315-48G00

$156.07

19

BOLT

09106-06064

$6.02

20

WASHER

09160-06141

Unavailable

21

SPACER

09180-06349

Unavailable

22

CUSHION (8.4X18X6)

09320-08066

$8.24

23

CLAMP

09402-67501

$38.88

24

CLAMP

09402-57511

$13.30

25

BODY, MUFFLER RR | Includes Item(s) 26 - 27

14340-48G10-H01

Unavailable

26

COVER, UP MUFFLER FR

14344-48G00

Unavailable

27

GROMMET

14795-10FA0

$5.58

28

BRACKET,MUF SPRT

14410-48G00

$245.72

29

CLAMP This part replaces 14459-48G00-E00.

14459-48G00

Unavailable

30

CONNECTOR, MUFFLER This part replaces 14771-42F30.

14771-42F31

$27.33

31

.PROTECTOR, FRONT This part replaces 14780-48G00.

14780-48G01

$37.48

32

PROTECTOR, LOWER This part replaces 14790-48G00.

14790-48G10

$31.43

33

BOLT (8X35)

09103-08365

$3.91

34

BOLT (6X12) This part replaces 09106-06075-A05.

09106-06075

$2.48

35

BOLT (8X25)

09106-08165

$4.03

36

SCREW (6X10)

09139-06122

$3.04

37

WASHER (8.5X33X1.5) This part replaces 09160-08140-A05.

09160-08146

$2.60

38

SPACER This part replaces 09180-08156-A05.

09180-08156

$6.70

39

CUSHION

09320-12049

$10.68

40

BOLT,STUD

01411-0820A

Unavailable

41

BOLT (8X16)

01550-0816A

$2.32

42

BOLT (8X16) This part replaces 09103-08283-A05.

09103-08570

$2.34

43

BOLT

01550-0845A

$3.14

44

BOLT

07120-0516A

$2.28

45

NUT

08316-1008A

$2.45

46

NUT

08361-2508A

$1.97
