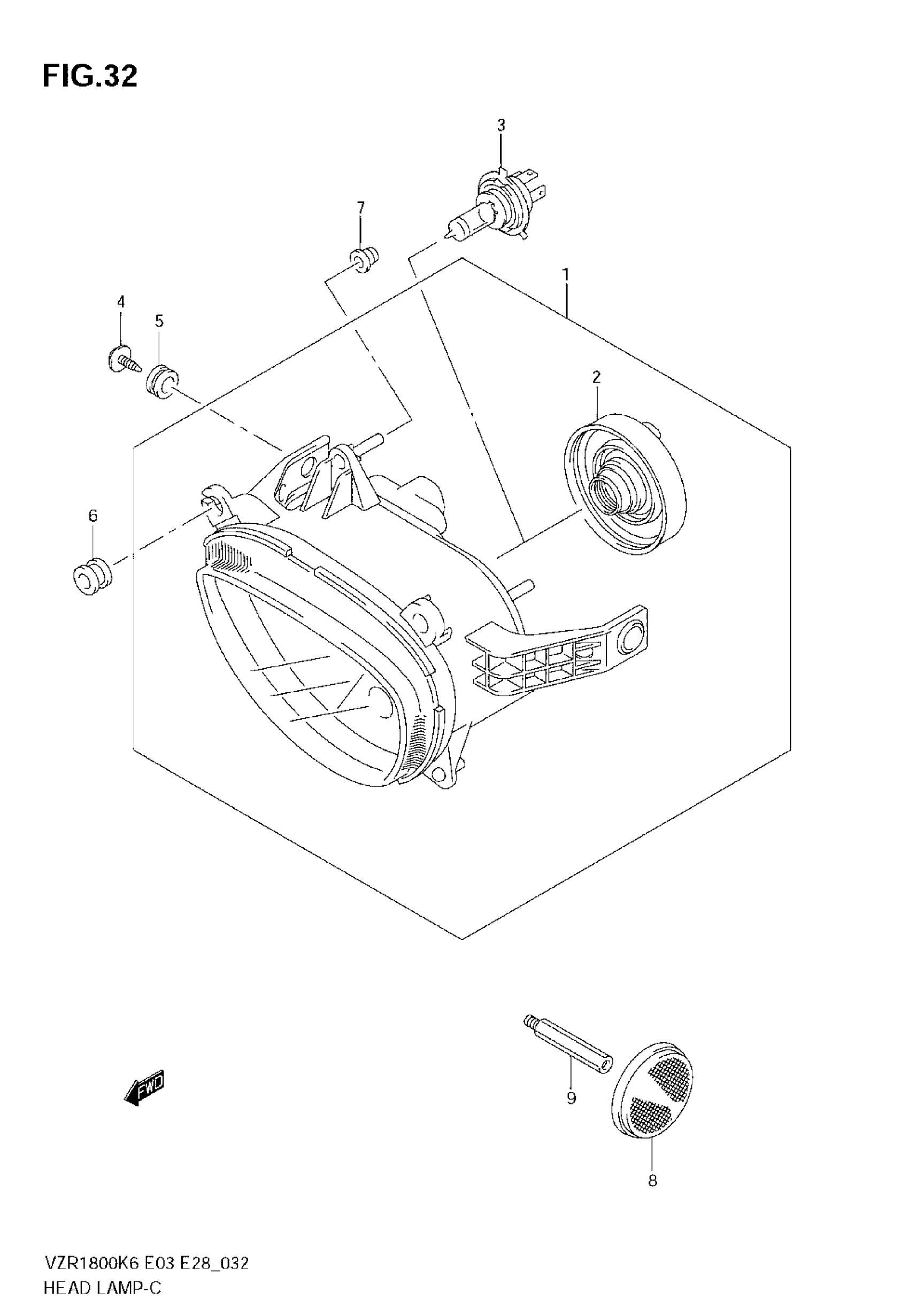

Suzuki VZR1800 (2009) HEADLAMP (VZR1800K6/K7/K8,VZR1800ZK7/ZK8) Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 This part replaces 35100-48G30-999.

35100-48G31-999

$381.52

2

COVER

35173-14G00

$12.74

3

BULB (12V60/55W,H4)

09471-12060

$23.37

4

SCREW, HEADLAMP

09136-05062

$2.25

5

CUSHION, HEADLAMP

09320-09016

$2.01

6

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.03

7

CUSHION, HEADLAMP

09320-09051

$5.75

8

REFLEX REFLECTOR ASSY, FR SIDE | MODEL K6/K7

35950-14A00

$16.66

8

REFLEX REFLECTOR ASSY, FR SID | MODEL K8/K9 This part replaces 35950-14A10.

35950-14A11

$14.56

9

BOLT, FRONT SIDE REFLECTOR

09119-06104

$16.13
