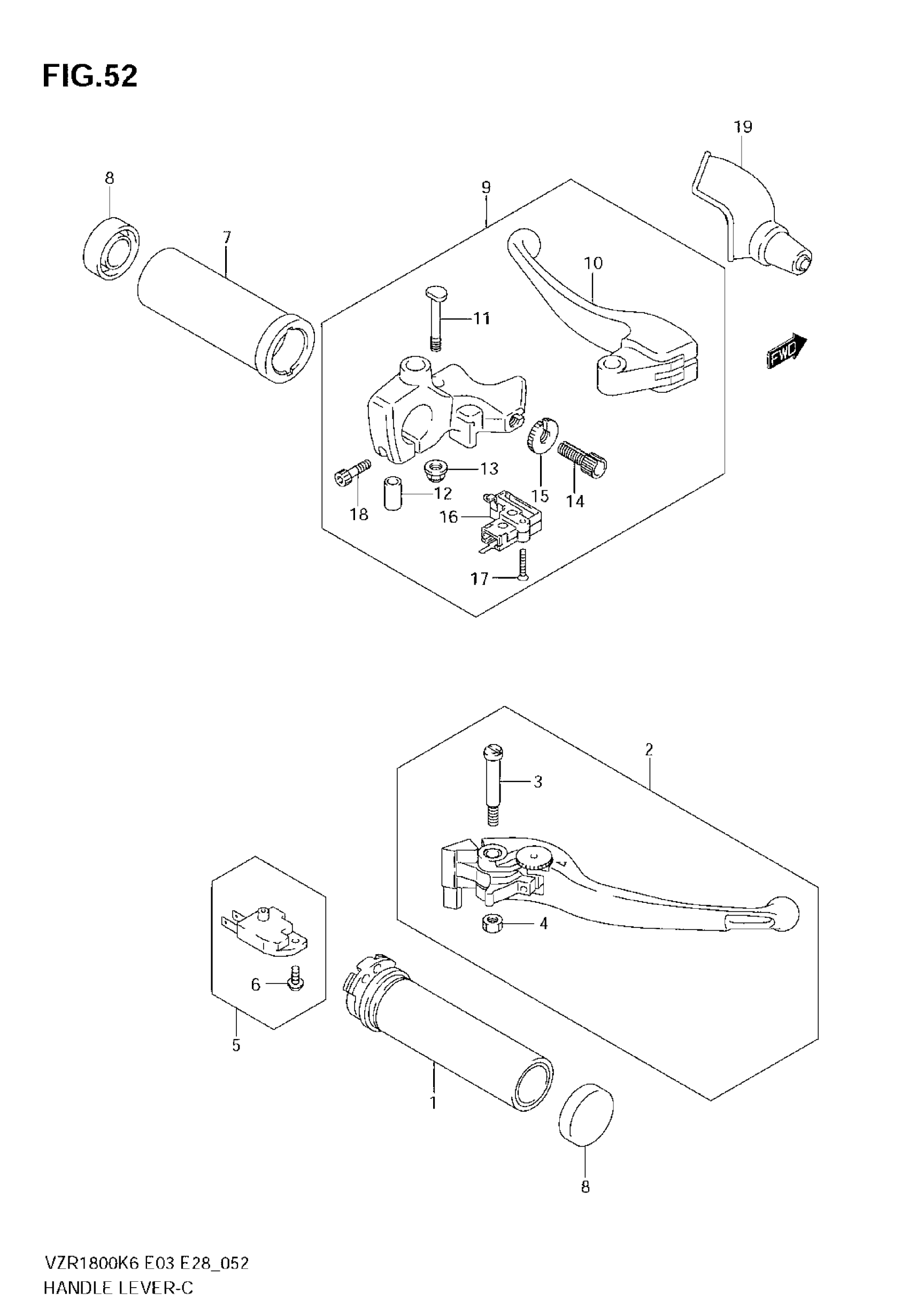

Suzuki VZR1800 (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP COMP,THROT | MODEL K6/K7 This part replaces 57110-26D00.

57110-26D01

$51.32

1

GRIP,THROTTLE | MODEL K8/K9 This part replaces 57110-26D10.

57110-26D11

$39.60

2

LEVER ASSY, BRAKE | MODEL K6/K7/K8

57300-48G00

$86.80

2

LEVER ASSY, BRAKE | MODEL K9; Includes Item(s) 3 - 4

57300-48G10

$47.10

3

BOLT, PIVOT

57431-48G00

$10.42

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

8

CAP, GRIP END

57216-38A00

$6.61

9

LEVER ASSY,CLUT | MODEL K6/K7/K8 This part replaces 57500-48G00.

57500-48G03

$92.92

9

LEVER ASSY,CLUTCH | MODEL K9; Includes Item(s) 10 - 18 This part replaces 57500-48G10.

57500-48G14

$109.17

10

LEVER, CLUTCH | MODEL K6/K7/K8

57621-48G00

$36.83

10

.LEVER, CLUTCH | MODEL K9 This part replaces 57621-48G10.

57621-48G11

$32.15

11

BOLT, PIVOT

57531-48G00

$42.35

12

SPACER

57623-48G00

$33.85

13

NUT

08319-3106B

$2.47

14

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$10.66

15

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$7.67

16

.SWITCH,CLUTCH | MODEL K6/K7/K8

57560-05A00

$11.12

16

.SWITCH ASSY,CLUTCH | MODEL K9

57560-05A10

$29.04

17

SCREW

02112-0320B

$4.61

18

BOLT

07130-0620A

$2.50

19

COVER,CLUTCH LE | MODEL K6/K7/K8 This part replaces 57541-48G00.

57541-48G01

$14.47

19

COVER,CLUTCH LEVER | MODEL K9 This part replaces 57541-48G10.

57541-48G11

$10.09
