2009 Suzuki VZR1800 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2009 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

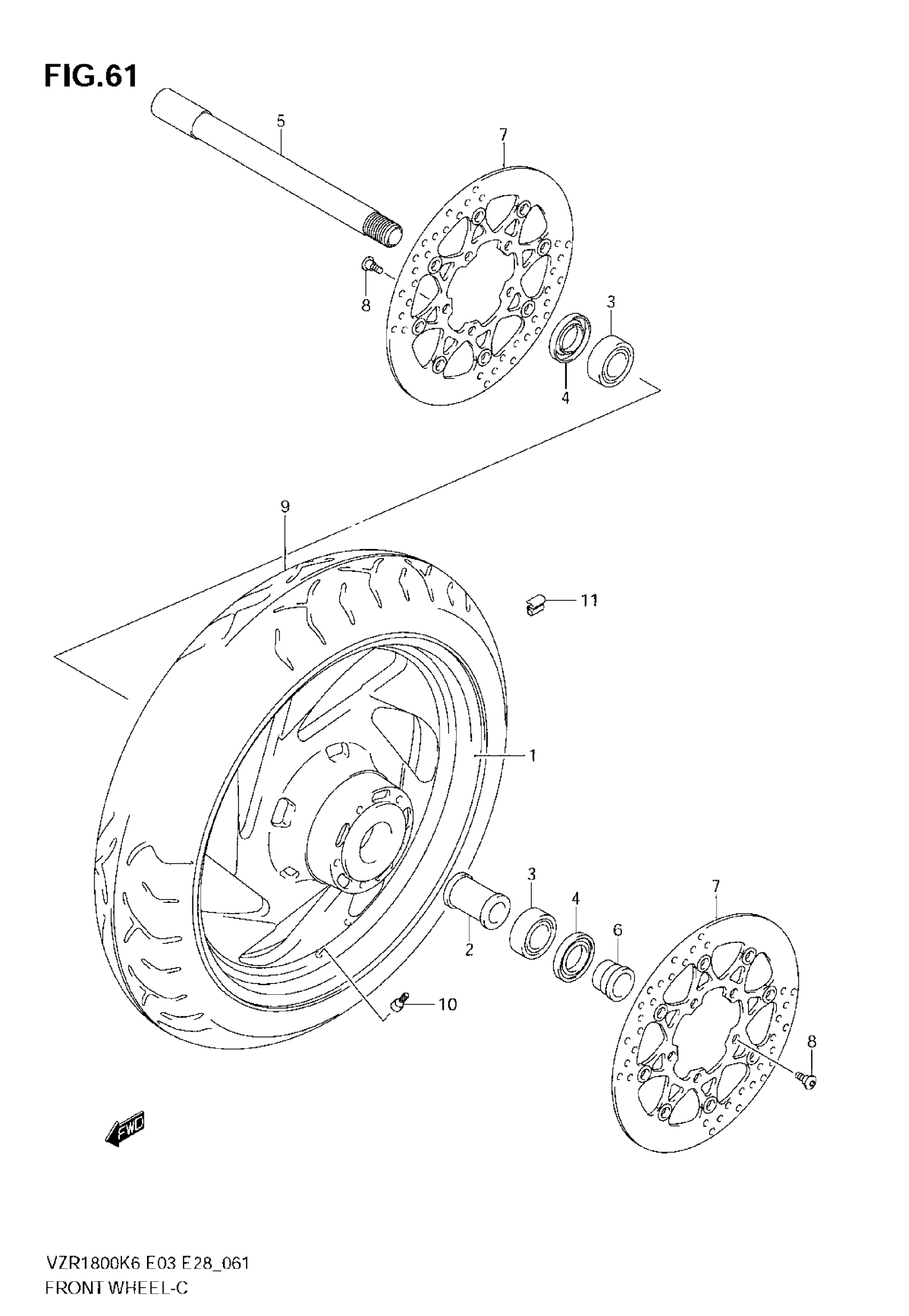

2009 Suzuki VZR1800 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,FR(18M/CX | VZR1800K6/K7/ZK7/NK8 This part replaces 54111-48G00-YD8.

54111-48G20-12Z

1
Out of stock

1

WHEEL,FR(18M/CX | VZR1800K8/ZK8/K9/NK9 This part replaces 54111-48G00-12Z.

54111-48G20-12Z

1
Out of stock

2

SPACER, FRONT WHEEL BEARING

54731-48G00

1
Out of stock

3

BEARING, FRONT WHEEL

09262-25072

2
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

2
Out of stock

5

AXLE, FRONT

54711-48G00

1
Out of stock

6

SPACER, FRONT AXLE, L

54741-48G00

1
Out of stock

7

DISC, FRONT BRAKE

59210-41G10

2
Out of stock

8

BOLT, DISC

09106-08160

10
Out of stock

9

TIRE,FR | D221FA This part replaces 55110-48G00.

55110-48G02

1
Out of stock

10

VALVE ASSY, WHEEL RIM

43130-24A00

1
Out of stock

11

BALANCER, WHEEL NO.1

43222-73H10

1
Out of stock

11

BALANCER, WHEEL NO.2

43224-73H10

1
Out of stock

11

BALANCER, WHEEL NO.3

43226-73H10

1
Out of stock
