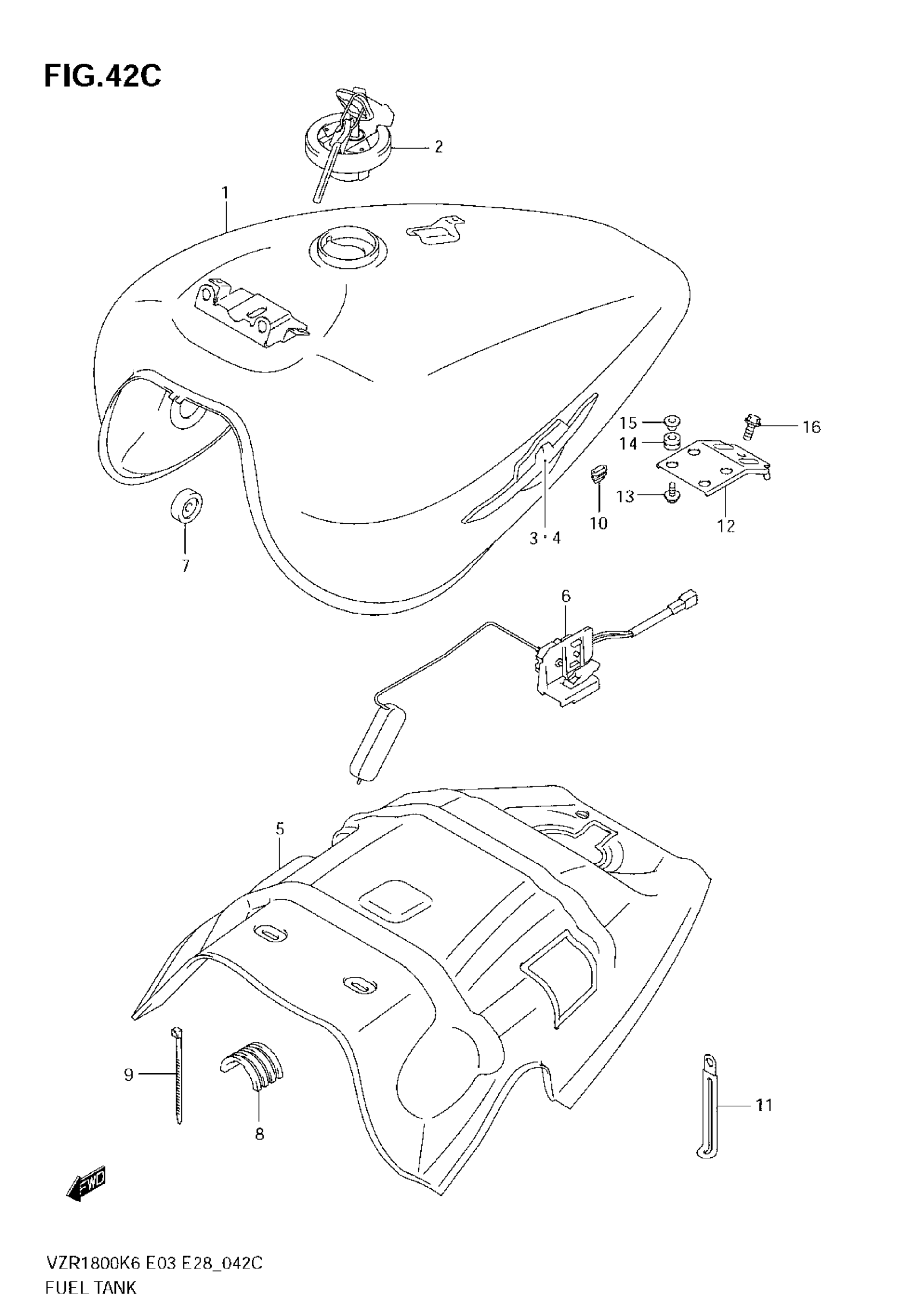

Suzuki VZR1800 (2009) FUEL TANK (MODEL K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-48G00-YAY

$1,744.17

1

TANK ASSY, FUEL (SILVER) | VZR1800 E3,E28

44100-48G00-YMD

Unavailable

1

TANK ASSY, FUEL (RED) | E3,E28

44100-48G00-YMK

Unavailable

1

TANK ASSY,FUEL( | E33 This part replaces 44100-48G20-YAY.

44110-48G20-13L

$1,202.47

1

TANK ASSY, FUEL (SILVER) | VZR1800 E33

44100-48G20-YMD

Unavailable

1

TANK ASSY, FUEL (RED) | E33

44100-48G20-YMK

Unavailable

2

CAP SET,FUEL TA | E3,E28 This part replaces 44200-39830.

44200-39832

$110.37

2

CAP SET,FUEL TA | E33 This part replaces 44200-39840.

44200-39841

$180.32

3

EMBLEM, FUEL TANK RH This part replaces 68111-48G00.

68111-48G01

$70.02

4

EMBLEM, FUEL TANK LH This part replaces 68121-48G00.

68121-48G01

$71.38

5

SHIELD, TANK HEAT

44191-48G10

$336.25

6

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION, FUEL TANK

44541-13E10

$26.73

9

CLAMP

09407-30402

$4.11

10

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.56

11

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

12

BRACKET, REAR

44530-48G00

Unavailable

13

BOLT

09116-06192

$2.30

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

SPACER

09169-06062

$2.50

16

BOLT (8X12)

01550-0812A

$2.32
