2009 Suzuki VZR1800 Fuel Pump Diagram

← All diagrams

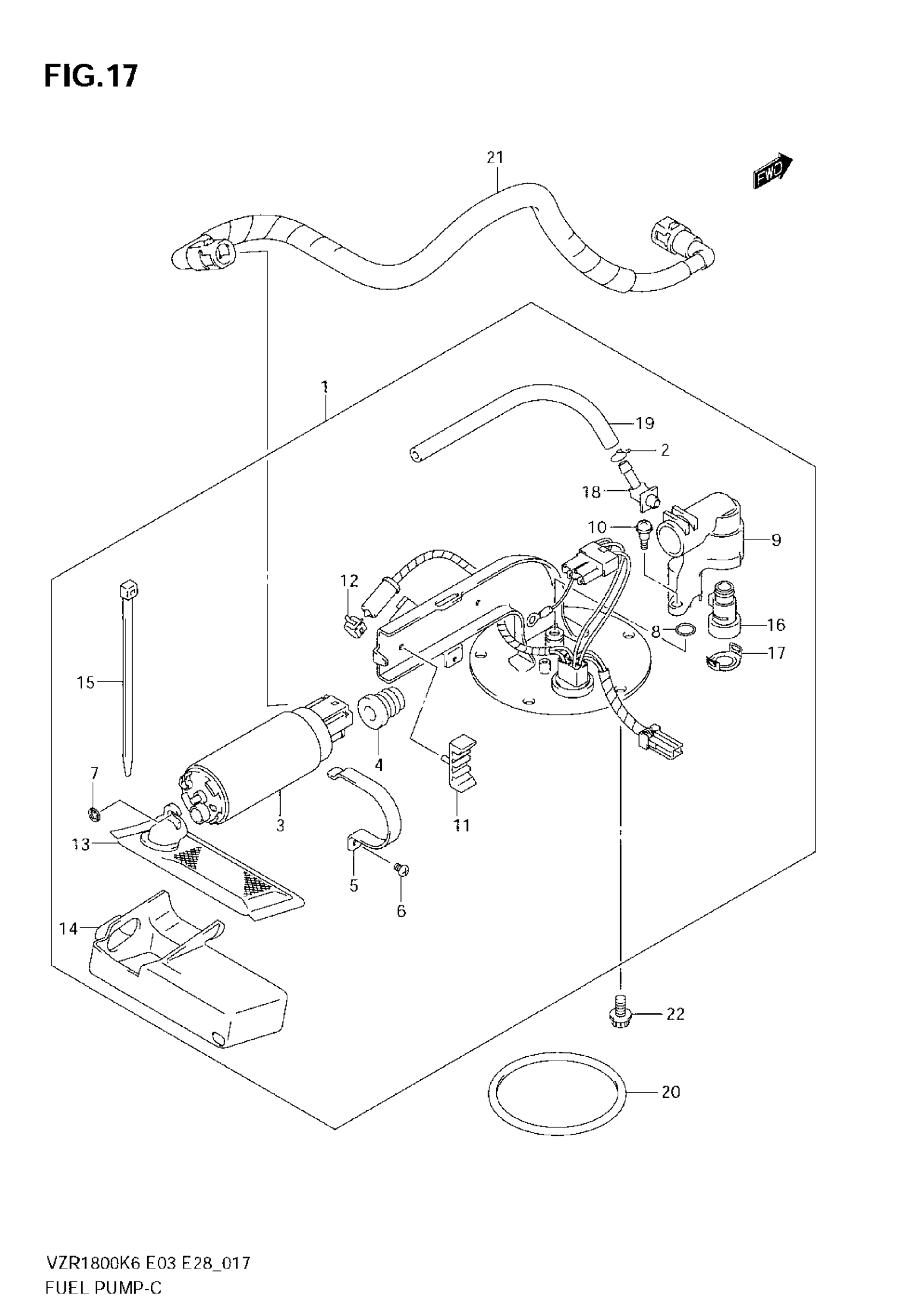

Find the part on the Fuel Pump diagram for your 2009 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZR1800 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

CLIP

13693-24F00

1

$3.62

In stock

3

PUMP

15110-48G00

1

$508.25

In stock

4

1

$23.10

In stock

5

HOLDER

15115-14G00

1
Out of stock

6

SCREW

15116-48G00

1

$6.30

In stock

7

PLATE

15119-14G00

1

$6.08

In stock

8

O RING

15125-48G00

1

$16.10

In stock

9

ADAPTER

15131-48G00

1
Out of stock

10

SCREW

15135-48G00

1
Out of stock

11

INSULATOR

15141-48G00

2
Out of stock

12

CLAMP

15175-48G00

1
Out of stock

13

FILTER

15420-48G00

1

$113.33

In stock

14

COVER

15425-48G00

1

$72.68

In stock

15

BAND

15426-48G00

1

$14.47

In stock

16

REGULATOR

15610-48G00

1

$224.25

In stock

17

CLIP

15613-48G00

1
Out of stock

18

JOINT

15614-48G00

1
Out of stock

19

HOSE

15615-48G00

1

$28.58

In stock

20

O-RING

15201-35F00

1

$27.52

In stock

21

1

$111.05

In stock

22

BOLT

07120-0612A

5
Out of stock
← Evapo System Fuel Tank →
