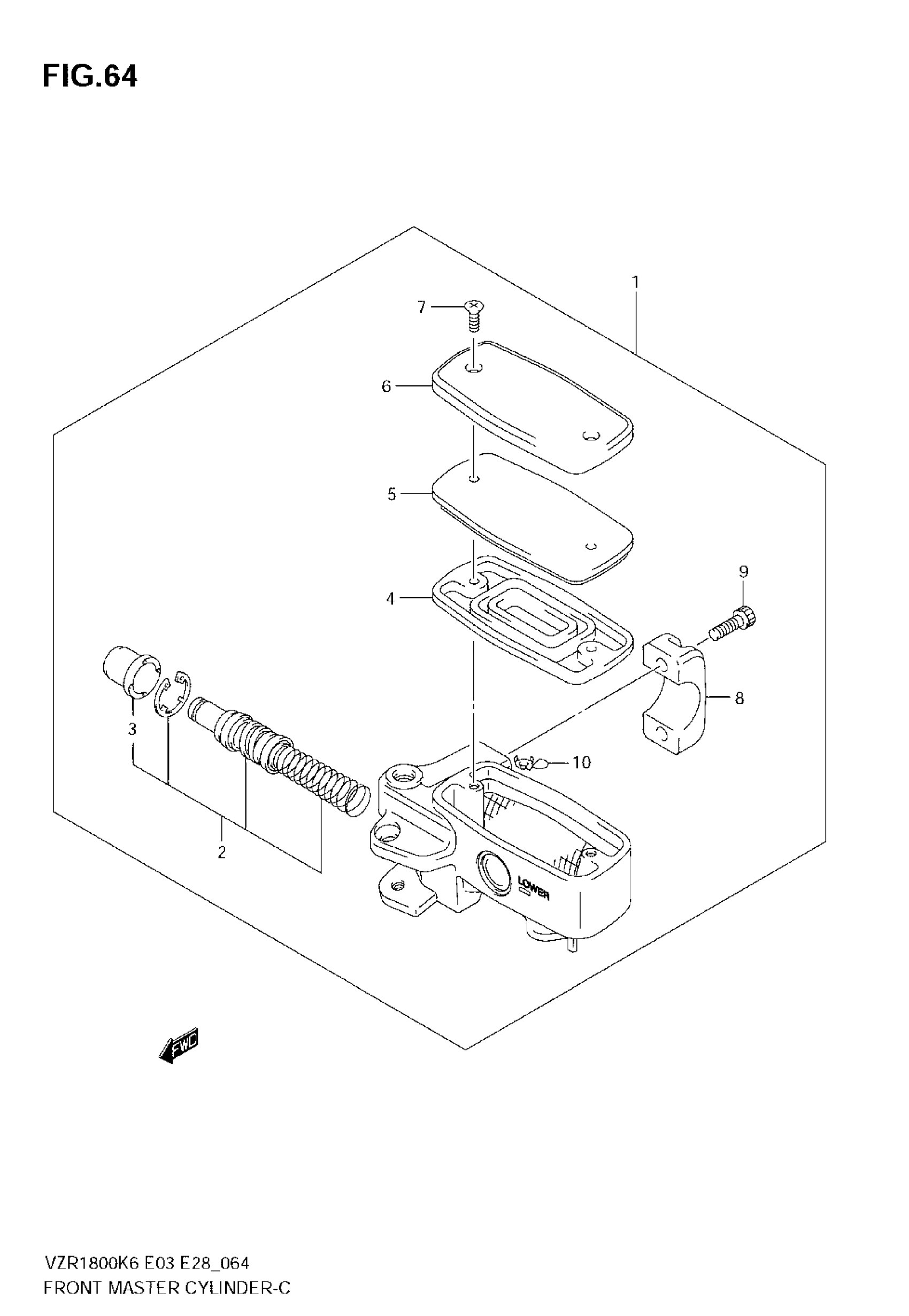

Suzuki VZR1800 (2009) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10 This part replaces 59600-10F60.

59600-10F61

$468.58

2

PISTON/CUP SET

59601-45810

$61.78

3

BOOT

59666-44300

$5.30

4

DIAPHRAGM

59667-10F00

$11.40

5

PLATE, DIAPHRAGM

57437-10F00

$23.73

6

CAP

59669-10F10

$64.25

7

SCREW

02122-04127

$1.97

8

HOLDER

59671-10F00

$55.50

9

BOLT

07130-06207

$2.80

10

PROTECTOR

59664-32F00

$13.20
