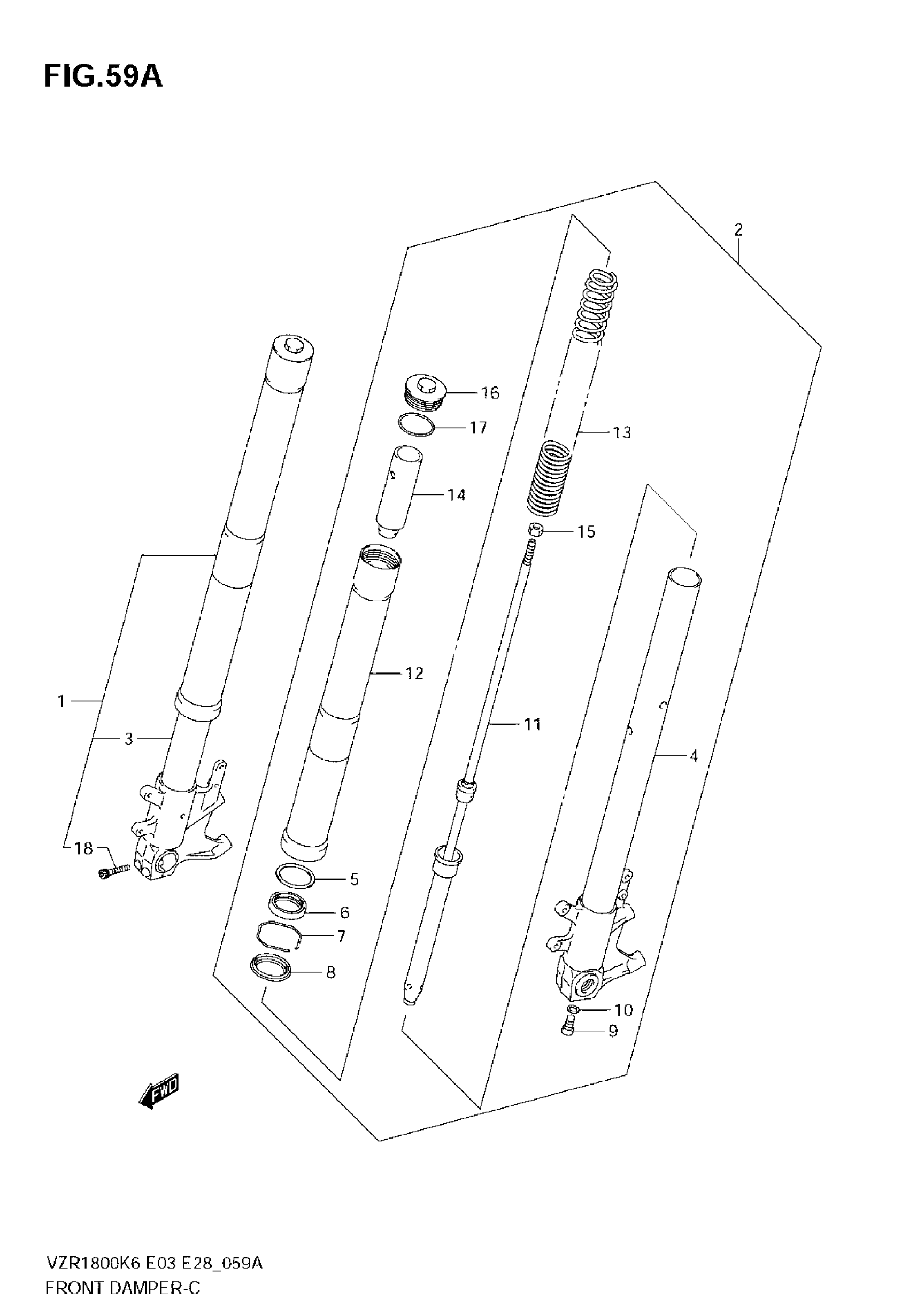

Suzuki VZR1800 (2009) FRONT DAMPER (VZR1800ZK7/K8/NK8/ZK8/K9/NK9) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-48G10

Unavailable

2

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 3 - 18

51104-48G10

Unavailable

3

TUBE, INNER RH

51110-48G00

$912.22

4

TUBE, INNER LH

51120-48G00

$912.22

5

WASHER

51158-27C00

$6.19

6

SEAL, OIL

51153-48G00

$25.17

7

RING, STOPPER

51156-27C00

$5.98

8

SEAL, DUST

51173-42F00

$26.58

9

BOLT

51147-40300

$5.38

10

GASKET

51148-40300

$2.03

11

CYLINDER

51146-48G10

Unavailable

12

TUBE, OUTER

51130-48G00

$655.12

13

SPRING, FRONT

51171-48G10

$122.79

14

.SPACER, SPRING

51176-48G10

$27.40

15

.NUT, ROD

51352-13A60

$3.03

16

CAP

51351-48G10

$108.15

17

..O RING This part replaces 51117-48G00.

51117-48G01

$3.05

18

BOLT, RH

51381-48E10

$8.29
