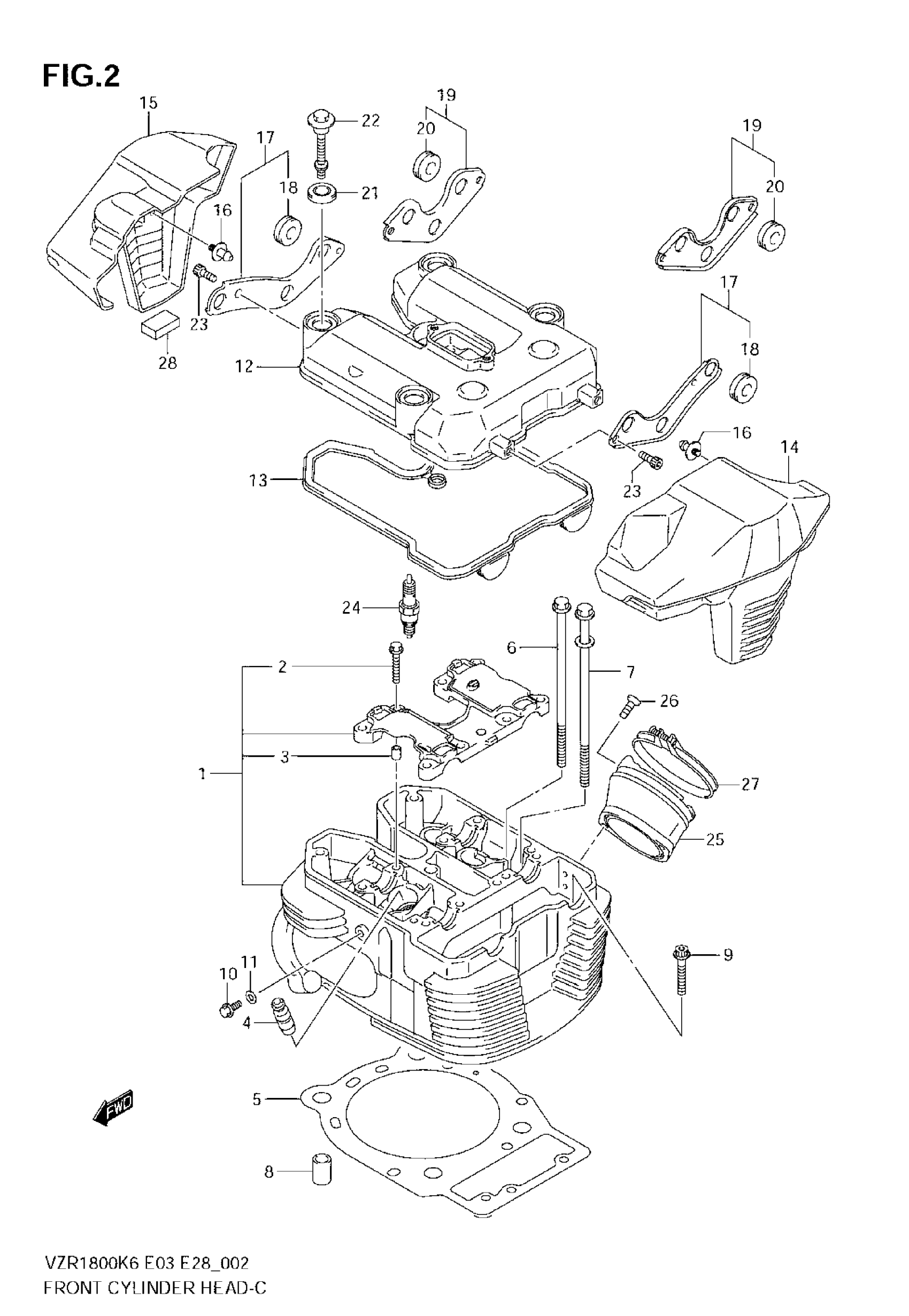

Suzuki VZR1800 (2009) FRONT CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | MODEL K6

11101-48G00

Unavailable

1

HEAD ASSY, CYLINDER FRONT | MODEL K7/K8/K9; Includes Item(s) 2 - 3

11101-48G10

$1,757.87

2

BOLT (6X39) This part replaces 09103-06026-A05.

09103-06026

$1.98

3

PIN

09206-08001

$1.78

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$31.95

5

GASKET

11141-48G00

$46.22

6

BOLT (8X180)

09103-08415

$11.60

7

BOLT (8X190)

09103-10396

$26.28

8

PIN

04211-13189

$2.19

9

BOLT

07120-0670A

Unavailable

10

BOLT, OIL GALLERY | MODEL K7/K8/K9

09103-06222

$2.26

11

GASKET | MODEL K7/K8/K9

09168-06023

$2.35

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$27.05

14

CAP, HEAD COVER NO.1 | MODEL K6

11174-48G00

$123.73

14

CAP, HEAD COVER NO.1 | MODEL K7/K8/K9

11174-48G10

Unavailable

15

CAP, HEAD COVER NO.2 | MODEL K6

11175-48G00

$121.43

15

CAP, HEAD COVER NO.2 | MODEL K7/K8/K9

11175-48G10

Unavailable

16

BOLT | MODEL K7/K8/K9

11176-48G00

Unavailable

17

BRACKET,HEAD COVER CAP | MODEL K6; Includes Item(s) 18 This part replaces 11180-48G00-E00.

11180-48G01

$9.72

18

CUSHION (8X22X7) | MODEL K6 This part replaces 09320-08013.

09320-08509

$1.93

19

BRACKET | MODEL K7/K8/K9; Includes Item(s) 20 This part replaces 11180-48G10.

11180-48G20

$15.93

20

CUSHION (8X22X7) | MODEL K7/K8/K9 This part replaces 09320-08013.

09320-08509

$1.93

21

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

22

BOLT (6X52)

09111-06091

$22.83

23

BOLT

07130-0612A

$2.50

24

SPARK PLUG, CR8EK (NGK)

09482-00412

$10.62

24

SPARK PLUG, U24ETR (DENSO)

09482-00413

$13.17

24

SPARK PLUG, CR9EK (NGK) | OPT

09482-00410

$11.59

24

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

24

SPARK PLUG, CR7EK (NGK) | OPT

09482-00414

$12.50

24

SPARK PLUG, U22ETR (DENSO) | OPT

09482-00415

Unavailable

25

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$97.90

26

SCREW (6X20.5)

09120-06008

$3.05

27

CLAMP

09402-82208

$6.17

28

CUSHION,HEAD COVER CAP | MODEL K7/K8/K9

11177-48G00

Unavailable
