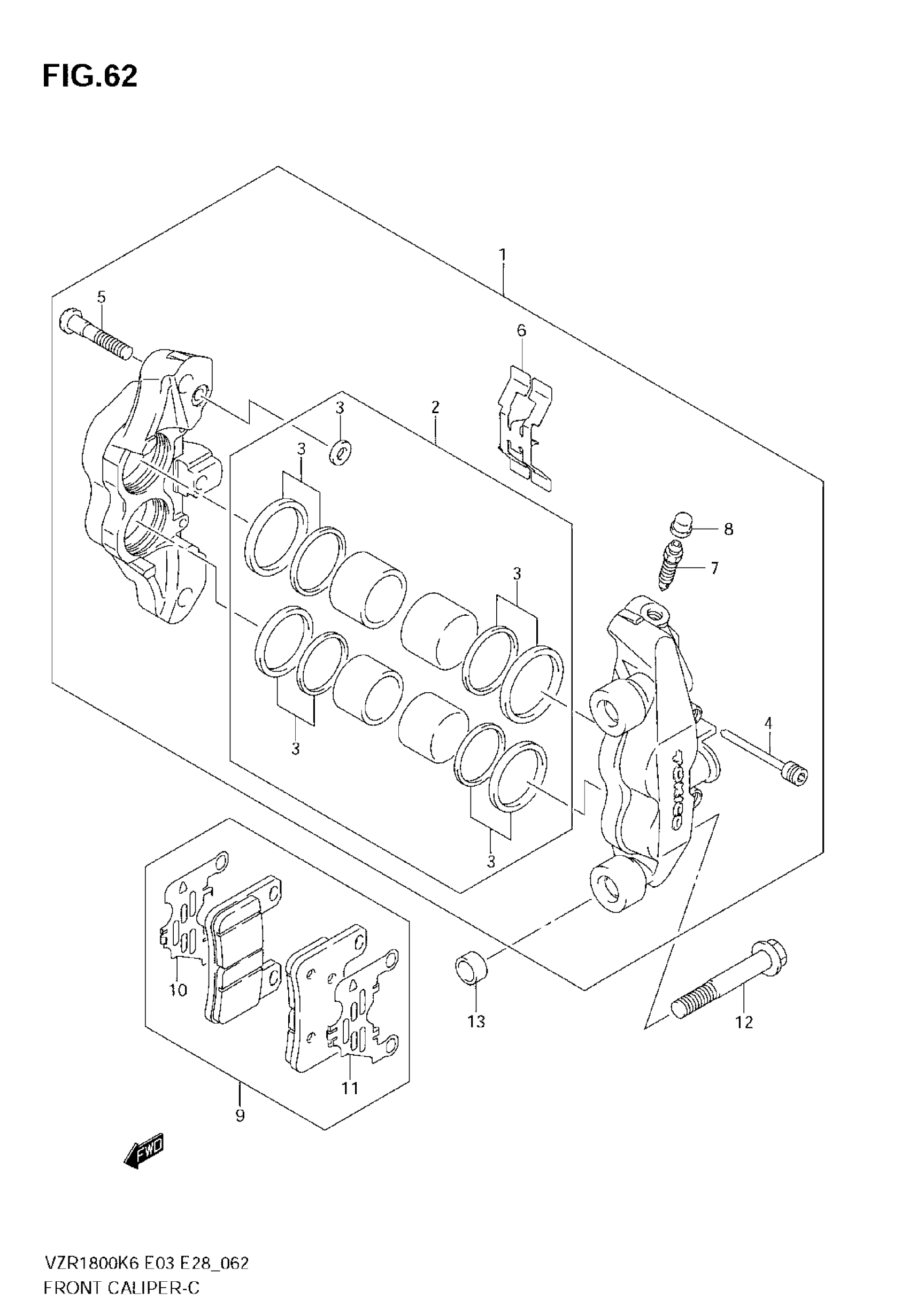

Find the part on the Front Caliper diagram for your 2009 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VZR1800 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G10-999

1
Out of stock

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 8

59300-41G10-999

1
Out of stock

2

PISTON SET

59100-35870

2
Out of stock

3

2

$39.06

In stock

4

.PIN This part replaces 59141-41G00.

59141-41G10

4
Out of stock

5

BOLT

59145-18G00

6
Out of stock

6

SPRING, PAD

59151-29G00

2
Out of stock

7

BLEEDER

59121-18410

2

$8.70

In stock

8

CAP, BLEEDER PLUG

55156-66310

2

$5.15

In stock

9

PAD & SHIM SET | Includes Item(s) 10 - 11

59100-29850

2
Out of stock

10

SHIM, PAD A

59171-41G00

1
Out of stock

11

SHIM, PAD B

59172-41G00

1
Out of stock

12

BOLT

09103-10392

4

$4.74

In stock

13

PIN, CALIPER

59151-41G00

4
Out of stock
