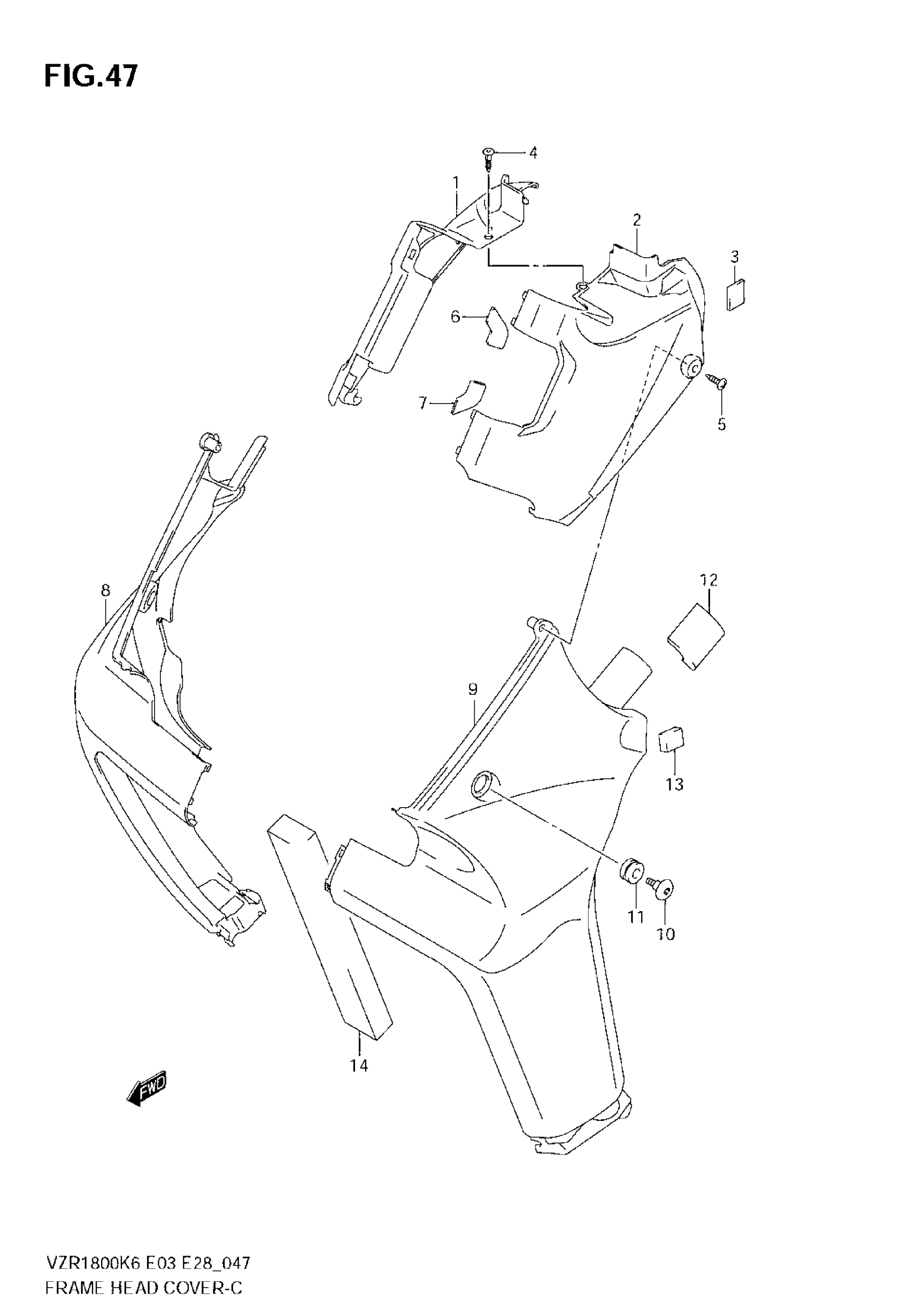

Suzuki VZR1800 (2009) FRAME HEAD COVER (VZR1800K6/K7) Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK) This part replaces 47351-48G00-YAY.

47350-48G00-YAY

Unavailable

1

COVER,FRAME HEA | MODEL K6 This part replaces 47351-48G00-YD8.

47350-48G00-YD8

$217.83

1

CVR,FRAME HEAD, | MODEL K6 This part replaces 47351-48G00-YLD.

47350-48G00-YLD

Unavailable

1

COVER,FRAME HEA | MODEL K7 This part replaces 47351-48G00-YC3.

47350-48G00

$61.53

1

NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 47351-48G00-YHL.

47350-48G00-YHL

Unavailable

2

COVER, FRAME HEAD LH (BLACK)

47361-48G00-YAY

$247.13

2

COVER, FRAME HEAD LH (SILVER) | MODEL K6

47361-48G00-YD8

Unavailable

2

COVER, FRAME HEAD LH (BLUE) | MODEL K6

47361-48G00-YLD

Unavailable

2

COVER,FRAME HEA | MODEL K7 This part replaces 47361-48G00-YC3.

47361-48G00

Unavailable

2

COVER,FRAME HEA | MODEL K7 This part replaces 47361-48G00-YHL.

47361-48G00

Unavailable

3

CUSHION

17798-39G00

$6.12

4

CLIP (BLACK)

09409-06314-5PK

$2.80

5

SCREW

03541-0516A

$1.37

6

TAPE, UPPER LH

47352-48G00

Unavailable

7

TAPE, LOWER LH

47353-48G01

Unavailable

8

COVER, FRAME BODY RH (BLACK)

47551-48G00-YAY

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL K6 This part replaces 47551-48G00-YD8.

47551-48G00-13L

Unavailable

8

COVER, FRAME BODY RH (BLUE) | MODEL K6

47551-48G00-YLD

Unavailable

8

COVER, FRAME BODY RH (WHITE) | MODEL K7

47551-48G00-YC3

Unavailable

8

COVER, FRAME BODY RH (RED) | MODEL K7

47551-48G00-YHL

Unavailable

9

COVER, FRAME BODY LH (BLACK)

47561-48G00-YAY

$351.50

9

NO DESCRIPTION AVAILABLE | MODEL K6 This part replaces 47561-48G00-YD8.

47561-48G00-13L

Unavailable

9

COVER, FRAME BODY LH (BLUE) | MODEL K6

47561-48G00-YLD

Unavailable

9

NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 47561-48G00-YC3.

47561-48G00-13L

Unavailable

9

COVER, FRAME BODY LH (RED) | MODEL K7

47561-48G00-YHL

Unavailable

10

SCREW

09139-06126

$3.65

11

CUSHION

09320-09016

$1.97

12

CUSHION, UPPER

63191-25C00

$2.88

13

CUSHION, CENTER

17798-39G00

$6.12

14

CUSHION, LOWER RH

47552-48G00

$23.15
