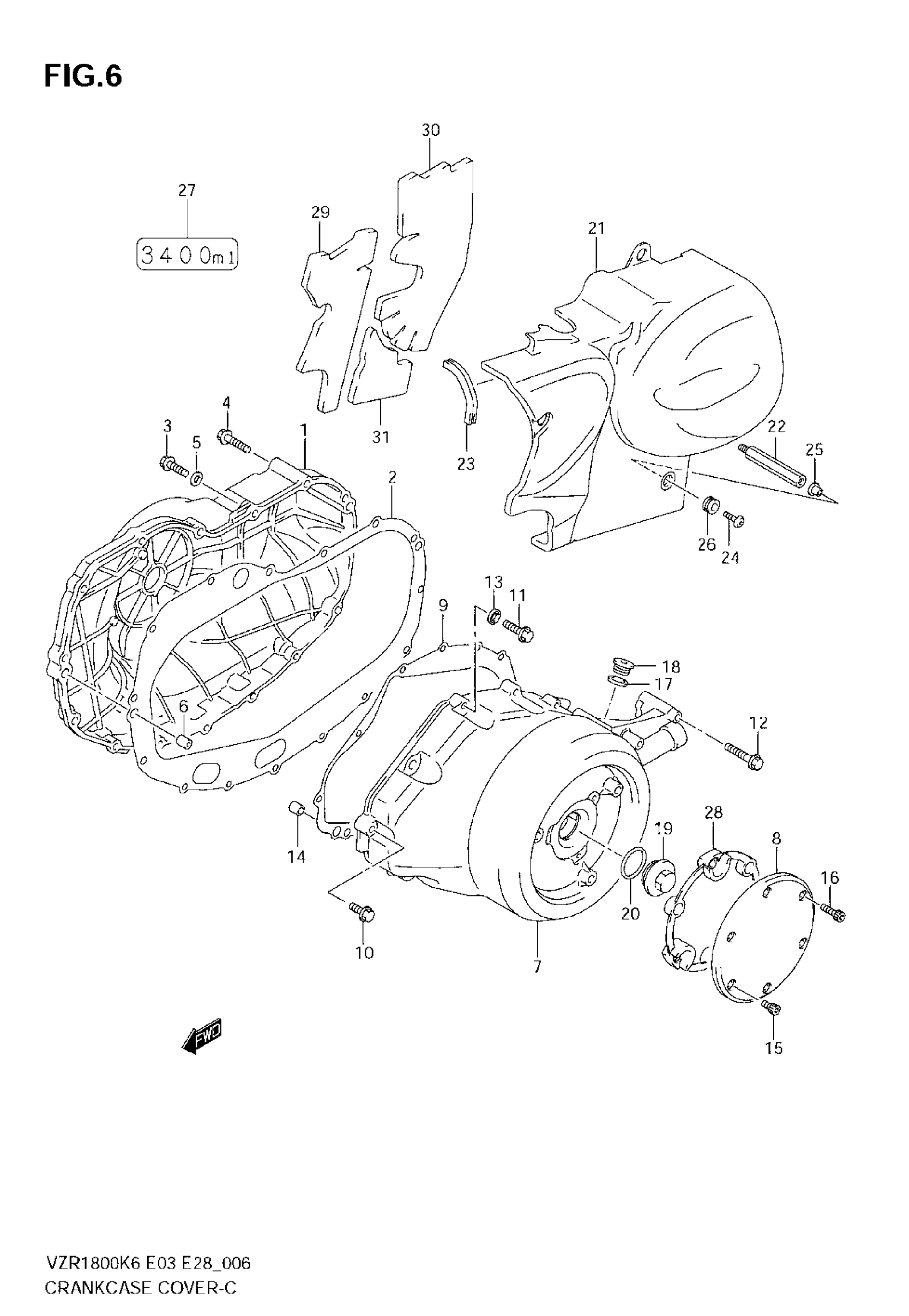

Suzuki VZR1800 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-48G00

Unavailable

2

GASKET

11482-48G00

$24.68

3

BOLT (6X30)

09103-06213

$2.47

4

BOLT (6X60)

09103-06261

$3.16

5

GASKET

09168-06023

$2.35

6

PIN

04211-09189

$1.65

7

COVER, MAGNETO

11351-48G00

$1,384.68

8

CAP

11352-48G00

$195.10

9

GASKET

11483-48G00

$18.50

10

BOLT (6X30)

09103-06213

$2.47

11

BOLT (6X50)

09103-06238

$2.66

12

BOLT (6X70)

09103-06225

$3.16

13

GASKET

09168-06023

$2.35

14

PIN

04211-09149

$1.65

15

BOLT | MODEL K6/K7

07130-06127

Unavailable

15

BOLT (6X10) | MODEL K8/K9 This part replaces 09106-06068.

09106-06076

$3.29

16

BOLT | MODEL K6/K7

07130-06207

$3.04

16

BOLT (6X20) | MODEL K8/K9

09106-06123

$2.42

17

GASKET

09168-16002

$1.91

18

PLUG, OIL DRAIN This part replaces 09248-16012-A05.

09248-16012

$4.64

19

PLUG, CRANKSHAFT HOLE

09259-30005

$9.73

20

O RING

09280-26006

$2.76

21

COVER, SECONDARY DRIVE | MODEL K6

11361-48G00

Unavailable

21

COVER, SECONDARY DRIVE | MODEL K7/K8/K9

11360-48G10

Unavailable

22

BOLT | MODEL K7/K8/K9

11372-48G00

$15.75

23

CUSHION,SIDE CO | MODEL K7/K8/K9 This part replaces 61135-95J00.

61135-95J01

$5.92

24

BOLT

09139-06028

$3.70

25

SPACER

09169-06062

$2.50

26

CUSHION

09320-09501

$2.03

27

NOTE, ENGINE OIL

68322-48G00

Unavailable

28

DAMPER,MAGNETO COVER CAP | MODEL K8/K9 This part replaces 11353-48G00.

11353-48G01

$23.95

29

DAMPER, SEC DRIVE COVER | MODEL K8/K9

11363-48G00

Unavailable

30

DAMPER, SEC DRIVE COVER | MODEL K8/K9

11364-48G00

$35.03

31

DAMPER, SEC DRIVE COVER | MODEL K8/K9

11365-48G00

Unavailable
