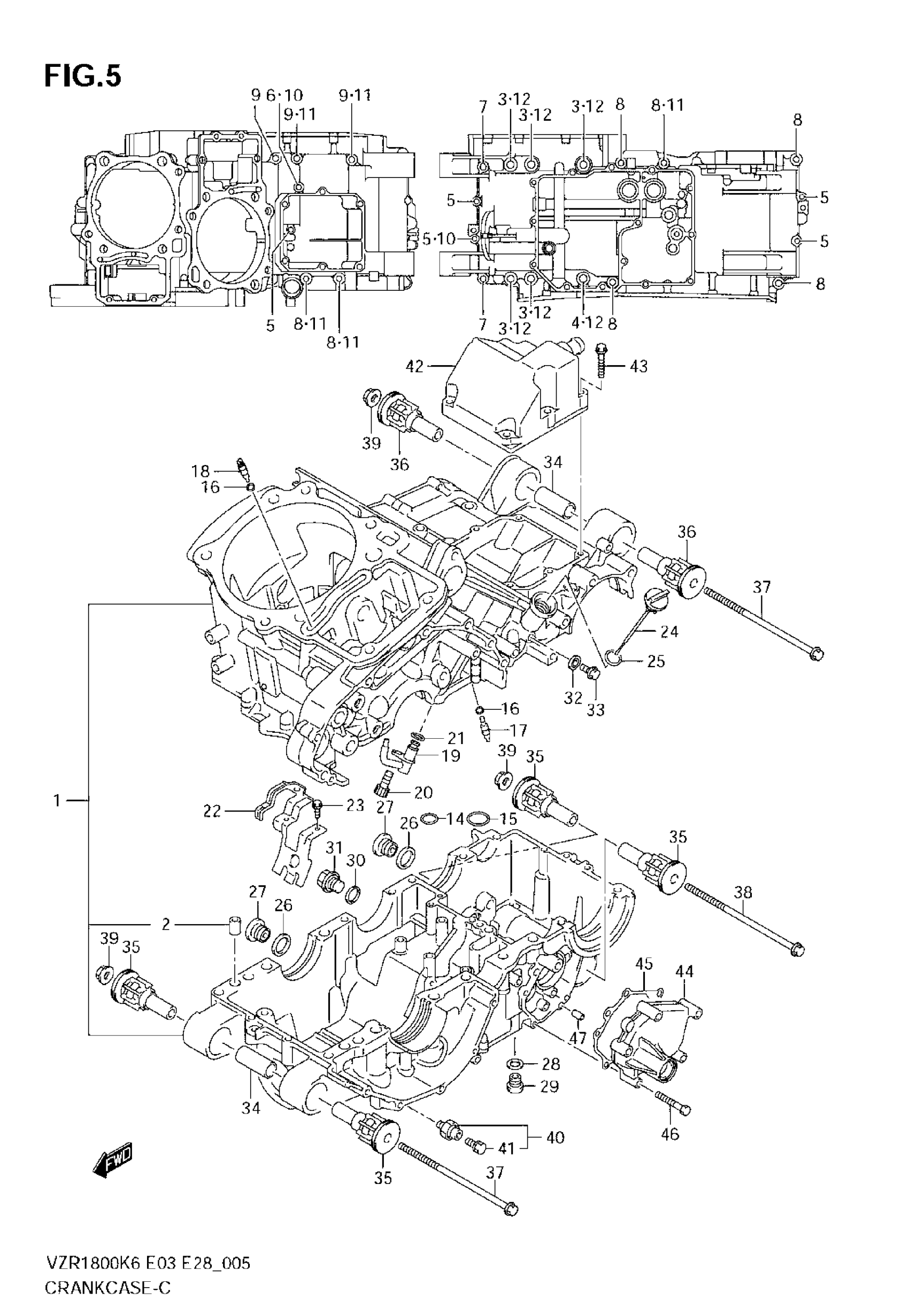

Suzuki VZR1800 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K6/K7 This part replaces 11300-48861.

11300-48881

$4,403.10

1

CRANKCASE SET | MODEL K8/K9; Includes Item(s) 2 - 13 This part replaces 11300-48862.

11300-48881

$4,403.10

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT (10X100)

09103-10408

Unavailable

4

BOLT (10X115)

09103-10406

Unavailable

5

BOLT

01547-0645B

$2.73

6

BOLT

01547-0670B

$3.29

7

BOLT

07130-0850B

Unavailable

8

BOLT

07130-0865B

$5.27

9

BOLT

07130-0885B

Unavailable

10

GASKET

09168-06023

$2.35

11

GASKET (8.2X14X1)

09168-08016

$1.65

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER, CRANK THRUST (RED) | SEE ILLUS ON FIG.8(B-10)

12228-48G00-0A0

$13.28

13

WASHER, CRANK THRUST (BLACK)

12228-48G00-0B0

Unavailable

13

WASHER, CRANK THRUST (BLUE)

12228-48G00-0C0

$13.28

13

WASHER, CRANK THRUST (GREEN)

12228-48G00-0D0

Unavailable

13

WASHER, CRANK THRUST (YELLOW)

12228-48G00-0E0

$13.28

13

WASHER, CRANK THRUST (WHITE)

12228-48G00-0F0

Unavailable

14

O RING, CRANKCASE (ID:7.8)

09280-08012

$3.68

15

O RING, CRANKCASE (ID:12.6)

09280-12009

$3.18

16

O RING, OIL GALLERY JET

09280-04004

$1.91

17

JET, OIL GALLERY MISSION

09493-80005

$16.25

18

JET, OIL GALLERY CYLINDER

09493-80005

$16.25

19

JET, PISTON COOLING

11390-48G00

$66.00

20

BOLT (6X12) This part replaces 09106-06075-A05.

09106-06075

$2.48

21

O RING

09280-05007

$1.92

22

PLATE, OIL SEPARATOR

11521-48G00

Unavailable

23

BOLT

01547-0612A

$2.03

24

GAUGE, OIL LEVEL

11971-48G01

$12.80

25

O RING

09280-17003

$1.65

26

GASKET

09168-16002

$1.91

27

PLUG, OIL DRAIN This part replaces 09248-16012-A05.

09248-16012

$4.64

28

GASKET

09168-14002

$2.26

29

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.98

30

GASKET

09168-12002

$1.59

31

PLUG (12X10) This part replaces 09247-12006-A05.

09247-12006

$2.82

32

GASKET

09168-06023

$2.35

33

PLUG, OIL GALLERY

01547-0612A

$2.03

34

SPACER

11611-48G00

Unavailable

35

BUSH

11652-10G00

$27.80

36

BUSH

11652-10G30

$24.62

37

BOLT (10X215)

09103-10041-A05

$10.40

38

BOLT (10X195) This part replaces 09103-10118-A05.

09103-10118

$11.56

39

NUT

08319-3110A

$2.73

40

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 41 This part replaces 37820-33D10.

37820-33D11

$25.13

41

BOLT

37822-33D00

$4.35

42

COVER, BREATHER

11330-48G00

Unavailable

43

BOLT

01547-0630A

$2.32

44

COVER, GEAR SHIFT

11371-48G00

Unavailable

45

GASKET

11485-48G00

$6.80

46

BOLT

01547-0645A

$2.42

47

PIN

04211-09149

$1.65
