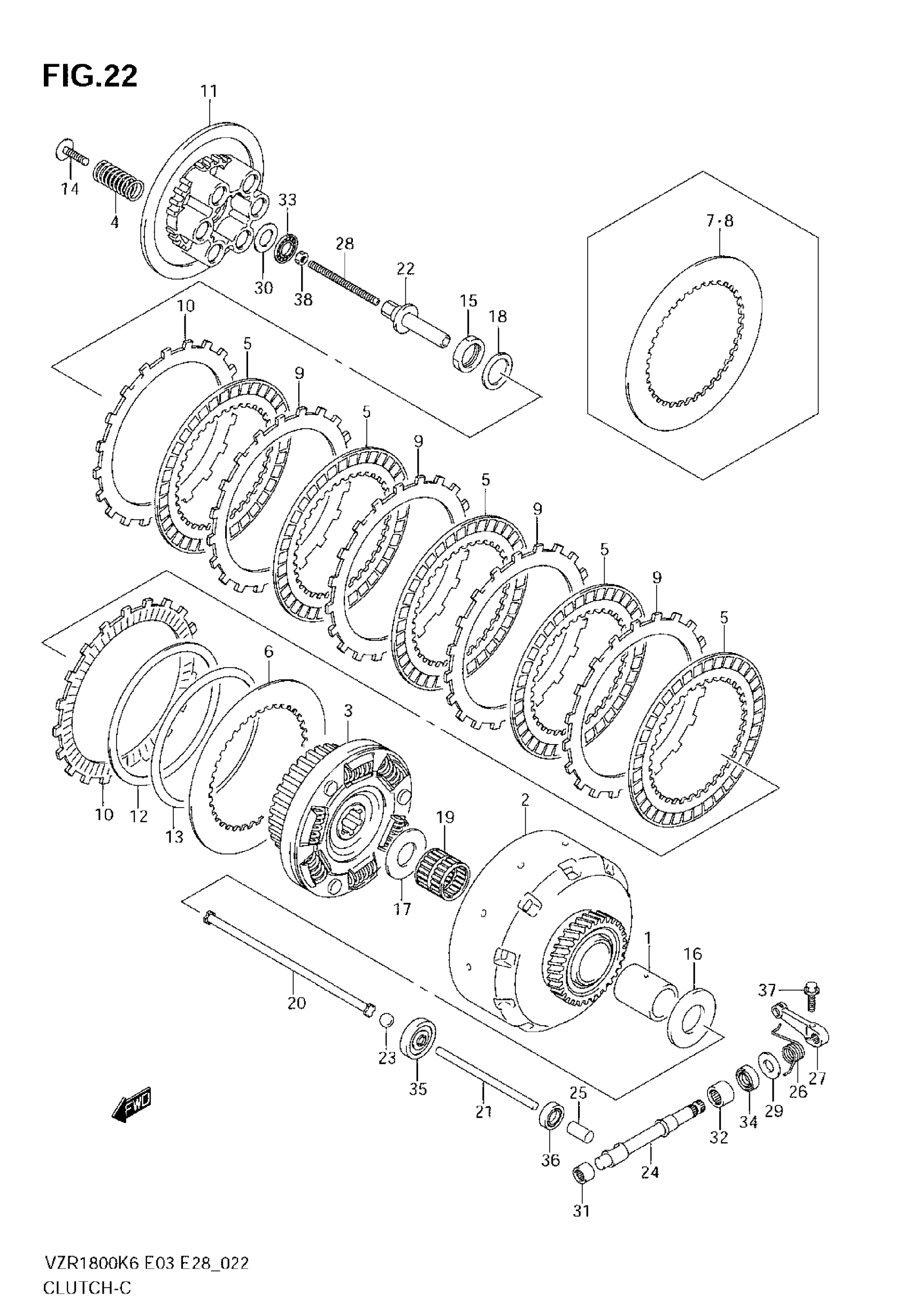

Suzuki VZR1800 (2009) CLUTCH Diagram

#

Description
Price

1

SPACER, PRIMARY DRIVE GEAR

21151-48G00

$51.63

2

GEAR ASSY, PRIMARY DRIVE | NT:33,MODEL K6/K7 This part replaces 21100-48G00.

21100-48G01

$383.37

2

GEAR ASSY, PRIMARY DRIVE | NT:33,MODEL K8/K9

21100-48G01

$383.37

3

HUB, CLUTCH

21410-48G00

$454.15

4

SPRING, CLUTCH

21413-48G00

$8.91

5

PLATE, CLUTCH DRIVE NO.1 | T:3.6

21441-48G00

$38.38

6

PLATE, CLUTCH DRIVE NO.2 (T:2.0) | T:2.0 This part replaces 21441-48G10.

21441-48G40

$18.06

7

PLATE, CLUTCH DRIVE NO.3 (T:2.3) | T:2.3 This part replaces 21441-48G20.

21441-48G50

$18.06

8

PLATE, CLUTCH DRIVE NO.4 (T:1.6) | T:1.6 This part replaces 21441-48G30.

21441-48G60

$18.06

9

PLATE, CLUTCH DRIVEN NO.1 | T:2.9

21451-48G00

$19.54

10

PLATE, CLUTCH DRIVEN NO.2 | T:3.4

21451-48G10

$35.20

11

DISC, CLUTCH PRESSURE

21462-48G00

$61.62

12

SEAT, WAVE WASHER | 109X124X1.6

21471-48G00

$13.59

13

WASHER, CLUTCH PLATE This part replaces 21472-48G00.

21472-48G10

$24.88

14

BOLT, CLUTCH SPRING

21482-41G00

$2.81

15

NUT, CLUTCH SLEEVE HUB

09159-24010

$12.27

16

.WASHER (25X50X2.5) | 25X50X2.50

09160-25056

$10.94

17

.WASHER (25X50X2.5) | 25X50X2.50

09160-25056

$10.94

18

WASHER, CLUTCH SLEEVE HUB WAVE | MODEL K6/K7

09164-24006

$3.52

18

WASHER, CLUTCH SLEEVE HUB WAVE | MODEL K8/K9

09164-20008

$5.00

19

BEARING, PRIMARY DRIVE | 32X37X38.3

09263-32020

$50.87

20

ROD, CLUTCH

23110-24F00

$21.87

21

ROD, CLUTCH PUSH, L

23111-48G00

$22.30

22

PIECE, CLUTCH PUSH

23121-41G00

$55.32

23

BALL, CLUTCH PUSH

23122-02FR0

$100.95

24

CAMSHAFT, CLUTCH RELEASE This part replaces 23122-48G00-A05.

23122-48G00

$66.67

25

CAP, CLUTCH PUSH ROD This part replaces 23123-41G00-A05.

23123-41G00

$10.46

26

SPRING, CLUTCH RELEASE RETURN This part replaces 23125-48G00-A05.

23125-48G00

$4.47

27

ARM, CLUTCH RELEASE This part replaces 23271-48G00-A05.

23271-48G00

$86.48

28

SCREW, CLUTCH PUSH This part replaces 09134-06015-A05.

09134-06015

$6.44

29

WASHER, CLUTCH PUSH | 10.5X24X1.0 This part replaces 09160-10020-A05.

09160-10020

$1.93

30

WASHER, CLUTCH PUSH PIECE | 15.5X28X1.0

09160-15045

$3.62

31

BEARING, CL RLSE CAM LOWER | 10X14X10

09263-10014

$12.57

32

BEARING, CL RLSE CAM UPPER | 12X18X12

09263-12027

$6.79

33

BEARING, CLUTCH PUSH PIECE | 15X28X2.0

09263-15003

$7.70

34

SEAL, CL RLSE CAMSHAFT OIL

09282-10012

$7.42

35

SEAL, CLUTCH PUSH ROD OIL

09283-06010

$15.62

36

SEAL, CLUTCH PUSH ROD CAP

09285-10004

$3.13

37

BOLT, CL RELEASE ARM

01550-0620A

$2.01

38

NUT, CLUTCH RELEASE ADJ

08310-0006A

$1.89
