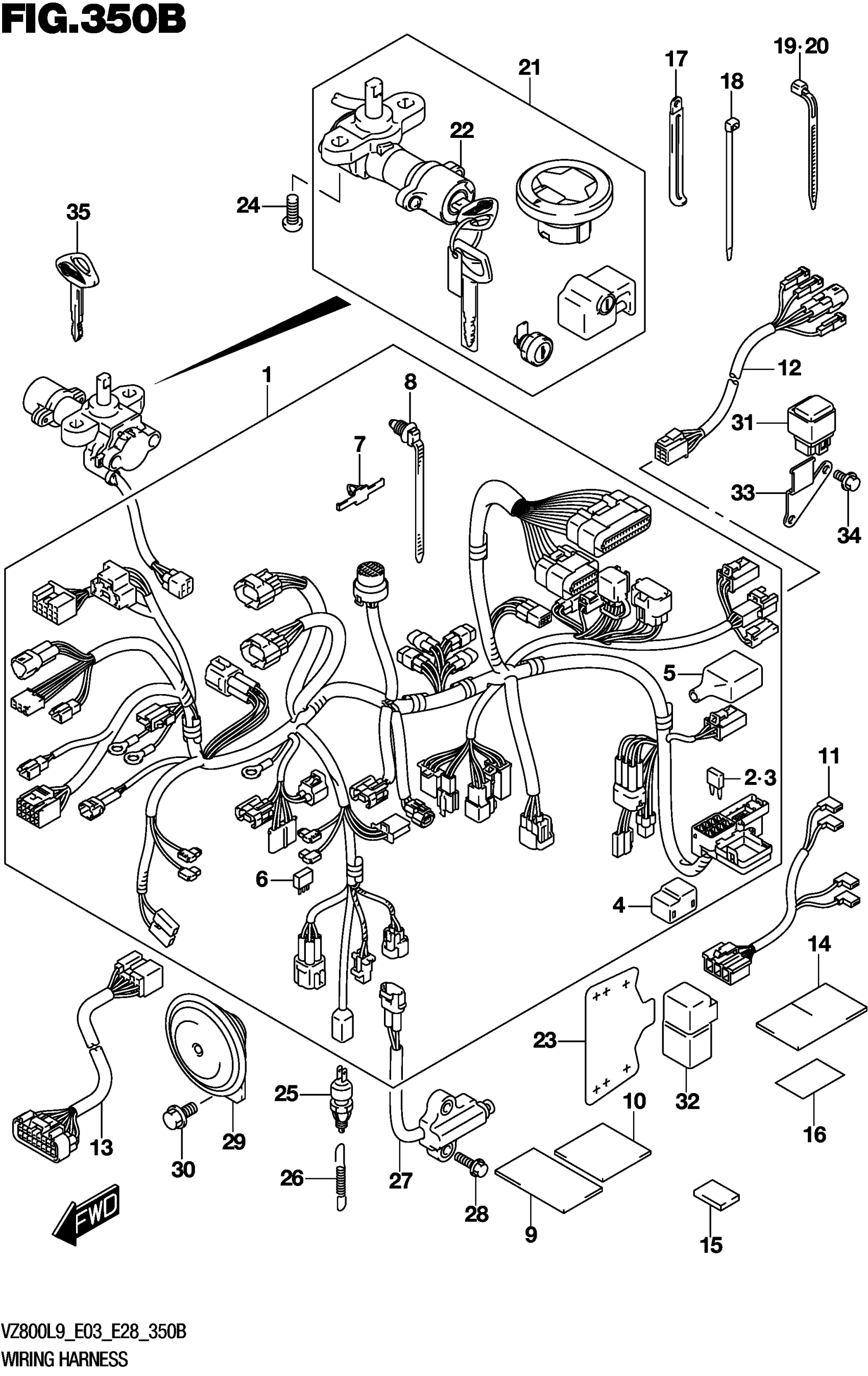

Suzuki VZ800L9 (2019) WIRING HARNESS (VZ800L9 E28) Diagram

#

Description
Price

1

HARNESS

36610-39GP0

Unavailable

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

.COVER

36717-41F10

Unavailable

5

.BOOT

36717-41F00

Unavailable

6

.DIODE

36611-38A10

$13.16

7

.CLAMP

09407-05410

Unavailable

8

CLAMP (L:170)

09407-17403

$4.91

9

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

10

PROTECTOR,WIRING HARNESS (30X

36611-41F00

Unavailable

11

WIRE

36854-39G00

Unavailable

12

WIRE

36858-39GD0

Unavailable

13

WIRE

36859-39G00

Unavailable

14

PROTECTOR,HARNESS (30X50X3)

36920-33C00

Unavailable

15

.COVER (30X45X2)

36930-60A10

$2.92

16

PROTECTOR,COWL UNDER (30X20X0

94474-17H00

$4.58

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

CLAMP (L:145)

09407-14407

$3.57

19

CLAMP (L:165)

09407-18402

$2.19

20

CLAMP (L:190)

09407-19401

$3.05

21

LOCK SET

37103-41860

$492.40

22

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$152.57

23

PROTECTOR,IGNITION SW

37187-41F10

$12.17

24

BOLT (8X20)

09139-08016

$3.37

25

SWITCH ASSY,STOP LAMP

37740-24A00

$18.20

26

SPRING

09443-06073

$3.42

27

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

28

BOLT

01550-0620B

$2.39

29

HORN ASSY

38500-41F40

$72.18

30

BOLT (8X16)

01550-0816A

$2.32

31

RELAY ASSY | FOR HEAD LAMP

38740-24A00

$63.30

32

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$45.20

33

BRACKET

38741-39G00

Unavailable

34

BOLT

01550-0612A

$1.97

35

KEY,BLANK "BOULEVARD" | OPT

37146-41FA0

$50.63
