Description

Price

1

BODY

13401-41F32

$1,065.28

2

.PLATE,STAY

13565-41F20

Unavailable

3

.SCREW

13601-21H00

Unavailable

4

.SCREW,AIR ADJUST

13269-18G00

$11.83

5

.SPRING

13271-43E00

Unavailable

6

.WASHER

13291-26E00

$2.93

7

.O RING

13295-26E00

$4.34

8

.VALVE ASSY, ISC

18117-15H12

$362.80

9

.O-RING

18119-05H00

$3.95

10

.PLATE,ISC VALVE

13428-15H00

Unavailable

11

.SCREW

13605-15H00

$7.12

12

.SENSOR ASSY,THROTTLE NO.1 This part replaces 13580-40F21.

13580-40F22

$249.45

13

.SENSOR ASSY,THROTTLESUB This part replaces 13580-41F01.

13580-41F02

$137.27

14

.O-RING

13575-40F00

$4.09

15

.SCREW

13605-40F00

$3.71

16

CLAMP (L:145)

09407-14407

$3.57

17

INJECTOR ASSY,FUEL

15710-26GB0

$258.60

18

.O-RING

15721-21H00

$9.09

19

.RING,SEAL

15722-21H00

$11.25

20

SCREW,THROTTLE COVER

13602-34F50

$3.65

21

PIPE SET,FUEL FR

13473-41FA0

$77.10

22

.O-RING

15721-24F00

$9.09

23

PIPE SET,FUEL RR

13473-41FB0

$103.83

24

SCREW

13602-10F10

$3.70

25

JOINT

13473-41FC0

$13.62

26

O-RING

15721-10G00

$9.09

27

PLUG,STRAIGHT

13474-41F20

$6.88

28

O-RING

15721-41F20

$22.38

29

PLATE,STAY

13475-41F20

$5.58

30

HOSE

13683-41FA0

$23.47

31

.TUBE,RUBBER

13683-41FD0

Unavailable

32

SENSOR,AIR PRESSURE

18590-32G00

$298.15

33

BRACKET,BOOST SENSOR FR

18598-41F00

Unavailable

34

BRACKET,BOOST SENSOR RR

18599-39G00

Unavailable

35

HOSE

13683-41FC1

Unavailable

36

TUBE,RUBBER This part replaces 13682-41F30.

13682-41F31

$15.48

37

CLIP

13693-24F00

$3.22

38

.NIPPLE

13685-48B00

$12.15

39

VALVE ASSY,DUTY FOR PURGE

18117-52G00

$149.32

40

BRACKET,PURGE VALVE

18119-39G00

Unavailable

41

CUSHION (10X30X2)

44894-24A00

$1.72

42

BOLT

01550-0612A

$1.97

43

NUT (6X12)

08316-1006A

$2.19

44

HOSE,CANISTER PURGE

13680-39G00

Unavailable

45

CLIP (ID:10.5,H:8)

09401-10409

$2.26

46

CLAMP,EVAP HOSE

44480-41F00

Unavailable

47

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

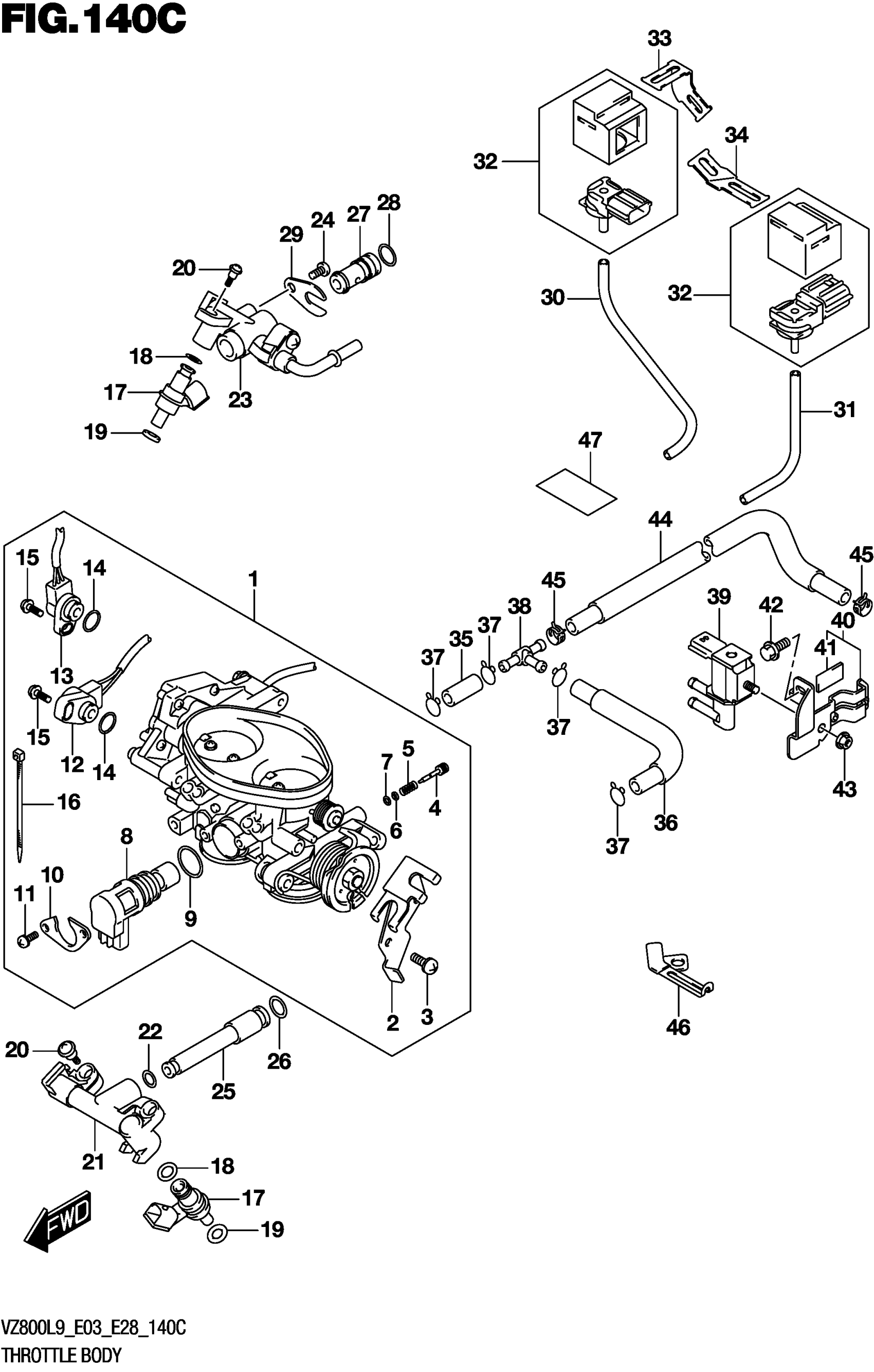

Suzuki VZ800L9 (2019) THROTTLE BODY (VZ800L9 E33) Diagram
