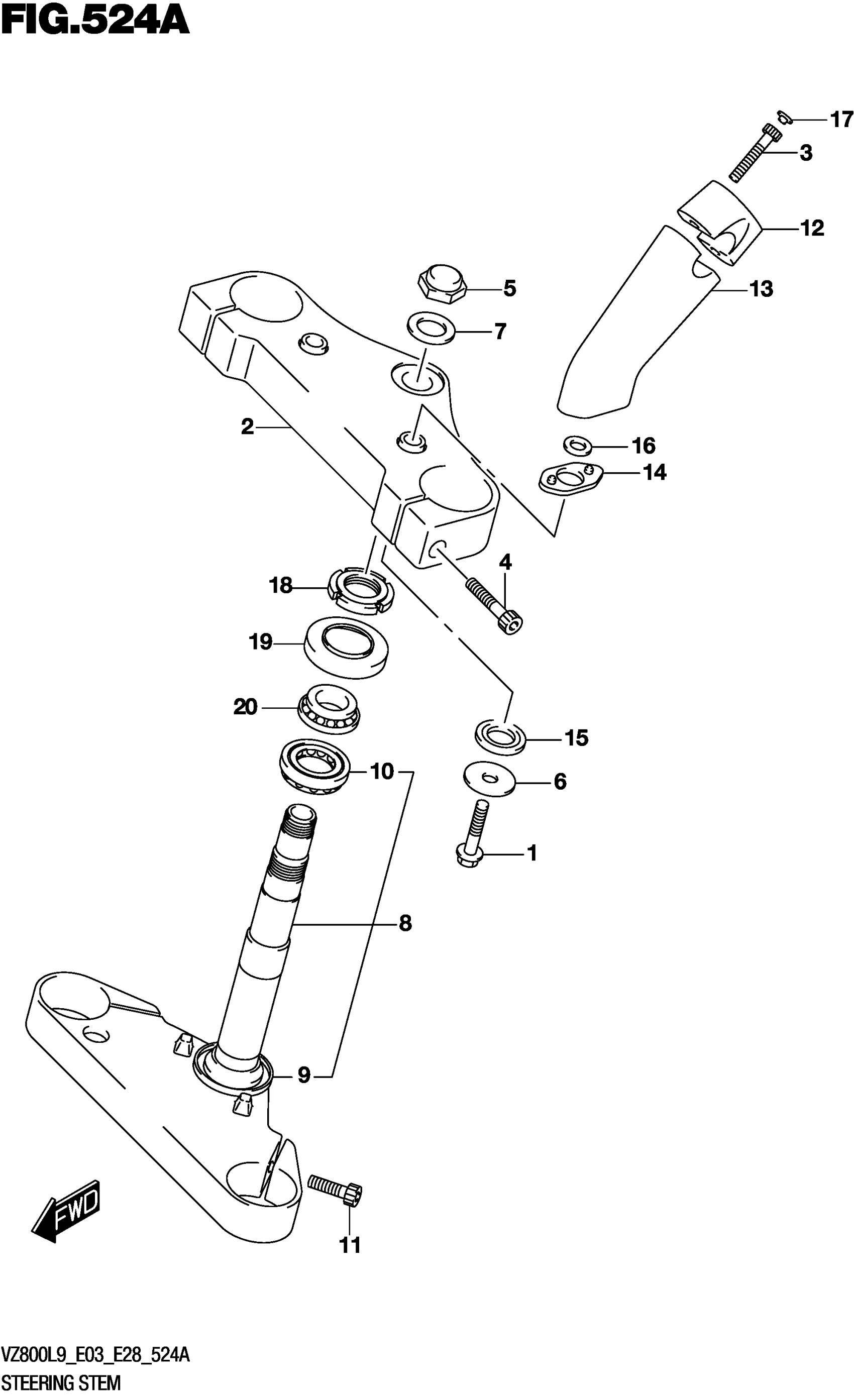

Suzuki VZ800L9 (2019) STEERING STEM Diagram

#

Description
Price

1

BOLT

51226-39G20

Unavailable

2

BRACKET

51311-39G60

$421.82

3

BOLT,HOLDER HANDLE UPPER

51328-39G20

$11.77

4

BOLT,HOLDER HANDLE UPPER

51328-39G20

$11.77

5

NUT,CAP

51353-24B00

$30.67

6

WASHER

51355-16G00

$5.77

7

WASHER (22.5X35.9X1.6)

51356-10D03

$7.50

8

BRACKET

51410-39G60

$693.55

9

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

10

.BEARING (30X55X17)

09267-30010

$48.11

11

BOLT

51434-39G00

$8.70

12

HOLDER

56211-39G60

$83.93

13

HOLDER

56221-39G60

$501.20

14

RUBBER

56245-39G00

$9.42

15

RUBBER,HANDLE LOWER

56245-39G20

$9.42

16

WASHER

08322-01107

$2.15

17

CAP (OD:11)

09250-06011

$2.50

18

NUT,STEERING STEM (25X44X10)

51631-28000

$17.37

19

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

20

BEARING (25X47X15)

09267-25009

$52.18
