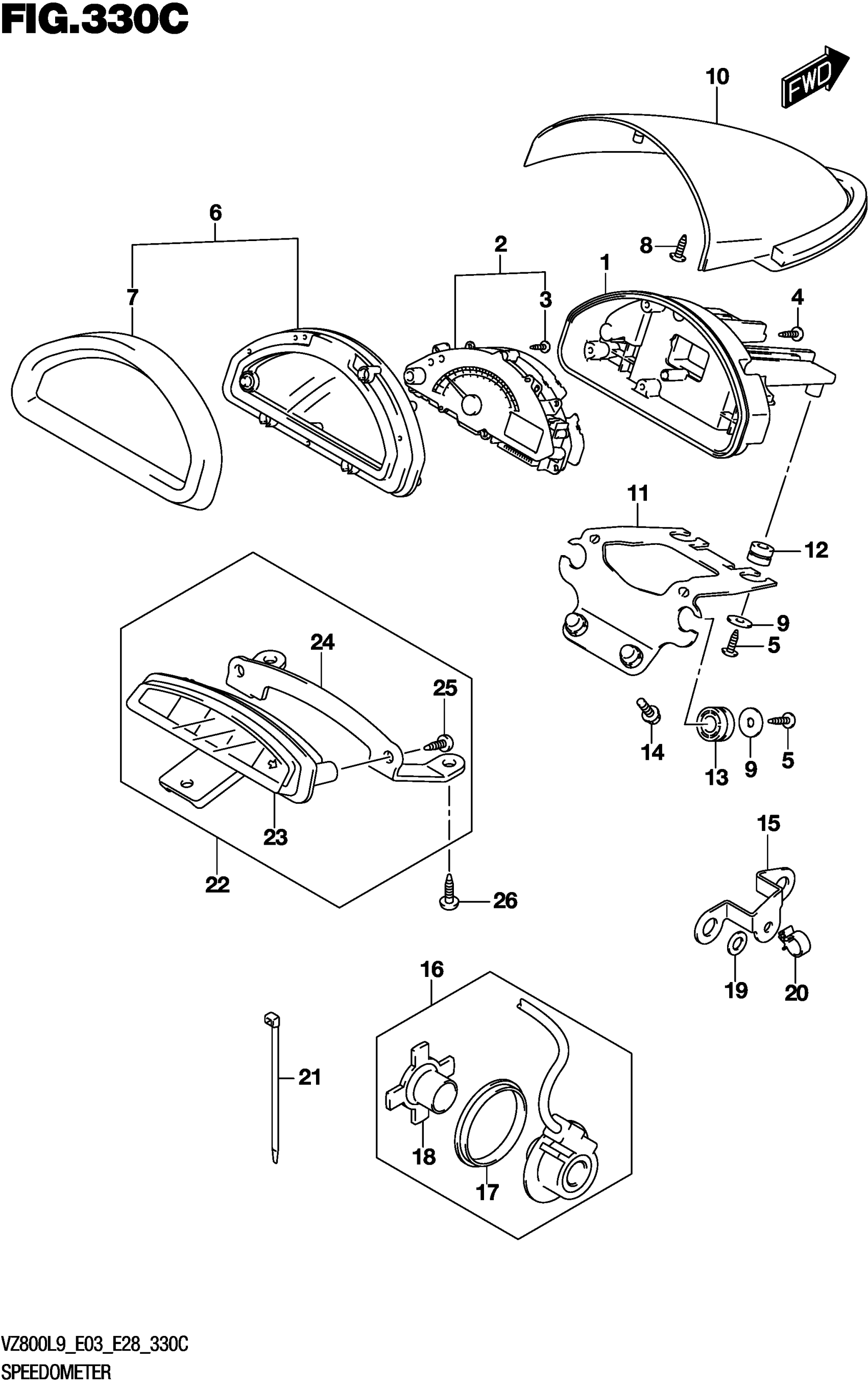

Find the part on the Speedometer diagram for your 2019 Suzuki VZ800L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VZ800L9 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

34111-40H00

1
Out of stock

2

SPEEDOMETER

34120-39GD0

1
Out of stock

3

SCREW (3X14)

34149-03G00

4
Out of stock

4

SCREW (3X14)

34149-03G00

5
Out of stock

5

SCREW (5X16)

34149-40H00

4
Out of stock

6

UPPER CASE

34150-40H20

1
Out of stock

7

.UPPER COVER

34256-40H20

1
Out of stock

8

SCREW

34184-12B00

4
Out of stock

9

WASHER (5.2X20X1.0)

34189-40H00

4
Out of stock

10

COVER ASSY

34257-39GH0

1
Out of stock

11

BRACKET

34952-39GC0

1
Out of stock

12

DAMPER NO.2

34955-39G00

2
Out of stock

13

DAMPER NO.1

34955-39G10

2
Out of stock

14

BOLT

01547-0612A

3
Out of stock

15

GUIDE

34938-39G10

1
Out of stock

16

SENSOR

34990-39G00

1
Out of stock

17

.OIL SEAL (44X55X6)

09286-44001

1
Out of stock

18

.MAGNET

34983-27G00

1
Out of stock

19

WASHER (10.5X18X1)

09160-10121

2
Out of stock

20

CLAMP

09403-06410

1
Out of stock

21

CLAMP (L:145)

09407-14407

4
Out of stock

22

BOX ASSY

36380-39G11

1
Out of stock

23

.CASE UNIT

36381-39G11

1
Out of stock

24

.BRACKET

36386-39G00

1
Out of stock

25

.SCREW

03241-05126

—
Out of stock

26

SCREW

03511-0512B

3
Out of stock
