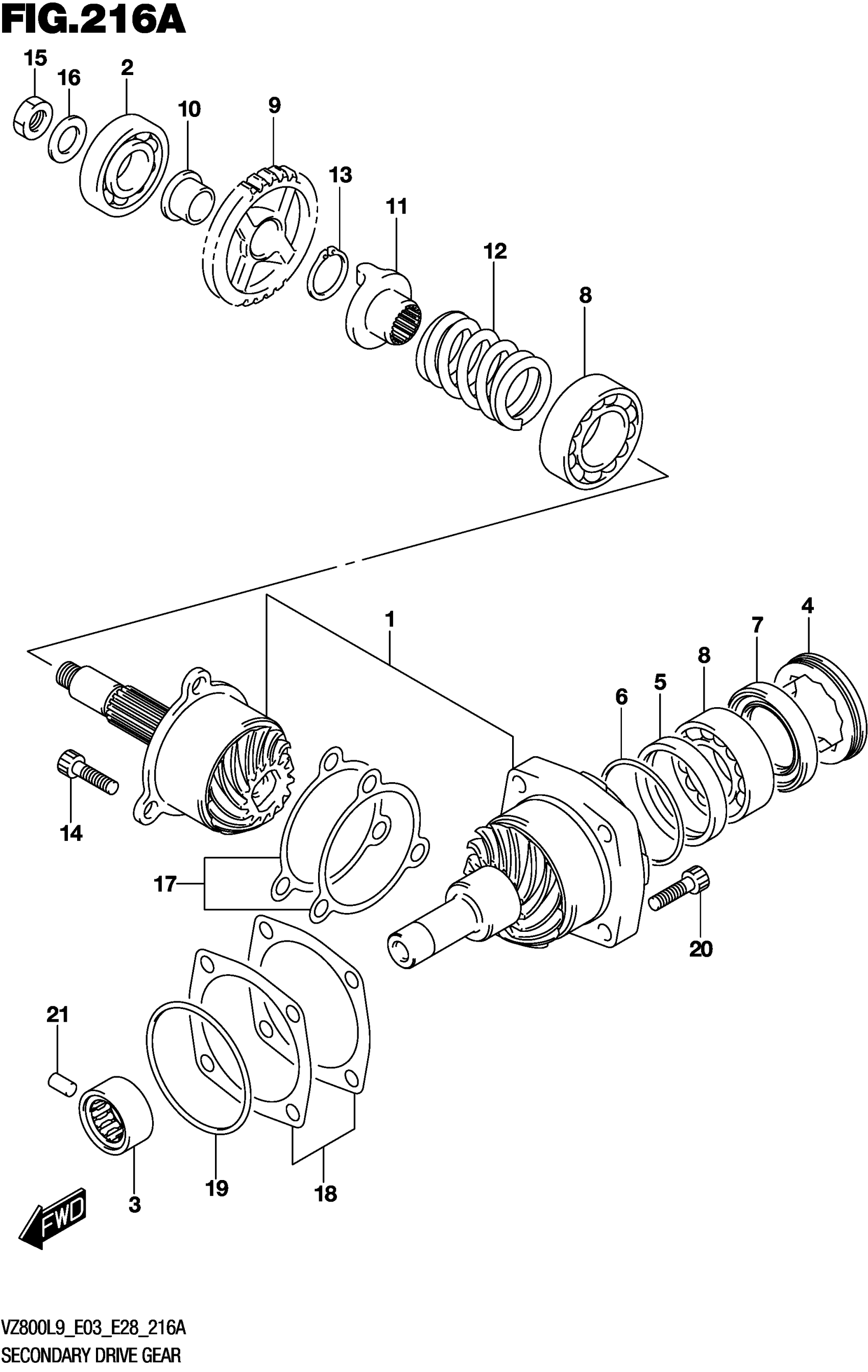

Suzuki VZ800L9 (2019) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR & HOUSING SET,SECONDARY

24900-41810

Unavailable

1

GEAR & HOUSING SET,SECONDARY

24900-41810

Unavailable

2

BEARING (20X52X15)

09262-20073

$23.28

3

.BEARING (20X34X16)

09263-20038

$55.95

4

.STOPPER,SEC DRIVEN BEARING

24942-38A50

$66.40

5

.HOUSING,OIL SEAL

24943-38A50

$87.70

6

.O-RING (D:1.2,ID:59.6)

09280-60003

$2.77

7

.SEAL,OIL (38X54X8.5)

09283-38016

$18.35

8

BEARING (30X62X23.8)

09267-30005

$119.55

9

GEAR,REDUCTION DRIVEN (NT:30)

24631-38A00

Unavailable

10

BUSH,REDUCTION DRIVEN GEAR

24632-38A00

Unavailable

11

DOG,OUTPUT CAM

24922-38A00

Unavailable

12

SPRING

09440-44002

Unavailable

13

CIRCLIP

08331-31219

$2.43

14

BOLT (8X25)

09106-08097

$2.72

15

NUT This part replaces 09140-16001.

09140-16005

$3.75

16

WASHER (16X29X4.0)

09160-16029

$6.35

17

SHIM SET,SEC DRIVE GEAR (T:0. | T:0.3/0.35/0.4/0.5/0.6

24935-38810

Unavailable

18

SHIM SET,SEC DRIVEN HOUSING ( | T:0.3/0.35/0.4/0.5/0.6

24945-05810

Unavailable

19

O-RING (D:2.1,ID:66.2)

09280-67004

$4.10

20

BOLT (8X25)

09106-08097

$2.72

21

PIN

04221-07129

$1.86
