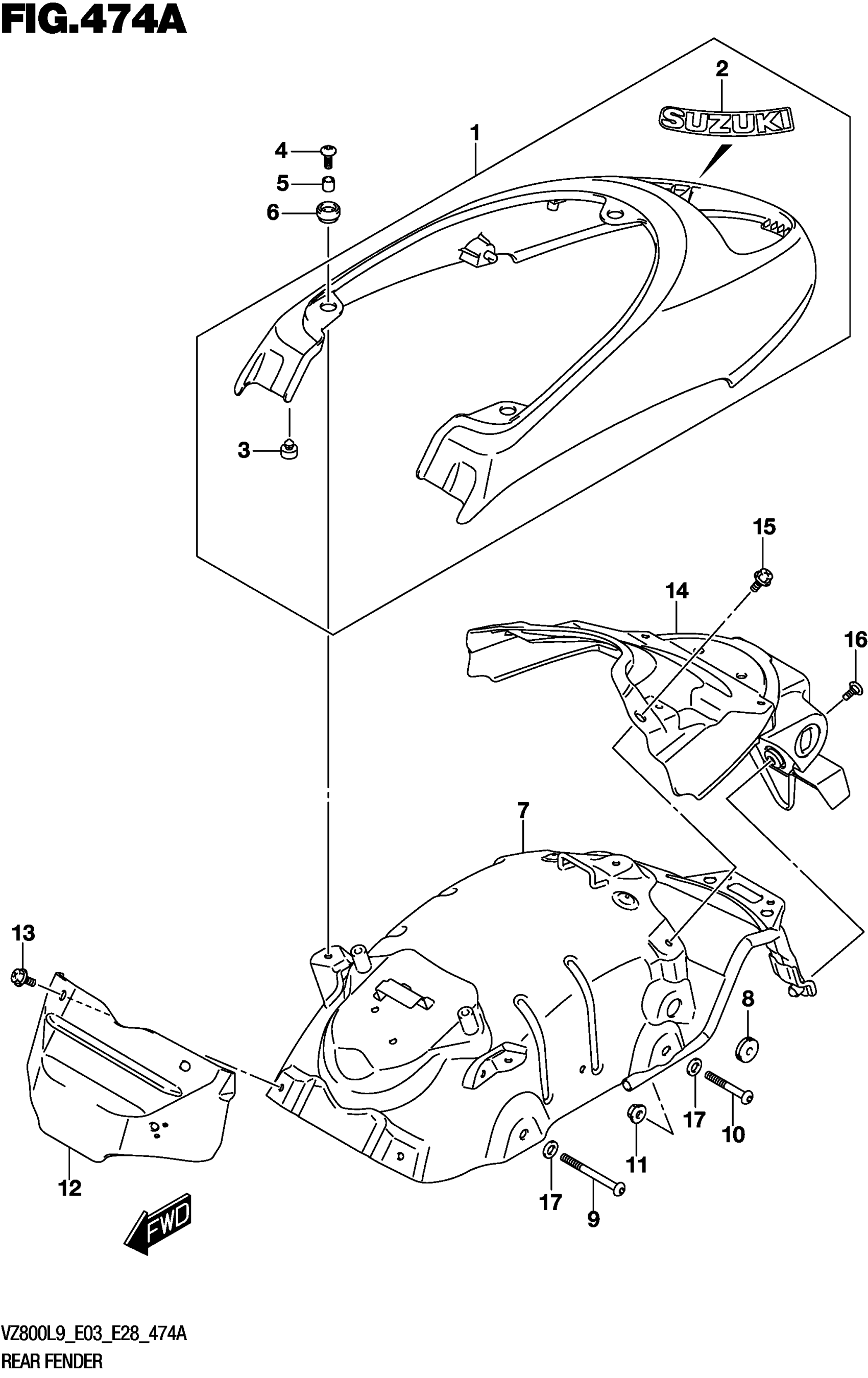

Suzuki VZ800L9 (2019) REAR FENDER Diagram

#

Description
Price

1

FENDER COMP,REA This part replaces 63110-39G50-PGZ.

63110-39G51-PGZ

$256.13

2

EMBLEM,"SUZUKI" This part replaces 68641-19F00-AHW.

68641-19F01-AHW

$10.22

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

4

SCREW (6X20)

09136-06105

$1.97

5

SPACER (6.5X10X7)

09180-06283

$1.91

6

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

7

BRACE

63140-39G00

Unavailable

8

CUSHION

09320-08029

$2.41

9

BOLT (8X70)

09106-08182

$4.17

10

BOLT (8X50)

09106-08183

$3.70

11

NUT

08316-1008A

$2.45

12

FENDER

63112-39G50

Unavailable

13

BOLT (6X12)

09111-06107

$2.60

14

EXTENSION

63311-39G01

$60.38

15

BOLT (6X12)

09111-06107

$2.60

16

SCREW (6X12)

09139-06144

$2.50

17

WASHER

08322-0108A

$1.92
