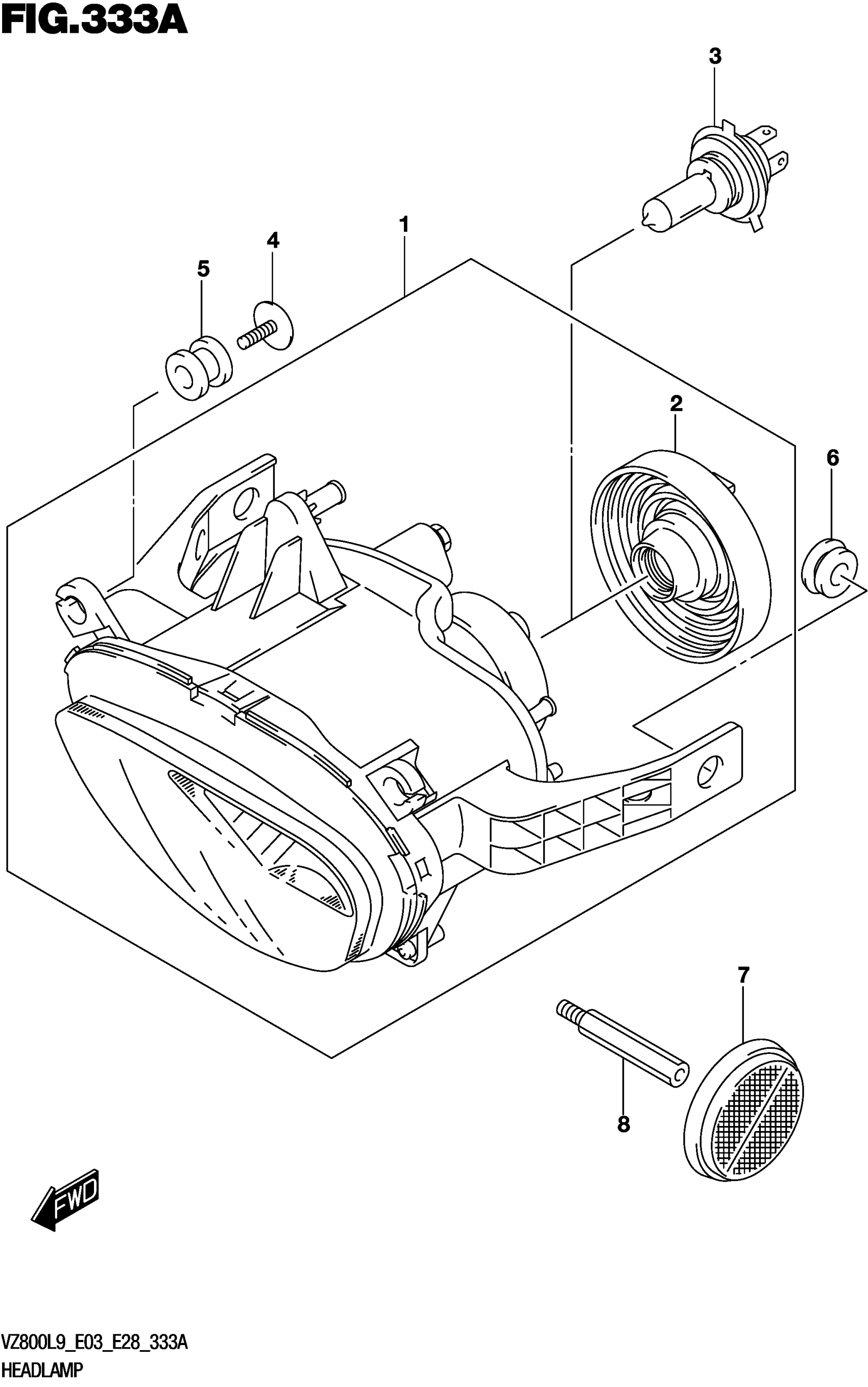

Suzuki VZ800L9 (2019) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-48GE0-999

$371.35

2

.COVER

35173-14G00

$17.45

3

.BULB (12V60/55W,H4)

09471-12060

$25.15

4

SCREW (5X15)

09136-05062

$2.19

5

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

6

CUSHION

09320-09506

Unavailable

7

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

8

BOLT

09119-06104

$14.43
