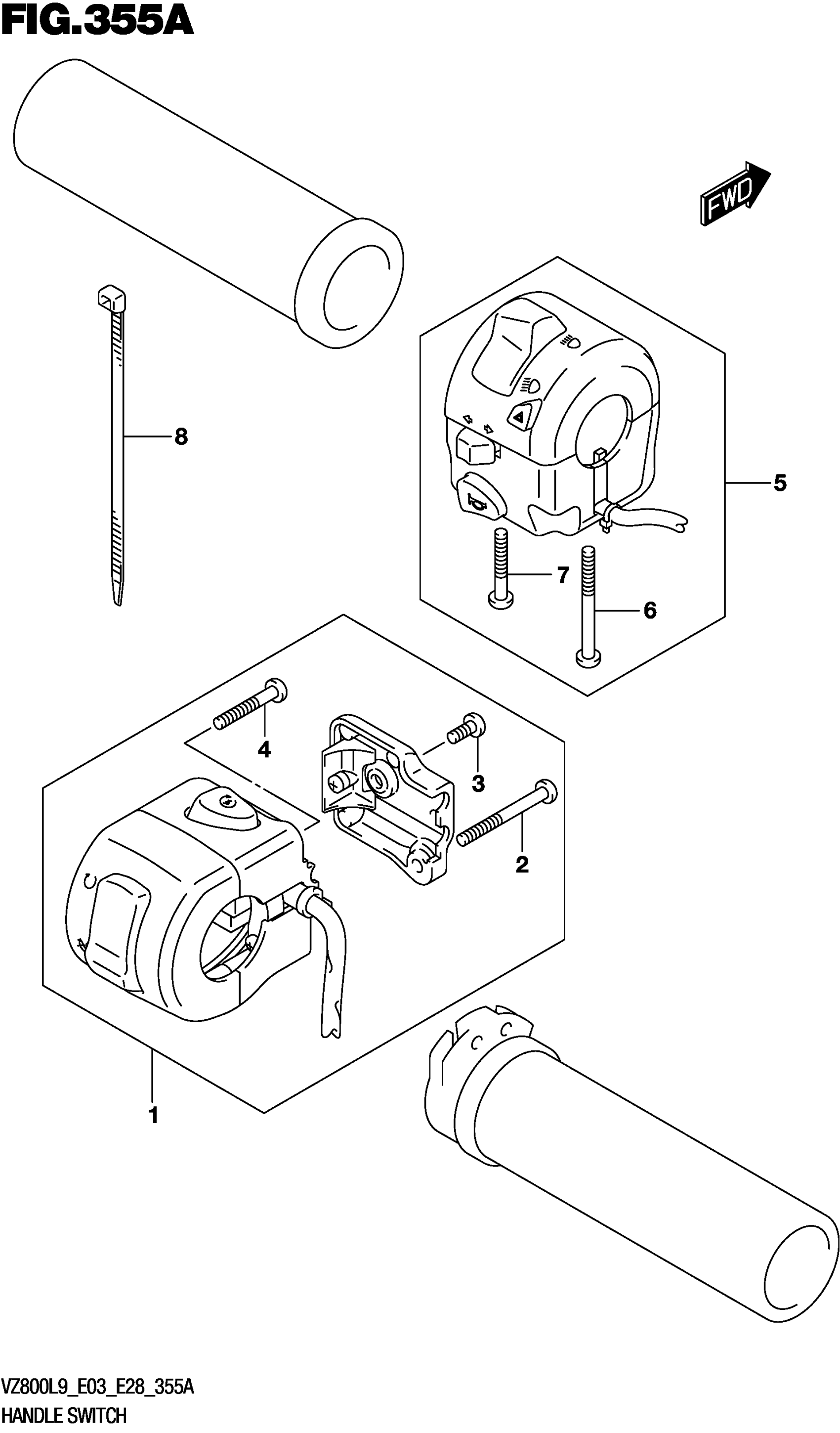

Suzuki VZ800L9 (2019) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE RH

37200-06J00

$276.52

2

.SCREW

02112-0545B

$2.26

3

SCREW

02112-0510B

$2.08

4

.SCREW

02112-0535B

$2.23

5

SWITCH ASSY

37400-06J00

$306.43

6

.SCREW

02112-0545B

$2.26

7

.SCREW

02112-0530B

$1.49

8

CLAMP (L:145)

09407-14407

$3.57
