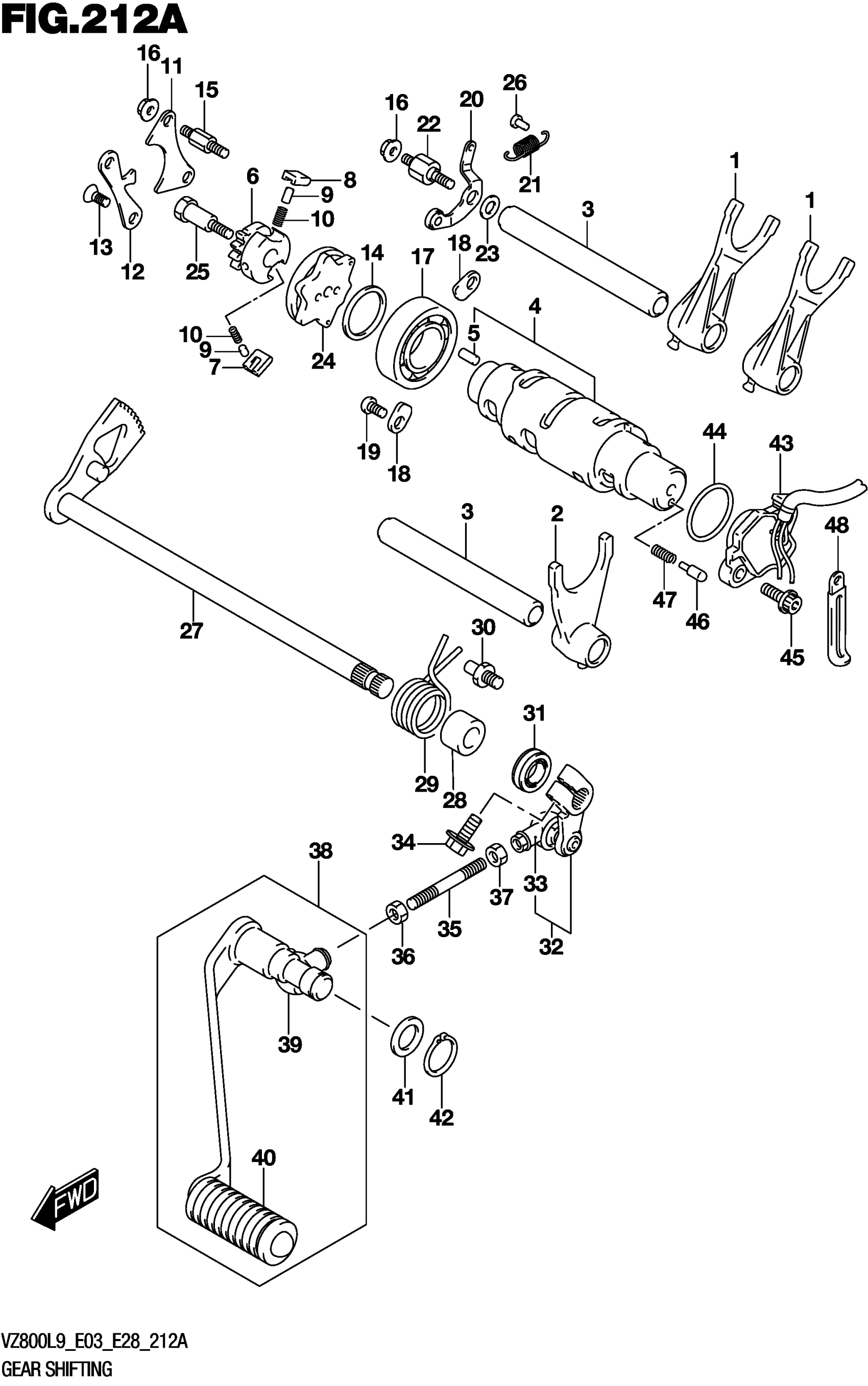

Suzuki VZ800L9 (2019) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT,NO.1

25211-38A10

Unavailable

2

FORK,GEAR SHIFT,NO.2

25221-38A10

Unavailable

3

SHAFT, GEAR SHIFT FORK (L:115

25411-38A00

$29.25

4

CAM,GEAR SHIFT

25310-41F00

$265.62

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN (5X8)

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER,GEAR SHIFT POLE

25331-38A00

Unavailable

12

GUIDE,GEAR SHIFT CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS,SHIFT POLE LIFTER

25332-38A10

Unavailable

16

NUT (6X12)

08316-1006A

$2.19

17

BEARING (25X47X8)

09262-25006

$25.54

18

RETAINER

24741-21A00

$2.81

19

SCREW (6X12)

09125-06122

$2.44

20

STOPPER,GEAR SHIFT CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$3.93

22

SUPPORT,CAM STOPPER ARM

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE,GEAR SHIFT CAM

25380-38A02

$17.62

25

PIN,SHIFT CAM DRIVEN GEAR

25312-38A00

$6.28

26

.RIVET (L:11.0)

09223-04004

Unavailable

27

SHAFT,GEAR SHIFT

25510-38A00

$107.25

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING

09444-26013

$3.10

30

STOPPER,GEAR SHIFT ARM

25671-01011

$4.48

31

OIL SEAL (12X22X9)

09285-12006

$6.32

32

ARM,GEAR SHIFT This part replaces 25520-47000.

25520-47021

$42.92

33

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

34

BOLT

01547-0620A

$2.03

35

ROD

25525-44110

$7.36

36

NUT | LH

09140-06011

$1.49

37

NUT | RH

08310-0006A

$1.84

38

LEVER ASSY,GEAR This part replaces 25600-41F00.

25600-41F01

$67.55

39

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

40

.RUBBER,GEAR SHIFT PEDAL

25652-38B00

$5.36

41

WASHER (14.5X22X1.6)

09160-14055

$2.39

42

CIRCLIP

08331-3114A

$1.91

43

BASE ASSY,GEAR SHIFT TERM

37730-41F02

$130.87

44

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

45

BOLT

07120-0516A

$2.28

46

PIN (5X15.5)

09209-05011

$2.20

47

SPRING

09440-04010

$1.54

48

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
