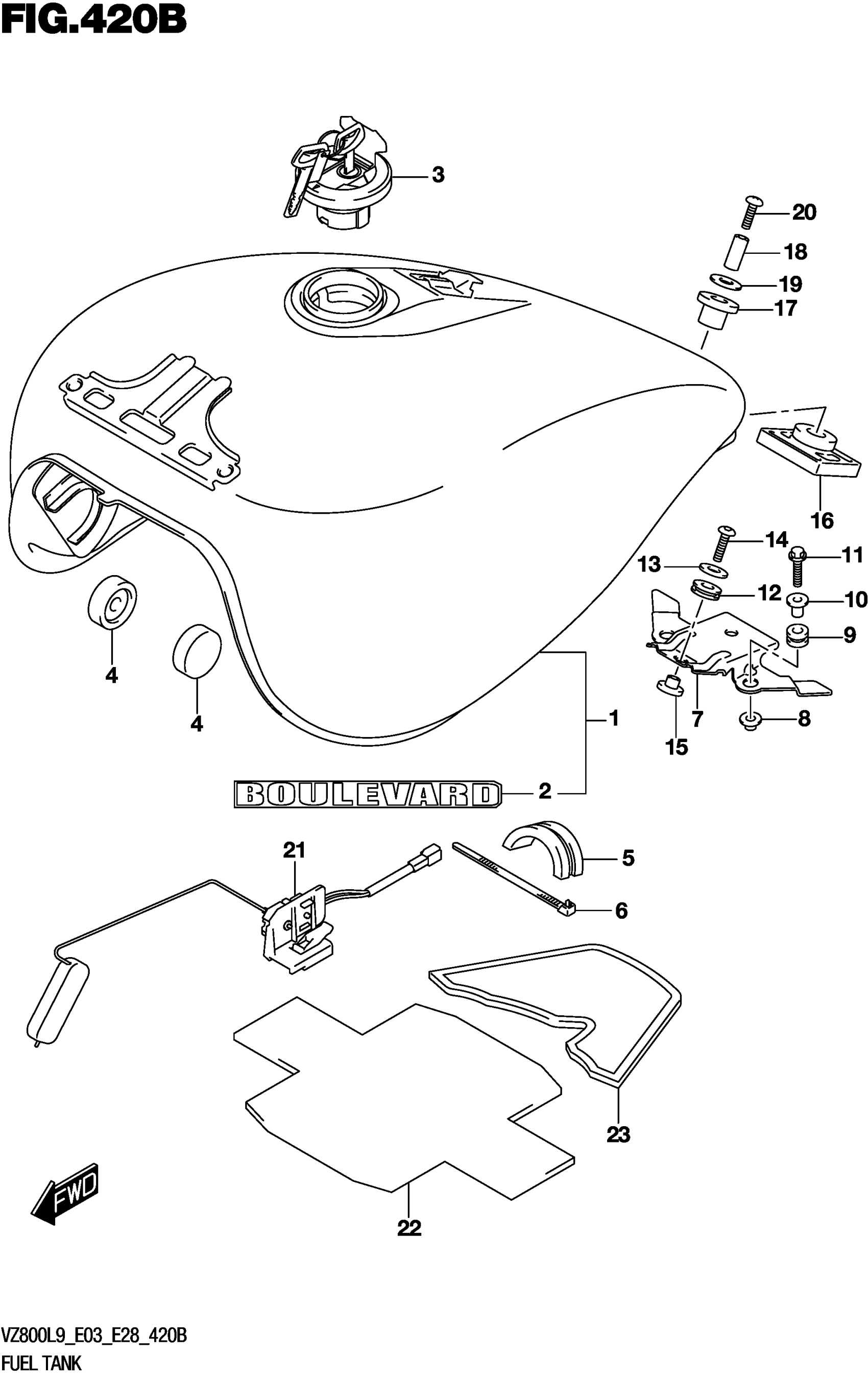

Suzuki VZ800L9 (2019) FUEL TANK (VZ800L9 E28) Diagram

TANK ASSY, FUEL (GRAY)

44100-39GS0-PGZ

$1,000.10

.EMBLEM, "BOULEVARD" (BLACK)

68111-48G40-YKV

$30.00

CAP SET,FUEL TA This part replaces 44200-39860.

44200-39862

$137.18

CUSHION This part replaces 09329-10007.

09329-10026

$1.98

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.54

CLAMP (L:250)

09407-25402

$4.32

BRACKET

44530-39G20

Unavailable

WASHER

09169-06076

$2.97

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.14

WASHER

09169-06070

$5.17

SCREW

02162-0625B

$2.65

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.97

WASHER (8.5X26X1.6)

09160-08151

$2.07

BOLT (8X23)

09106-08150

$3.22

WASHER

44512-39G00

Unavailable

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.38

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.19

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.13

WASHER (8.5X33X1.5)

09160-08146

$2.66

BOLT (8X35)

01550-0835A

$2.82

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$148.25

SHIELD,FUEL TANK HEAT

44192-39G00

$166.93

SHIELD

44193-39G00

$115.30
