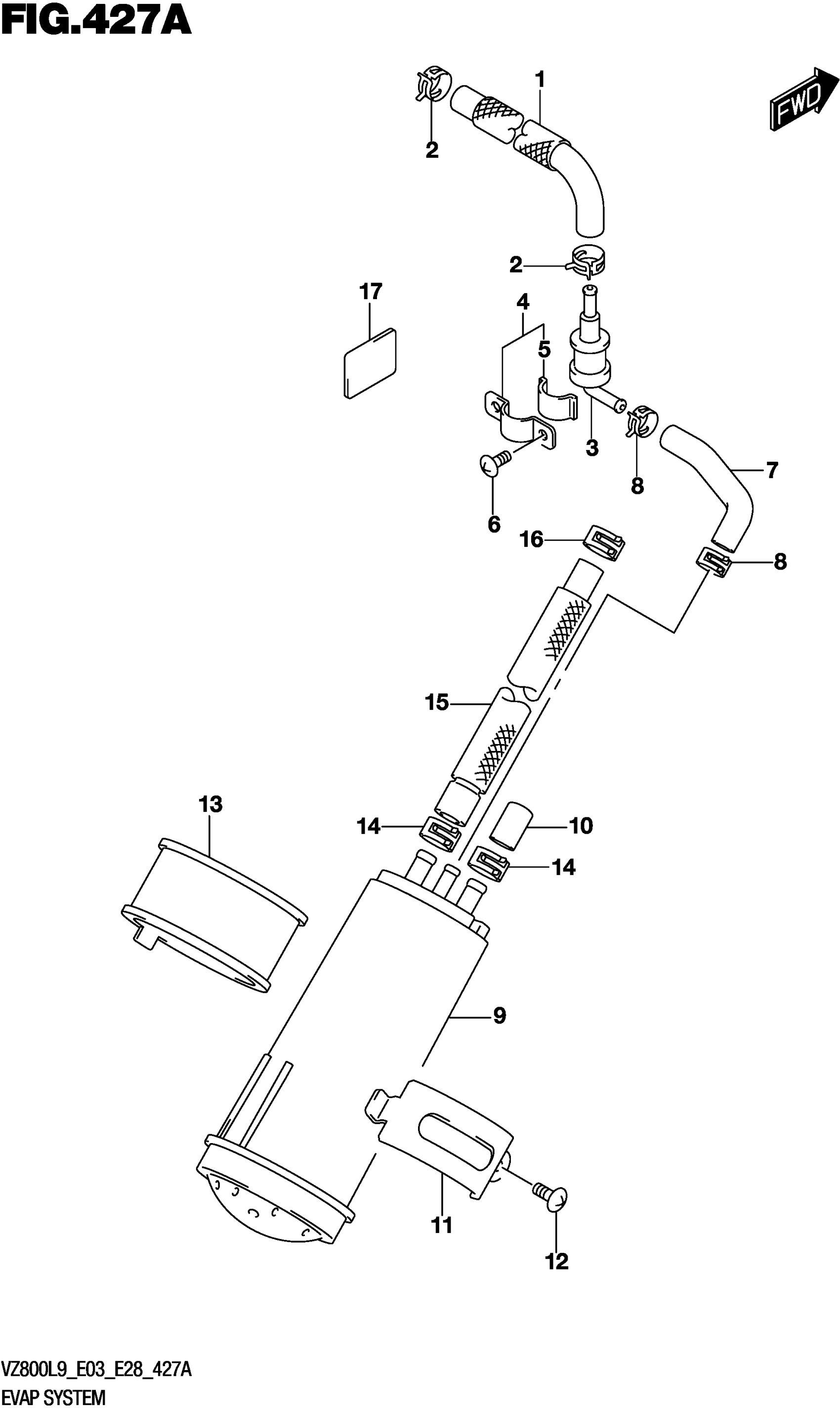

Suzuki VZ800L9 (2019) EVAP SYSTEM (VZ800L9 E33) Diagram

#

Description
Price

1

HOSE

44434-39G10

Unavailable

2

CLIP (ID:11,H:8)

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW

02142-0408A

$1.55

7

HOSE

44435-39G10

Unavailable

8

CLIP (ID:11,H:8)

09401-11413

$2.26

9

CANISTER SET

17200-17H00

Unavailable

10

CAP (OD:11.5)

09251-07003

$2.53

11

HOLDER,CANISTER

44882-26E00

Unavailable

12

SCREW

02142-0610A

$1.49

13

CUSHION CANISTER

44883-26E00

Unavailable

14

CLIP (ID:12)

09401-12404

$2.34

15

HOSE

44436-43H00

Unavailable

16

CLIP (ID:11,H:8)

09401-11413

$2.26

17

PROTECTOR

47261-48B00

Unavailable
