2018 Suzuki VZ800L8 Starting Motor Diagram

← All diagrams

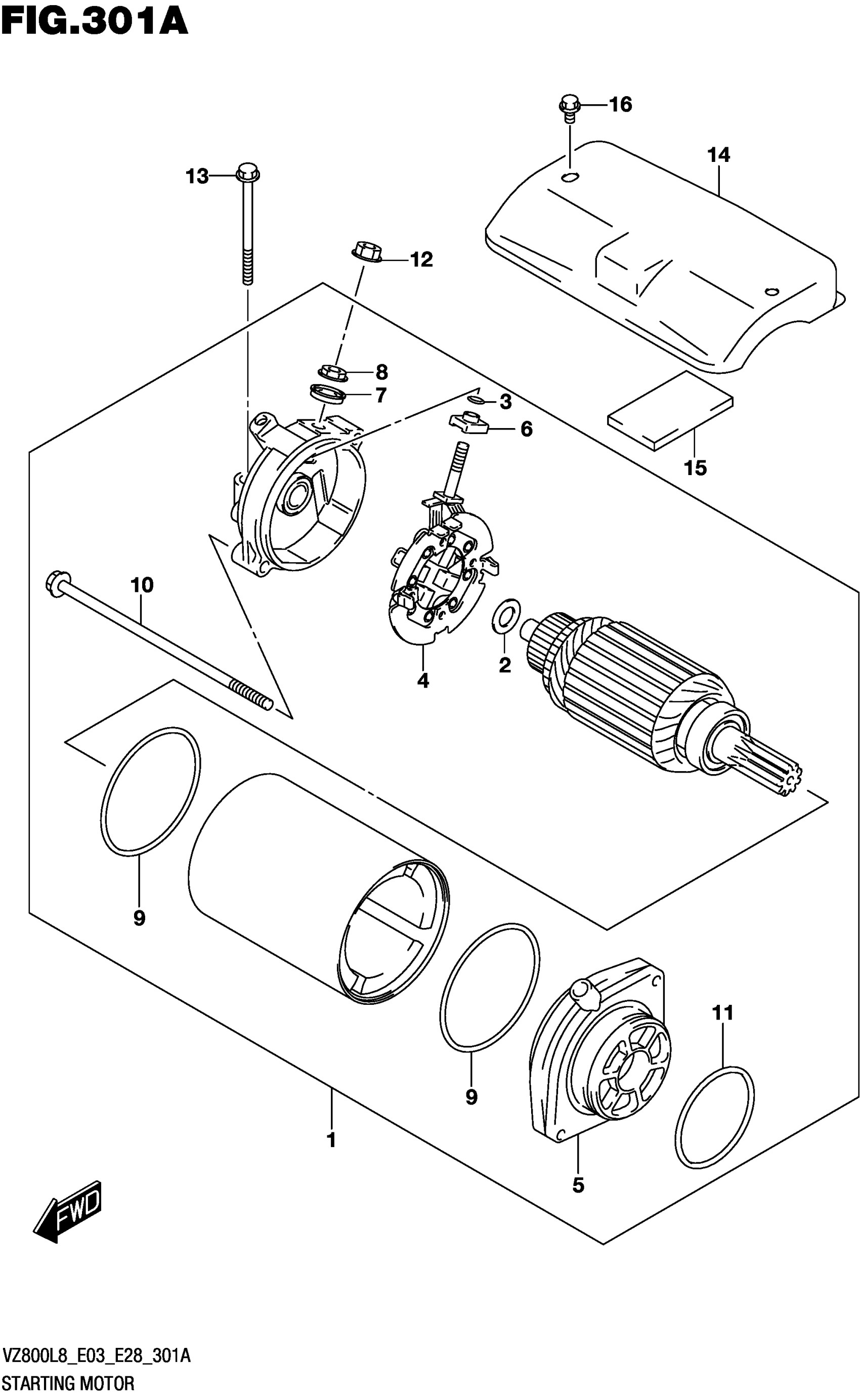

Find the part on the Starting Motor diagram for your 2018 Suzuki VZ800L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki VZ800L8 Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY,STARTING This part replaces 31100-45C01.

31100-45C02

1
Out of stock

2

.SHIM SET

31170-43400

1
Out of stock

3

.O-RING

31143-38300

1
Out of stock

4

.HOLDER SET,BRUSH

31132-45C00

1
Out of stock

5

.BRACKET SET

31150-38A00

1
Out of stock

6

.BUSHING

31172-38300

1
Out of stock

7

.BUSHING

31173-88C00

1
Out of stock

8

.NUT

08310-00067

1
Out of stock

9

.O-RING

31264-44110

2
Out of stock

10

BOLT This part replaces 31281-24B10.

31281-31D00

2
Out of stock

11

.O-RING

31156-38A00

1
Out of stock

12

NUT

08361-3506A

1
Out of stock

13

BOLT (6X60)

09103-06261

2

$3.13

In stock

14

COVER,STARTING MOTOR

31210-41F00

1
Out of stock

15

DAMPER,MOTOR COVER

31212-38A10

1
Out of stock

16

BOLT

01547-0508A

—
Out of stock
