2018 Suzuki VZ800L8 Headlamp Cover Diagram

← All diagrams

Find the part on the Headlamp Cover diagram for your 2018 Suzuki VZ800L8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

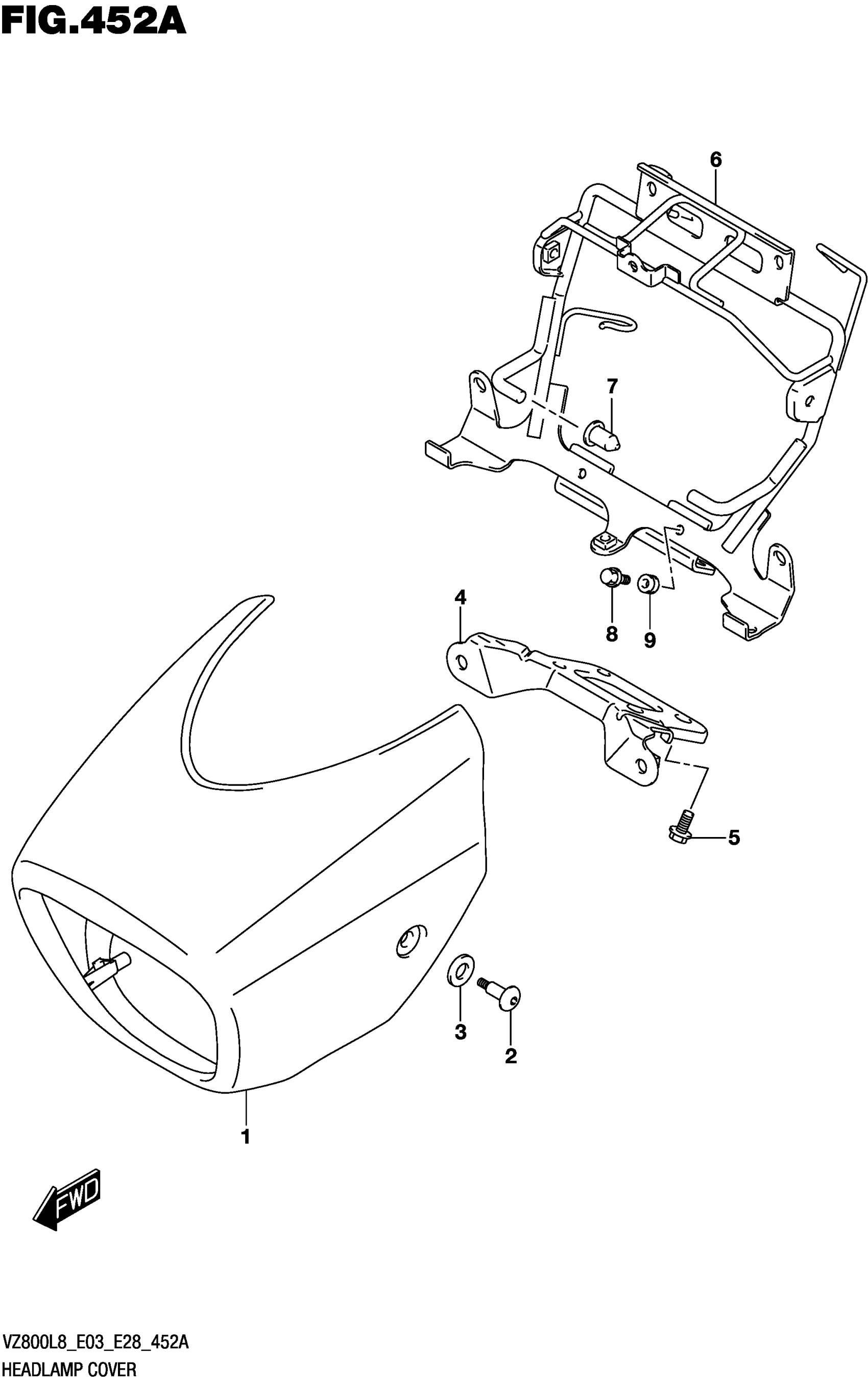

2018 Suzuki VZ800L8 Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

51811-39G10-YVB

1

$280.08

In stock

2

SCREW (6X22)

09139-06191

2
Out of stock

3

WASHER

53121-39G10

2

$3.95

In stock

4

BRACKET

51860-39G00

1
Out of stock

5

BOLT

01547-0612A

4
Out of stock

6

BRACE

51850-39G10

1
Out of stock

7

CUSHION,HEADLAMP BRACE

51831-21D00

2
Out of stock

8

BOLT (8X12)

01550-0812A

2
Out of stock

9

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

2
Out of stock
