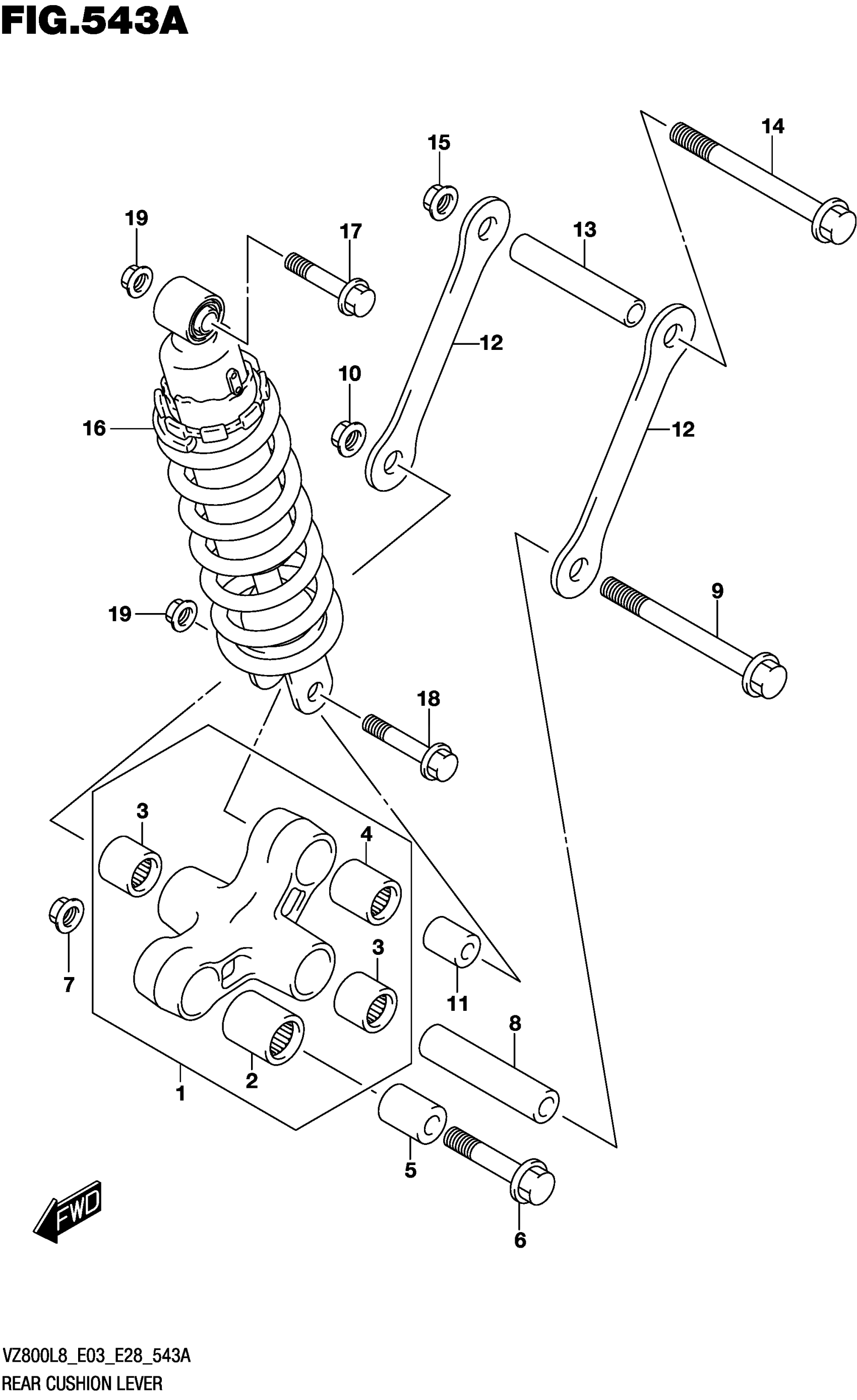

Suzuki VZ800L8 (2018) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET

62600-33890

Unavailable

2

.BEARING (20X27X30) This part replaces 09263-20073.

09263-20121

$16.32

3

.BEARING This part replaces 09263-17039.

09263-17058

$14.85

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$19.09

5

SPACER,RR CUSHION LEVER FR (1

62684-12C00

$20.72

6

BOLT (12X62)

62668-42A02

$12.03

7

NUT

08319-3112A

$3.38

8

SPACER,RR CUSHION LEVER CTR (

62626-33D00

$19.40

9

BOLT,REAR CUSHION LEVER,CENTE

62621-33D00

$26.95

10

NUT

08319-3112A

$3.38

11

SPACER,RR CUSHION LEVER (10X1

62684-40A10

$11.44

12

ROD,REAR CUSHION

62641-41F00

$36.48

13

SPACER,RR CUSHION LEVER CTR (

62626-33D00

$19.40

14

BOLT,REAR CUSHION LEVER,CENTE

62621-33D00

$26.95

15

NUT

08319-3112A

$3.38

16

ABSORBER ASSY

62100-39G80

Unavailable

17

BOLT (10X52)

09103-10213

$6.27

18

BOLT (10X52)

09103-10213

$6.27

19

NUT

08319-3110A

$2.73
