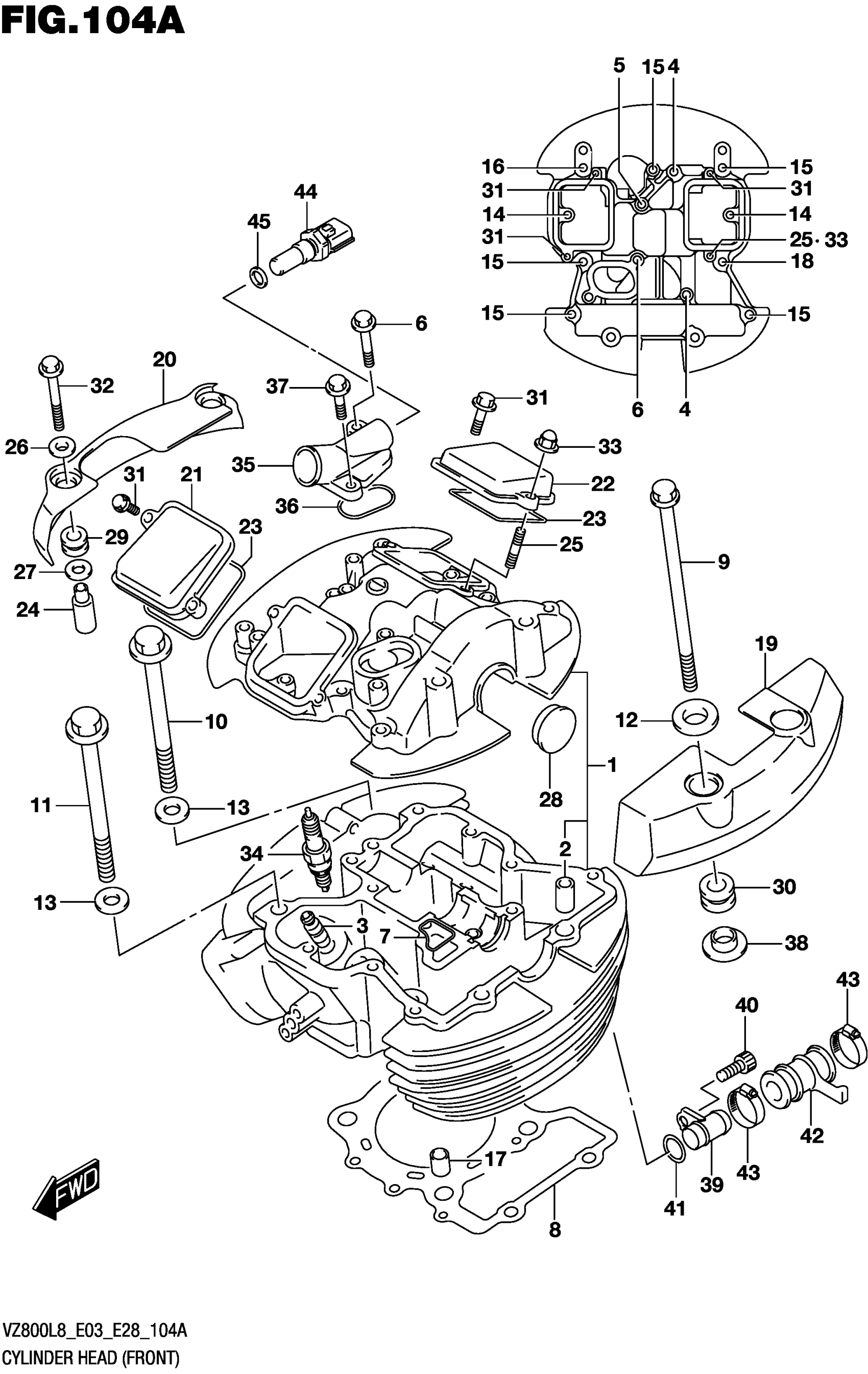

Suzuki VZ800L8 (2018) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY

11101-39G00

$1,034.47

2

PIN (11X14) This part replaces 09206-11011.

09206-11004

$5.36

3

GUIDE,VALVE (OS:0.3) | OPT

11115-41F70

$40.73

4

BOLT (6X50)

09103-06304

$2.53

5

BOLT (6X55)

09103-06305

Unavailable

6

BOLT

07130-0680B

$4.68

7

.GASKET,HEAD COVER

11123-38A00

$3.77

8

.GASKET,CYLINDER HEAD FRONT

11141-41F00

$38.66

9

BOLT (8X250)

09103-08370

$16.20

10

BOLT (10X155)

09103-10133

$9.48

11

BOLT (10X165)

09103-10134

$9.48

12

WASHER (8.5X24X1.6)

09160-08130

$2.03

13

WASHER (10.5X22X2.3)

09160-10039

$2.26

14

BOLT

01547-0625A

$2.01

15

BOLT

01547-0630A

$2.32

16

BOLT

01547-0640A

$2.32

17

PIN (10.4X13X18)

04211-13189

$2.19

18

BOLT

07120-0630A

$3.58

19

CAP,CYL HEAD COVER FR,L

11171-41FA0

Unavailable

20

CAP,CYL HEAD COVER FR

11172-41F00

Unavailable

21

CAP,INSPECTION INTAKE

11175-38A11

$23.07

22

CAP,INSPECTION EXHAUST

11176-38A11

$23.07

23

.GASKET,INSPECTION CAP

11177-38A00

$4.48

24

SPACER,CYL HEAD COVER CAP NO.

11179-10F10

$12.17

25

BOLT,STUD (L:16)

09108-06102

$4.08

26

WASHER (6.5X18X1.6)

09160-06084

$1.78

27

WASHER (9.5X20X1.0)

09160-09016

$2.30

28

PLUG (OD:30)

09241-30004

$6.60

29

CUSHION (9X18X9.5)

09320-09016

$1.97

30

CUSHION

09320-13015

$2.85

31

BOLT

01547-0620A

$2.03

32

BOLT

01547-06557

$2.32

33

NUT

09159-06093

Unavailable

34

SPARK PLUG (DR7EA) | NGK

09482-00398

$3.03

34

PLUG,SPARK (X22ESR-U) | DENSO

09482-00222

$5.36

34

SPARK PLUG (X24ESR-U) | OPT

09482-00223

$5.18

34

SPARK PLUG (X24ESR-U) | DENSO

09482-00223

$5.18

34

PLUG,SPARK (X27ESR-U) | OPT

09482-00224

Unavailable

34

PLUG,SPARK (X27ESR-U) | DENSO

09482-00224

Unavailable

34

SPARK PLUG (DR8EA) | OPT

09482-00399

$3.32

34

SPARK PLUG (DR8EA) | NGK

09482-00399

$3.32

34

SPARK PLUG (DR9EA) | OPT

09482-00400

$5.24

34

SPARK PLUG (DR9EA) | NGK

09482-00400

$5.24

35

UNION,CYL HEAD OUTLET

11181-41F00

$51.32

36

GASKET,WATER OUTLET UNION

11182-38A00

$2.81

37

BOLT

07130-0620A

$2.50

38

BUSH

09301-08007

$6.80

39

UNION,CYL HEAD JOINT

17891-41F10

$15.63

40

BOLT

07130-0612A

$2.50

41

O-RING (D:2.4,ID:15.8)

09280-16005

$2.23

42

HOSE,CYL HEAD JOINT

17854-41F01

$18.33

43

CLAMP

09402-28513

$6.88

44

SENSOR,WATER TEMP

13650-57F00

$121.55

45

GASKET (12X17X1)

09168-12017

$1.95
