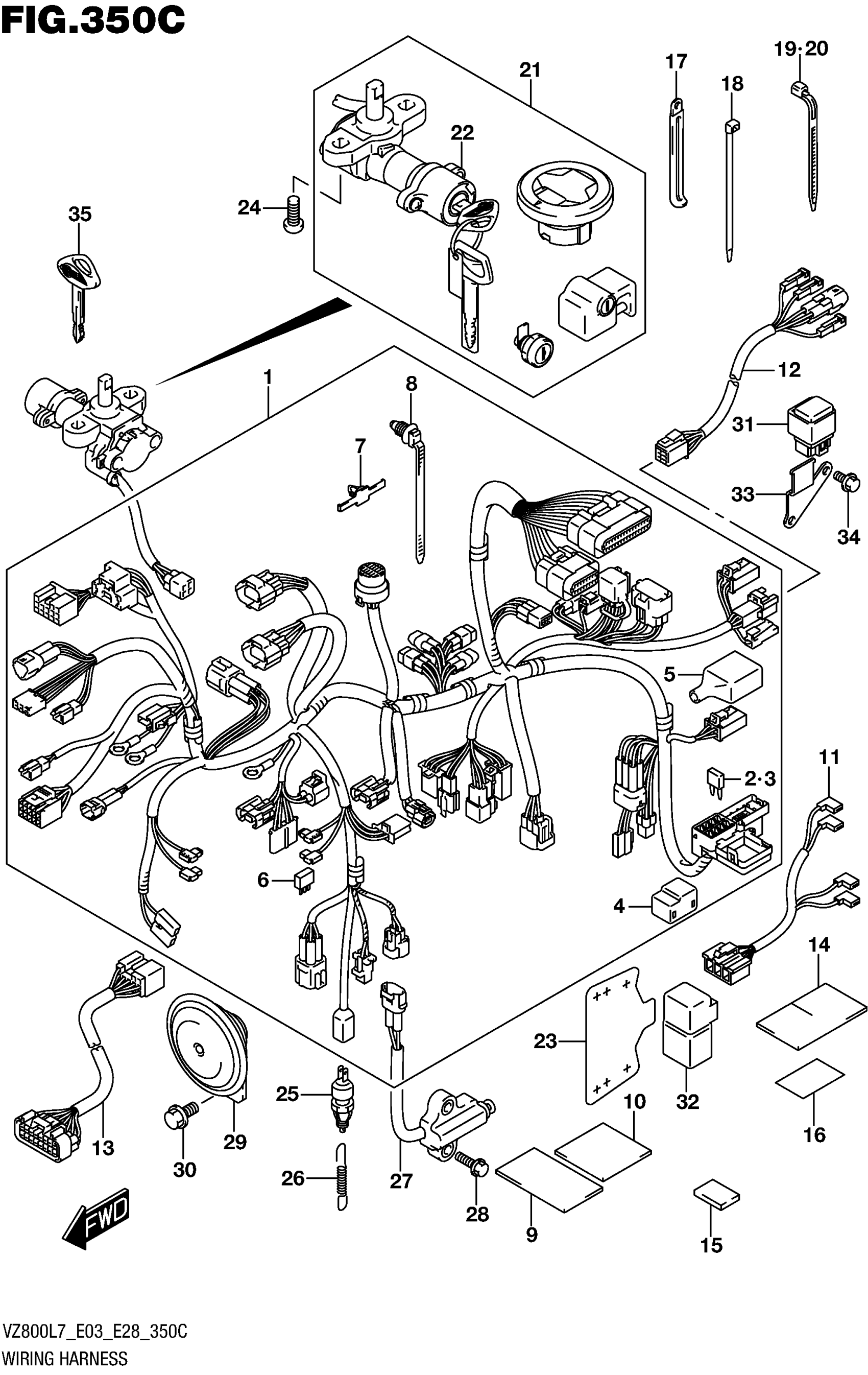

Suzuki VZ800L7 (2017) WIRING HARNESS (VZ800L7 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-39GQ0

$986.42

2

.FUSE (10A)

09481-10501

$2.06

3

.FUSE (15A)

09481-15501

$2.02

4

.COVER, FUSE

36717-41F10

Unavailable

5

.BOOT

36717-41F00

Unavailable

6

.DIODE

36611-38A10

$13.16

7

.CLAMP

09407-05410

Unavailable

8

.CLAMP (L:154)

09407-17403

$4.91

9

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

10

TAPE, WIRING HARNESS

36611-41F00

Unavailable

11

WIRE, IGNITION COIL LEAD

36854-39G00

Unavailable

12

WIRE, REARCOMBINATION

36858-39GD0

Unavailable

13

WIRE, METER LEAD

36859-39G00

Unavailable

14

TAPE, WIRING HARNESS

36920-33C00

Unavailable

15

PROTECTOR, WIRING HARNESS

36930-60A10

$2.92

16

PROTECTOR, WIRING HARNESS

94474-17H00

$4.58

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

CLAMP (L:145)

09407-14407

$3.57

19

CLAMP (L:165)

09407-18402

$2.19

20

CLAMP (L:190)

09407-19401

$3.05

21

LOCK SET

37103-41870

Unavailable

22

.LOCK ASSY,STEERING This part replaces 37100-41F70.

37100-41F71

$152.57

23

PROTECTOR, IGNITION SWITCH

37187-41F10

$12.17

24

BOLT (8X20)

09139-08016

$3.37

25

SWITCH ASSY, STOP LAMP

37740-24A00

$18.20

26

SPRING

09443-06073

$3.42

27

SWITCH ASSY,SIDE STAND This part replaces 37840-41F00.

37840-41F02

$60.37

28

BOLT (6X20)

01550-0620B

$2.39

29

HORN ASSY

38500-41F40

$72.18

30

BOLT (8X16)

01550-0816A

$2.32

31

RELAY ASSY | FOR HEAD LAMP

38740-24A00

$63.30

32

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$45.20

33

BRACKET, HEAD LAMP RELAY

38741-39G00

Unavailable

34

BOLT

01550-0612A

$1.97

35

KEY, BLANK | OPT

37146-41FA0

$50.63
