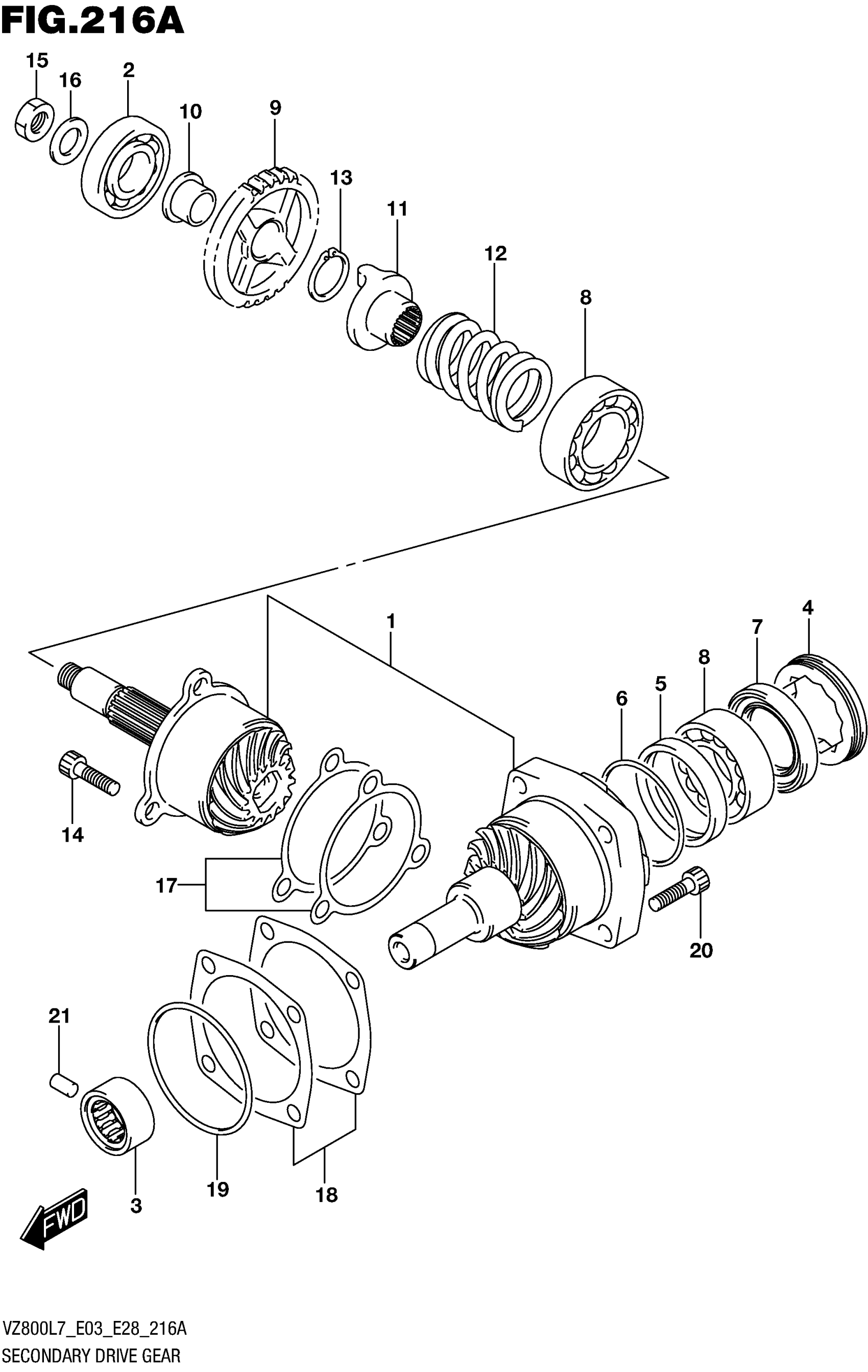

Suzuki VZ800L7 (2017) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR & HOUSING SET, SECONDARY

24900-41810

Unavailable

1

(NT:15/17)

24900-41810

Unavailable

2

.BEARING (20X52X15)

09262-20073

$21.00

3

.BEARING (20X34X16)

09263-20038

$60.80

4

.STOPPER, BEARING

24942-38A50

$74.95

5

.HOUSING, OIL SEAL

24943-38A50

$98.98

6

.O RING (D:1.2,ID:59.6)

09280-60003

$3.00

7

.OIL SEAL (38X54X8.5)

09283-38016

$19.93

8

BEARING (30X62X23.8)

09267-30005

$129.92

9

GEAR, REDUCTION DRIVEN (NT:30

24631-38A00

Unavailable

10

BUSH,REDUCTION DRIVEN GEAR

24632-38A00

Unavailable

11

DOG, OUTPUT CAM

24922-38A00

Unavailable

12

SPRING

09440-44002

Unavailable

13

CIRCLIP

08331-31219

$2.65

14

BOLT (8X25)

09106-08097

$1.89

15

NUT This part replaces 09140-16001.

09140-16005

$4.08

16

WASHER (16X29X4)

09160-16029

$6.90

17

SHIM SET, SEC DRIVE GEAR | T:0.3/0.35/0.4/0.5/0

24935-38810

Unavailable

18

SHIM SET, SEC DRIVE HOUSING | T:0.3/0.35/0.4/0.5/0

24945-05810

Unavailable

19

O RING (D:2.1,ID:66.2)

09280-67004

$4.45

20

BOLT (8X25)

09106-08097

$1.89

21

PIN

04221-07129

$1.88
