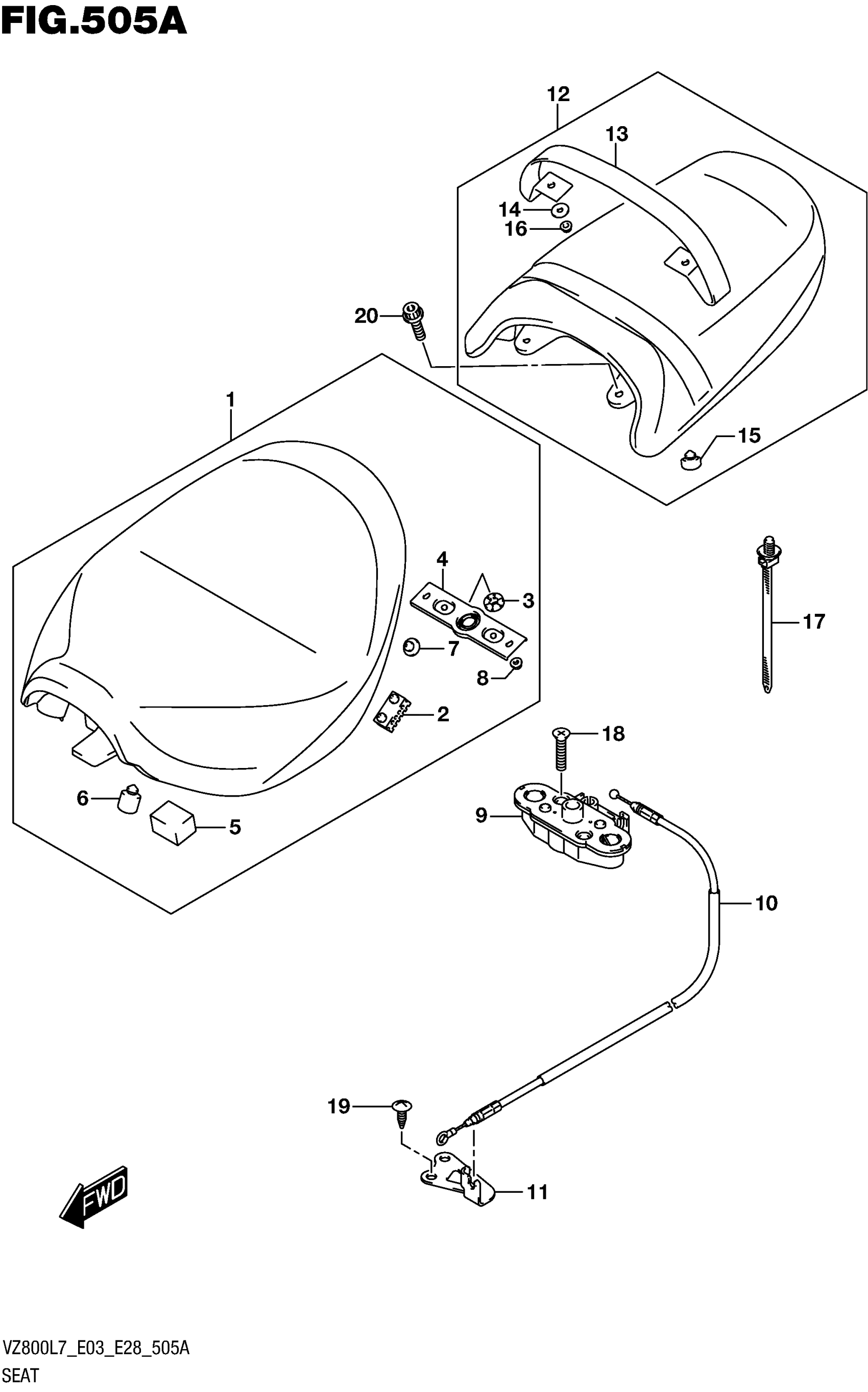

Suzuki VZ800L7 (2017) SEAT Diagram

#

Description
Price

1

SEAT ASSY(BLACK This part replaces 45100-39G31-48H.

45100-39G32-48H

$323.48

2

.CUSHION, SEAT MOUNT

45149-31300

$3.56

3

.CUSHION, SEAT LOCK STRIKER

45213-13601

$2.79

4

.STRIKER, SEAT LOCK

45215-26F00

Unavailable

5

.CUSHION, BATTERY

45255-15500

Unavailable

6

.CUSHION

09321-10034

$9.11

7

.CUSHION

09329-10001

$2.12

8

.NUT

08316-1006A

$2.19

9

BRACKET, SEAT SUPPORT

45220-47H00

$138.38

10

CABLE, SEAT LOCK

45280-39G00

Unavailable

11

GUIDE, SEAT LOCK CABLE

45288-39G00

Unavailable

12

SEAT ASSY,PILLI This part replaces 45300-39G30-48H.

45300-39G31-48H

$344.30

13

.BAND, SEAT PILLION (BLACK)

45380-39G30-48H

Unavailable

14

.WASHER (6.5X20X1.6)

09160-06088

$1.65

15

.CUSHION (11.5X22X20)

09321-10002

$2.22

16

.NUT

08316-1006A

$2.19

17

CLAMP (L:154)

09407-17403

$4.91

18

SCREW

02122-0630A

$1.74

19

SCREW

03541-0516A

$1.49

20

BOLT

07120-0616A

$2.53
