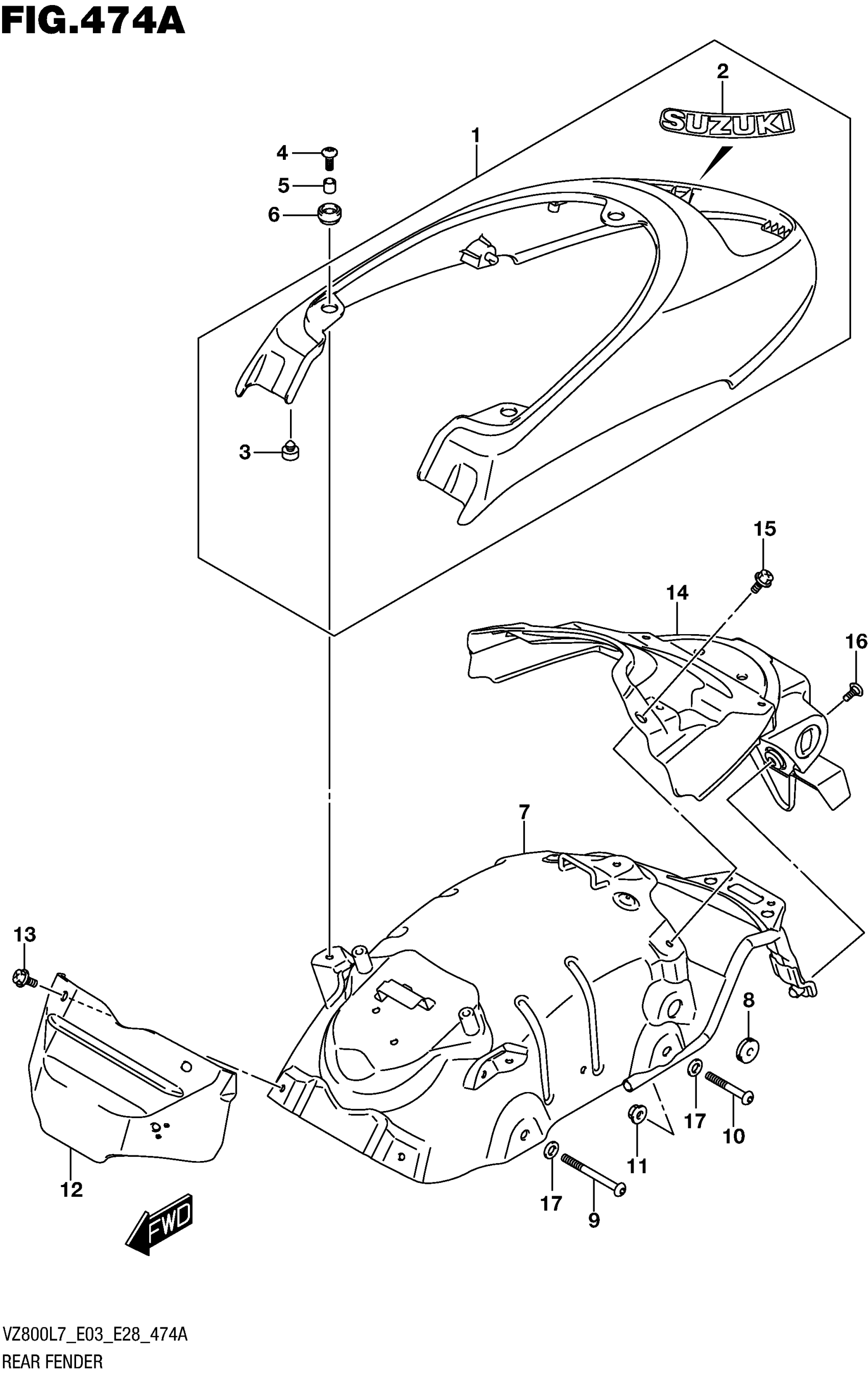

Suzuki VZ800L7 (2017) REAR FENDER Diagram

#

Description
Price

1-1

FENDER,REAR | FOR YVB This part replaces 63110-39G50-6UX.

63110-39G51-6UX

$255.95

1-2

FENDER, REAR (GRAY) | FOR QEB

63110-39G50-QEB

Unavailable

2-1

.EMBLEM,"SUZUKI" (GRAY) | FOR 6UX This part replaces 68641-19F00-YJH.

68641-19F01-YJH

$12.82

2-2

.EMBLEM,"SUZUKI" (BLACK) | FOR QEB This part replaces 68281-24F10-019.

68281-24F11-019

$10.89

3

PLUG (OD:10) This part replaces 09250-06012.

09250-06017

$2.71

4

SCREW (6X20)

09136-06105

$1.97

5

SPACER (6.5X10X7)

09180-06283

$1.91

6

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

7

BRACE, FENDER

63140-39G00

Unavailable

8

CUSHION

09320-08029

$2.41

9

BOLT (8X70)

09106-08182

$4.17

10

BOLT (8X50)

09106-08183

$3.70

11

NUT

08316-1008A

$2.45

12

FENDER, FRONT

63112-39G50

Unavailable

13

BOLT (6X12)

09111-06107

$2.60

14

EXTENSION

63311-39G01

$60.38

15

BOLT (6X12)

09111-06107

$2.60

16

SCREW (6X12)

09139-06144

$2.50

17

WASHER

08322-0108A

$1.92
