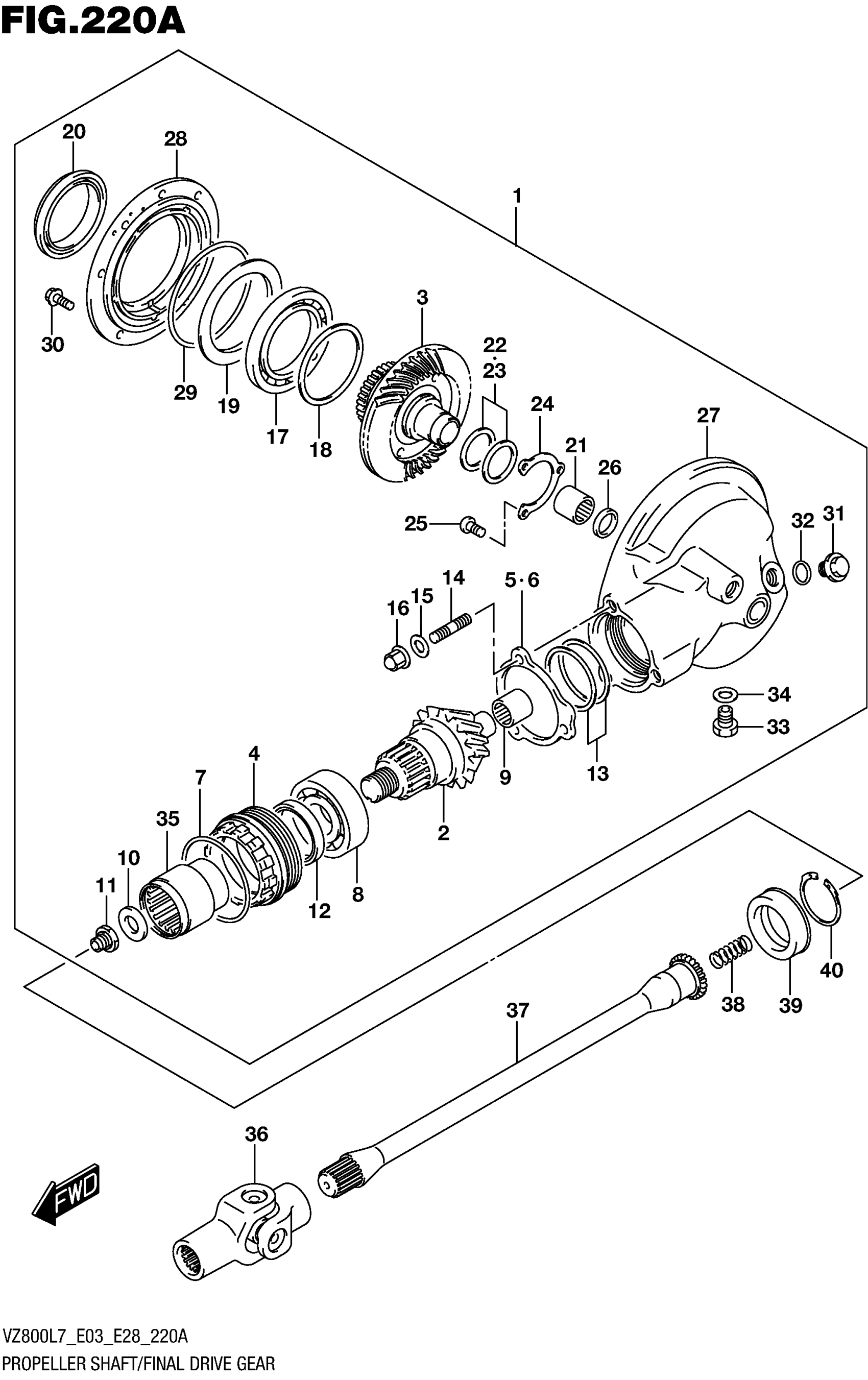

Suzuki VZ800L7 (2017) PROPELLER SHAFT/FINAL DRIVE GEAR Diagram

#

Description
Price

1

GEAR & CASE SET, FINAL BEVEL

27301-38840-019

$2,356.25

1

(BLACK)

27301-38840-019

$2,356.25

2

.GEAR, FINAL DRIVE BEVEL

27311-38A00

$297.98

2

(NT:11)

27311-38A00

$297.98

3

.GEAR, FINAL DRIVEN BEVEL

27320-45C01

$463.53

3

(NT:34)

27320-45C01

$463.53

4

.STOPPER, BEARING

27312-38A00

$72.73

5

.PLATE

27313-38A00

$7.37

6

.PLATE

27313-38A10

$7.37

7

.O RING (D:1.9,ID:61.6)

09280-62002

$3.29

8

BEARING (30X62X23.8)

09267-30005

$119.55

9

.BEARING (17X32X16)

09263-17028

$48.78

10

.WASHER (16X29X4)

09160-16029

$6.35

11

.NUT

09159-16010

$10.00

12

.OIL SEAL (38X54X6)

09283-38009

$17.33

13

.SHIM SET, FINAL | T:0.3/0.35/0.4/0.5/0

27445-38810

$28.18

14

.STUD BOLT

09108-10095

$5.72

15

.WASHER

09164-10008

$1.71

16

.NUT

09159-10026

$6.20

17

.BEARING (70X110X13) | RH

09262-70001

$140.93

18

.SHIM SET, DRIVE GEAR BEARING | T:0.35/0.4/0.5/0.6

27327-34810

$38.45

19

.PLATE

27328-34200

$7.37

20

.OIL SEAL (70X96X16) | RH

09289-70001

$51.76

21

.BEARING (32X46X17.7) | LH

09263-32007

$81.08

22

.SHIM SET, FINAL DRIVE GEAR | T:1.05/1.1/1.2/1.25/

27326-34820

Unavailable

23

.SHIM SET, FINAL DRIVE GEAR | T:1.40/1.45/1.50

27326-34810

Unavailable

24

.RETAINER, BEARING

27329-34200

Unavailable

25

.SCREW (6X12)

09125-06122

$2.44

26

.OIL SEAL (30X42X7) | LH

09283-30028

$9.60

27

.CASE, FINAL GEAR (BLACK)

27450-38A70-019

Unavailable

28

.CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

29

.O RING (D:3.5,ID:131.6)

09280-00015

$11.03

30

.BOLT

01550-0825A

$2.32

31

.PLUG

09247-18001

$8.83

32

.O RING (D:2.4,ID:17.8)

09280-18004

$5.18

33

PLUG (MAGNETO) | OIL DRAIN

09247-14002

$5.24

34

.GASKET (13.8X18.8X4.8)

09168-14002

$2.26

35

.COUPLING, PROPELLER SHAFT

27172-38A00

$53.04

36

YOKE, UNIVERSAL JOINT

27100-38A60

$348.15

37

SHAFT, PROPELLER

27151-41F00

$189.11

38

SPRING

09440-18019

$2.82

39

OIL SEAL (28.4X48X15)

09283-30051

$10.49

40

CIRCLIP

09381-40003

$4.64
