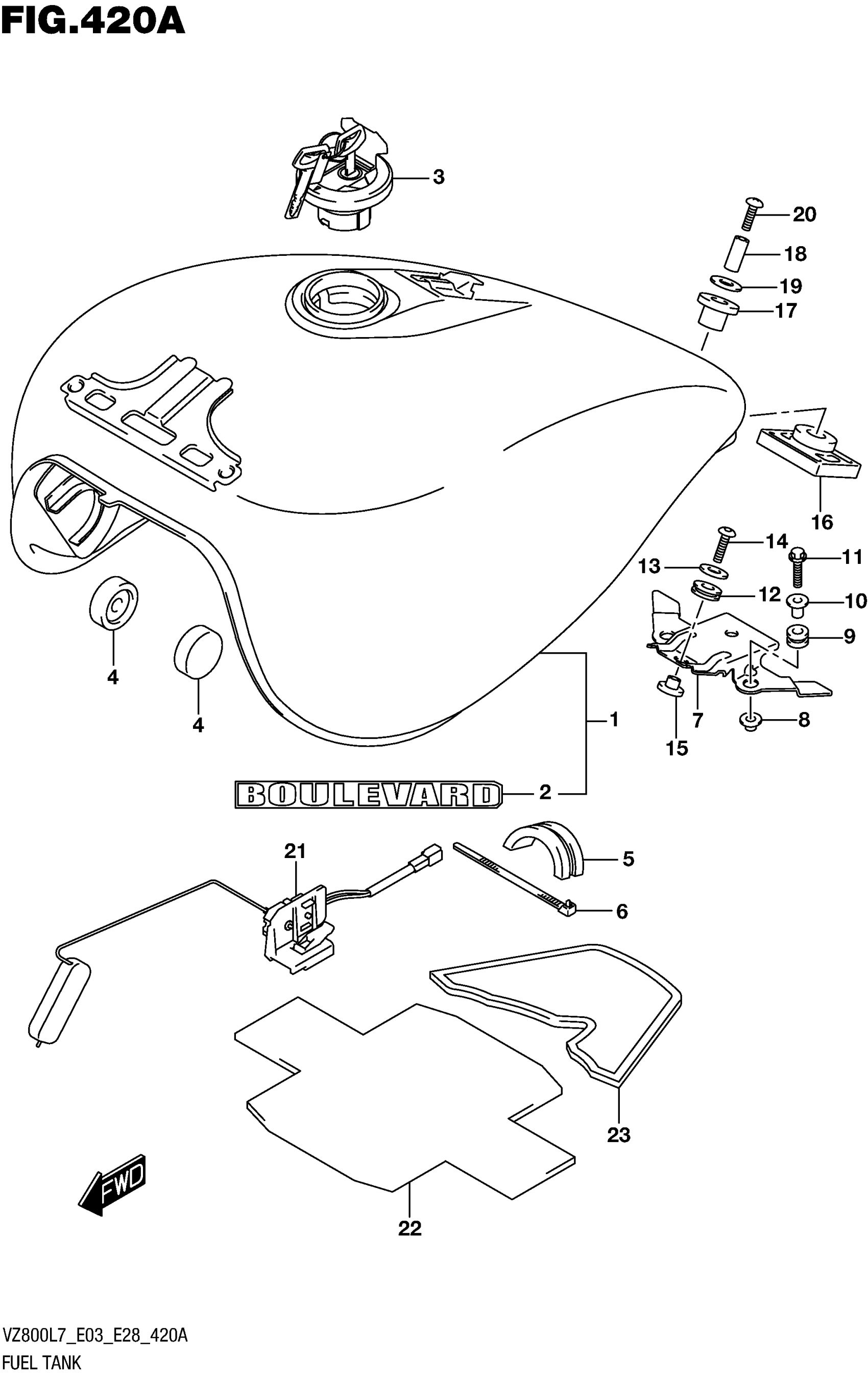

Suzuki VZ800L7 (2017) FUEL TANK (VZ800L7 E03) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (GRAY)

44100-39GP0-QEB

Unavailable

1-2

TANK ASSY, FUEL (BLACK)

44100-39GP0-YVB

Unavailable

2-1

.EMBLEM (BLACK) | FOR QEB

68111-48G20-019

$26.12

2-2

.EMBLEM (GRAY) | FOR YVB

68111-48G20-YHG

$25.62

3

CAP SET,FUEL TA This part replaces 44200-39860.

44200-39862

$123.27

4

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

5

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

6

CLAMP (L:250)

09407-25402

$4.64

7

BRACKET, REAR

44530-39G20

Unavailable

8

WASHER

09169-06076

$3.05

9

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

10

WASHER

09169-06070

$4.77

11

SCREW

02162-0625B

$2.10

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

13

WASHER (8.5X26X1.6)

09160-08151

$1.99

14

BOLT (8X23)

09106-08150

$3.42

15

WASHER

44512-39G00

Unavailable

16

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.52

17

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$5.27

18

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.06

19

WASHER (8.5X33X1.5)

09160-08146

$2.60

20

BOLT (8X35)

01550-0835A

$3.04

21

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$112.19

22

SHIELD, TANK HEAT

44192-39G00

$148.62

23

SHIELD, TANK HEAT NO.2

44193-39G00

$102.17
