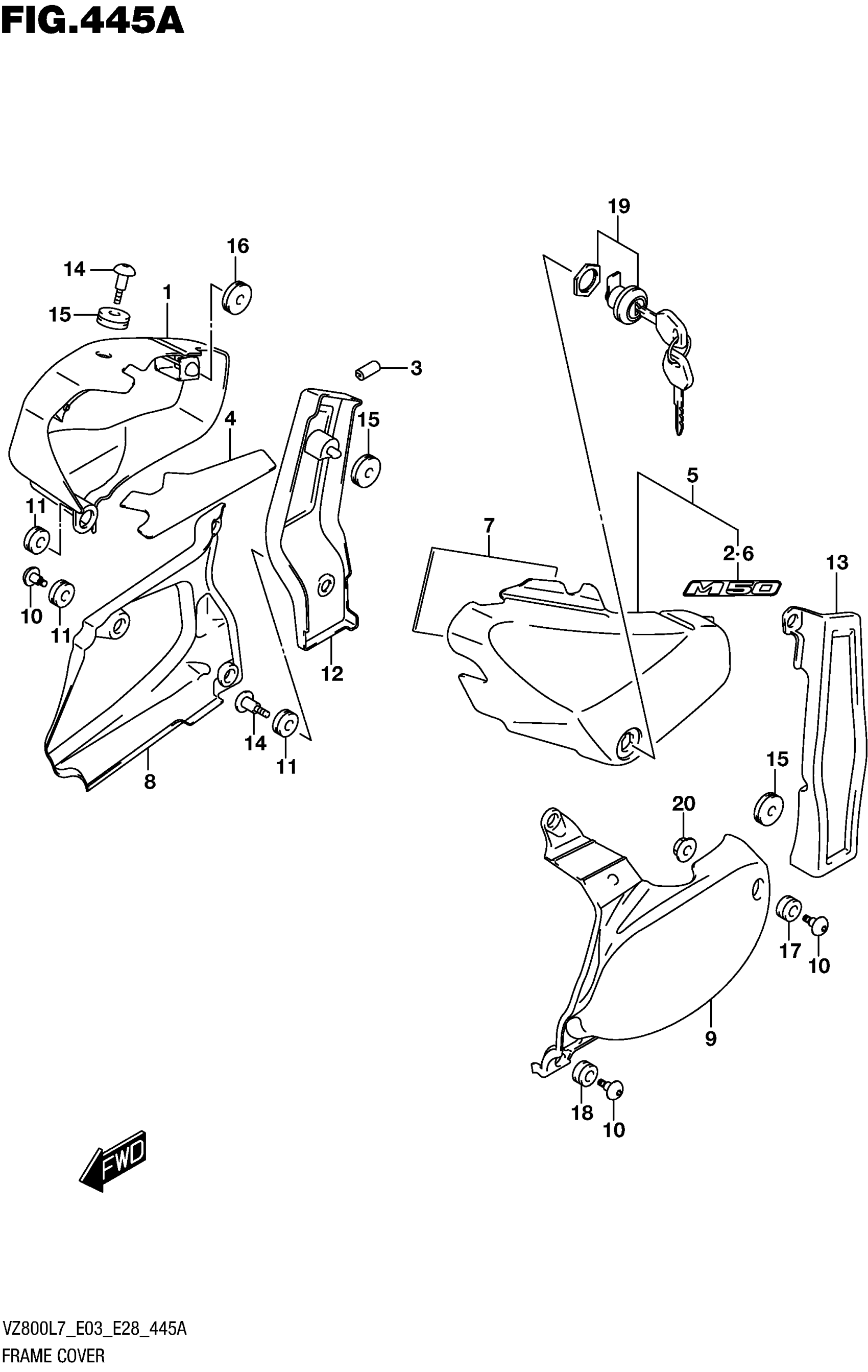

Suzuki VZ800L7 (2017) FRAME COVER (VZ800L7 E03) Diagram

#

Description
Price

1-1

COVER, FRAME RH (BLACK)

47110-39GA0-YVB

Unavailable

1-2

COVER, FRAME RH (GRAY)

47110-39GA0-QEB

Unavailable

2-1

.EMBLEM, M50 (GRAY) | FOR YVB

68131-39GA0-YHG

Unavailable

2-2

.EMBLEM, M50 (BLACK) | FOR QEB

68131-39GA0-019

$18.60

3

.MOLDING

94631-35F00

$7.40

4

.SHIELD, RH

47166-41F00

$17.83

5-1

COVER, FRAME LH (BLACK)

47210-39GA0-YVB

$179.70

5-2

COVER, FRAME LH (GRAY)

47210-39GA0-QEB

$211.40

6-1

.EMBLEM, M50 (GRAY) | FOR YVB

68131-39GA0-YHG

Unavailable

6-2

.EMBLEM, M50 (BLACK) | FOR QEB

68131-39GA0-019

$18.60

7

.CUSHION, SIDE COVER

47217-41F00

$11.98

8

COVER, SIDE LOWER RH

47130-41F10

Unavailable

9

COVER, SIDE LOWER LH

47231-41F10

$289.23

10

SCREW

47133-43H00

$6.03

11

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

12

COVER, SIDE REAR RH (BLACK)

47141-41F01-019

$137.92

13

COVER, SIDE REAR LH (BLACK)

47241-41F00-019

$137.92

14

SCREW (6X20)

09139-06126

$4.04

15

CUSHION

09320-08018

$3.04

16

CUSHION

09320-08028

$3.04

17

CUSHION

09320-09501

$2.03

18

CUSHION This part replaces 09320-09045.

09320-09062

$2.00

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

NUT

08316-1006B

$2.50
