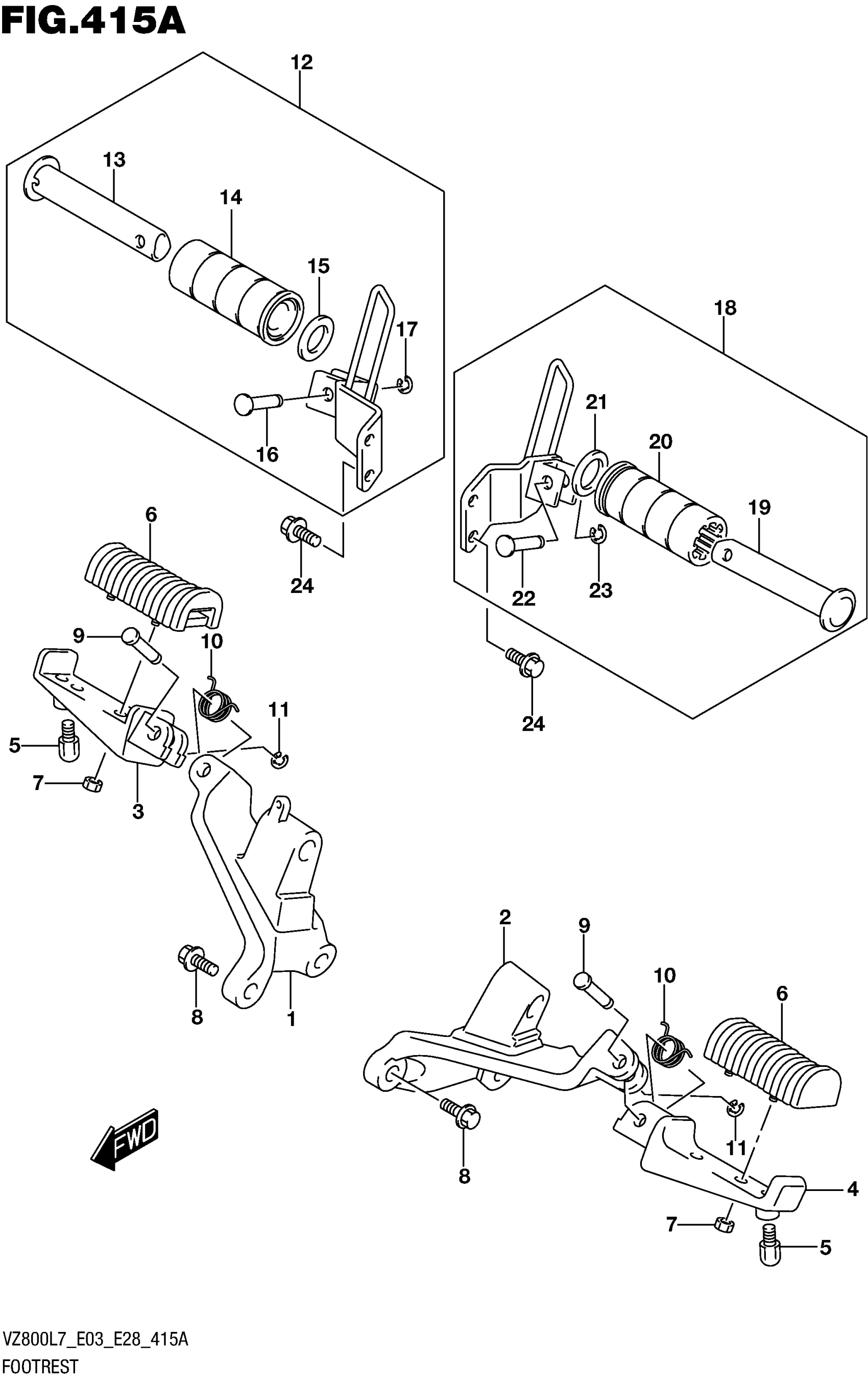

Suzuki VZ800L7 (2017) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43511-41F00

$179.97

2

BRACKET, FRONT FOOTREST LH

43521-41F10

$220.03

3

BAR, FRONT RH

43531-41F02

$52.78

4

BAR, FRONT LH

43541-41F02

$51.15

5

.BOLT,BANK SENSOR

43576-07D01

$8.85

6

RUBBER, FRONT FOOTREST

43550-41F00

$26.68

7

NUT

08319-2106B

$2.32

8

BOLT

01580-1030B

$5.18

9

PIN (8X33.2)

09208-08010

$2.91

10

SPRING

09448-18022

$3.79

11

E RING

08332-1106A

$1.49

12

FOOTREST ASSY, PILLION RH

43600-41F60

$79.75

13

.BAR,PILLION FOOTREST

43610-39G10

$16.68

14

.RUBBER

43612-39G00

$10.02

15

.WASHER (19.5X32X2)

09160-19024

$2.65

16

.PIN

43636-25D00

$10.65

17

E-RING

08332-1104B

$1.78

18

FOOTREST ASSY, PILLION LH

43700-41F60

$79.75

19

.BAR,PILLION FOOTREST

43610-39G10

$16.68

20

.RUBBER

43612-39G00

$10.02

21

.WASHER (19.5X32X2)

09160-19024

$2.65

22

.PIN

43636-25D00

$10.65

23

E-RING

08332-1104B

$1.78

24

BOLT (8X16)

09103-08412

$3.03
