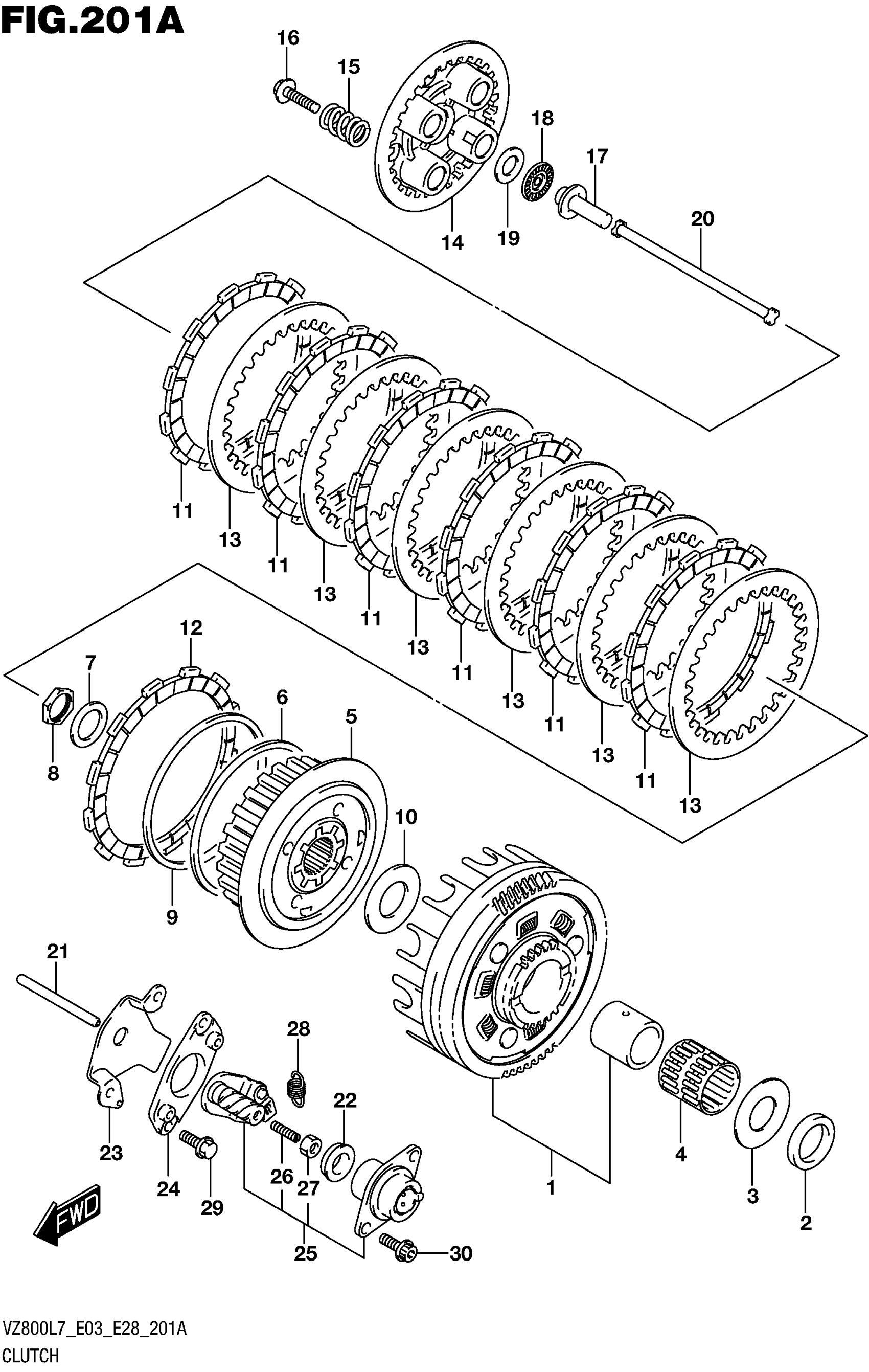

Suzuki VZ800L7 (2017) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:71)

21200-38840

$463.53

2

SPACER (25X38X6.5)

09180-25077

$13.53

3

WASHER (25X50X2.5)

09160-25055

$8.62

4

BEARING (35X40X35.8)

09263-35017

$40.54

5

HUB, SLEEVE

21410-41F00

$143.92

6

SEAT, WAVE WASHER

21471-37400

$9.78

7

WASHER

09164-22007

$7.35

8

NUT

09140-22008

$7.35

9

WASHER

09164-00004

$11.35

10

WASHER (25X50X2.5)

09160-25055

$8.62

11

PLATE, DRIVE NO.1 (T:3.0)

21441-37400

$18.13

12

PLATE, DRIVE NO.2 (T:3.5)

21442-37401

$18.67

13

PLATE, DRIVEN (T:1.6)

21451-14A00

$9.52

14

DISC, PRESSURE

21462-27A00

$57.67

15

SPRING, CLUTCH

21413-41F00

$4.79

16

BOLT (6X30)

09116-06203

$3.14

17

PIECE, PUSH

23121-31E00

$23.92

18

BEARING (15X28X2)

09263-15003

$8.29

19

WASHER (15.5X28X1)

09160-15045

$3.89

20

ROD, PUSH RH

23110-27A00

$21.09

21

ROD, PUSH LH

23111-45C00

$17.37

22

OIL SEAL (6X34X10.5)

09283-06010

$16.80

23

RETAINER,CL PUSH ROD OIL SEAL

23117-45C00

Unavailable

24

BRACKET, RELEASE SCREW

23130-45C00

$26.28

25

SCREW ASSY, CLUTCH RELEASE

23200-41F00

$95.98

26

.SCREW (6X25)

09134-06010

$3.12

27

.NUT

08310-00067

$2.13

28

SPRING

09443-09050

$4.02

29

BOLT

07120-0620A

$2.72

30

BOLT

07120-0616A

$2.53
