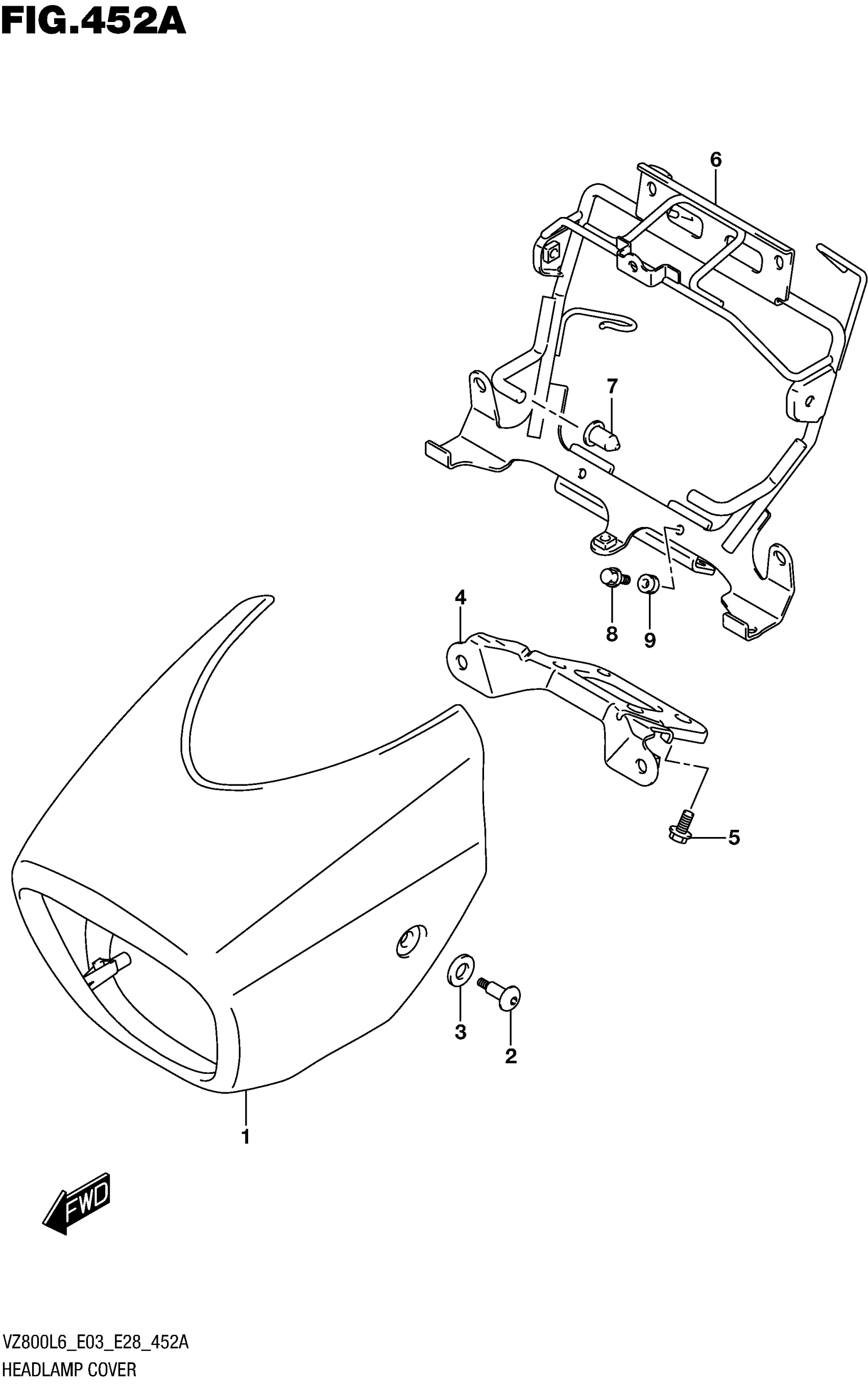

Suzuki VZ800L6 (2016) HEADLAMP COVER Diagram

#

Description
Price

1-1

COVER, HEADLAMP (BLACK)

51811-39G10-YVB

$249.37

1-2

COVER, HEADLAMP (GRAY)

51811-39G10-QEB

$200.37

2

SCREW (6X22)

09139-06191

$4.03

3

WASHER

53121-39G10

$3.84

4

BRACKET

51860-39G00

Unavailable

5

BOLT

01547-0612A

$2.03

6

BRACE, COVER

51850-39G10

Unavailable

7

CUSHION

51831-21D00

$4.58

8

BOLT (8X12)

01550-0812A

$2.32

9

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10
