Description

Price

1

HANDLEBAR

56111-39GC0

$195.88

2

BALANCER SET, HANDLEBAR

56200-10892

$57.38

3

.SCREW (6X127)

09127-06017

$2.78

4

.EXPANDER, OUTER

56272-26D01

$7.25

5

.SPACER

56276-17D00

$5.07

6

.WASHER (6.5X16X4)

09160-06131

$2.50

7

.EXPANDER, INNER

56272-10G10

$4.73

8

.NUT

56273-10G10

$8.65

9

MIRROR ASSY, REAR VIEW RH

56500-41FG0

$159.00

10

MIRROR ASSY, REAR VIEW LH

56600-41FG0

$159.00

11

CABLE ASSY, CLUTCH

58200-39G30

Unavailable

12

CABLE ASSY,THRO This part replaces 58300-39G60.

58300-39G61

$44.65

13

CABLE ASSY,THRO This part replaces 58300-39G70.

58300-39G71

$39.92

14

GUIDE, THROTTLE CABLE

58626-39G20

Unavailable

15

BOLT

01550-0616A

$1.97

16

CLAMP (L:190)

09407-19401

$3.05

17

CLAMP (L:300)

09407-30401

$5.72

18

CLIP

09408-00244

$2.83

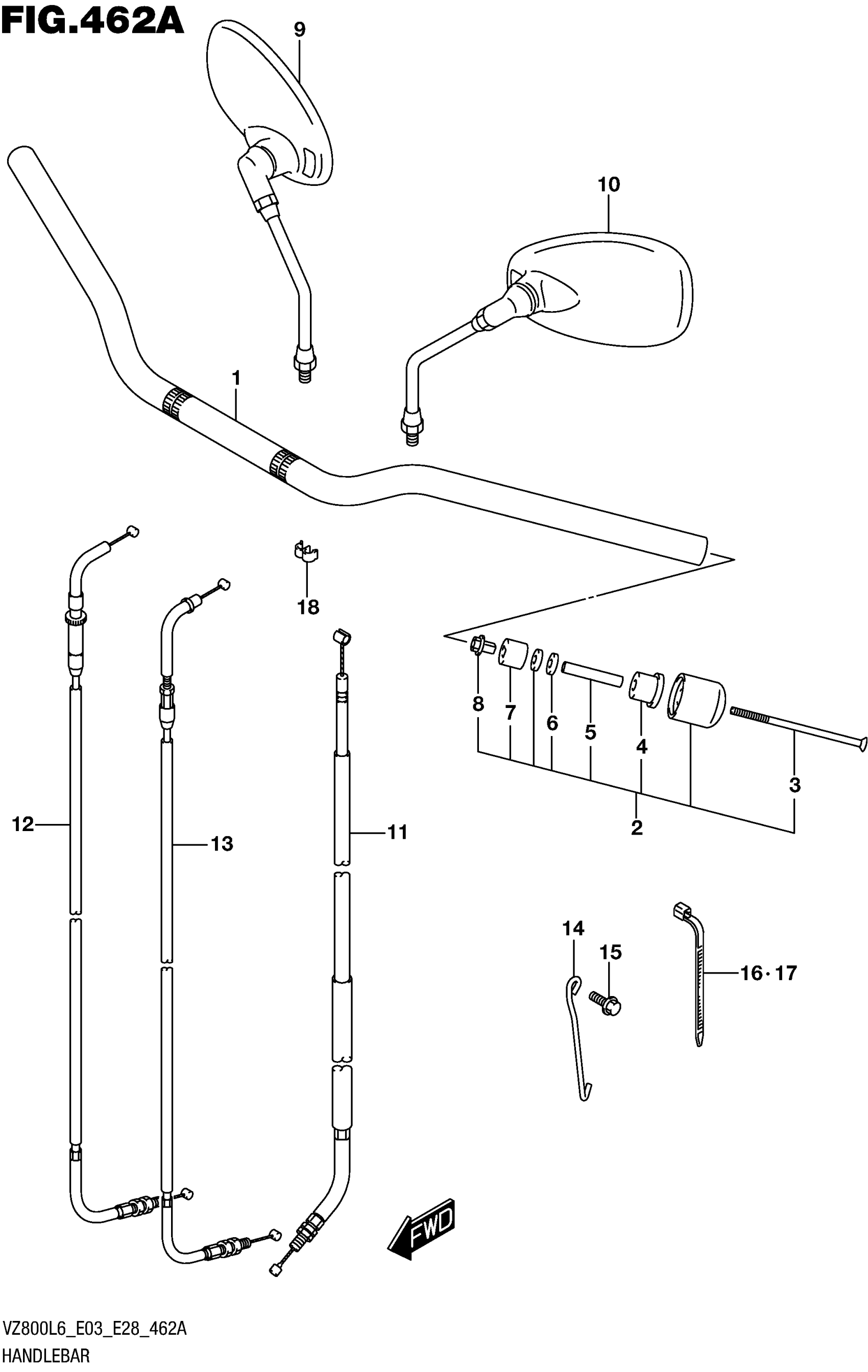

Suzuki VZ800L6 (2016) HANDLEBAR Diagram
