Description

Price

1

WHEEL, FRONT (16M/CXMT3.00)

54111-39G00-019

$997.07

1

(BLACK)

54111-39G00-019

$997.07

2

BEARING | LH This part replaces 08133-62037.

08133-6203B

$17.61

3

BEARING | RH

08143-62037

$18.47

4

SPACER (17.5X25X113)

09180-17092

$25.33

5

AXLE, FRONT

54711-41F00

$110.67

6

SPACER, AXLE LH

54740-32C00

$18.43

7

DISC, FRONT BRAKE

59211-39G00

$310.22

8

BOLT (8X21)

09106-08160

$3.57

9

TIRE,FR(130/90- | GS-23F A/TL This part replaces 55110-41F10.

55110-41F11

Unavailable

9

TIRE,FR(130/90- | IRC This part replaces 55110-41F10.

55110-41F11

Unavailable

10

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

11-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

11-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

11-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

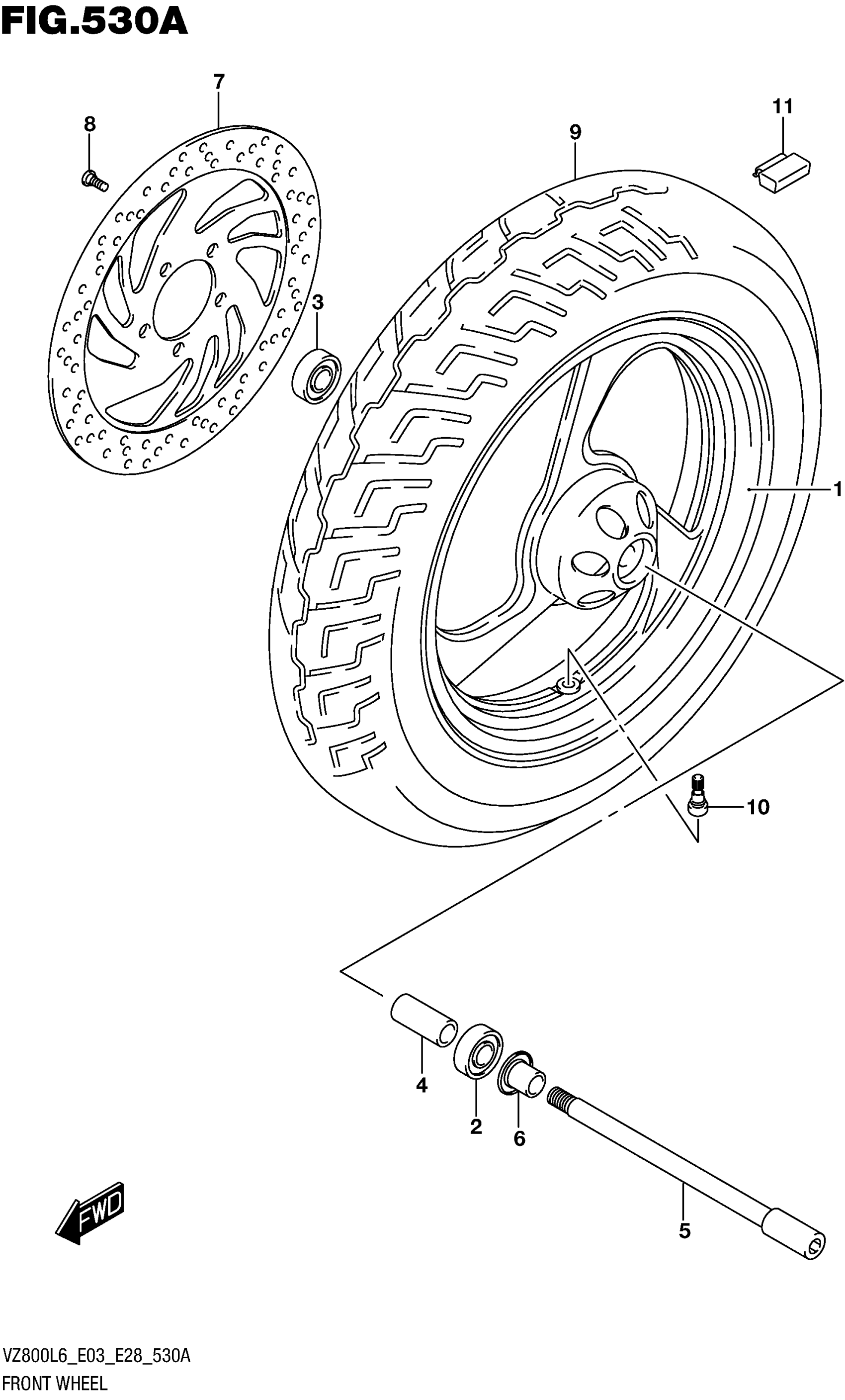

Suzuki VZ800L6 (2016) FRONT WHEEL Diagram
