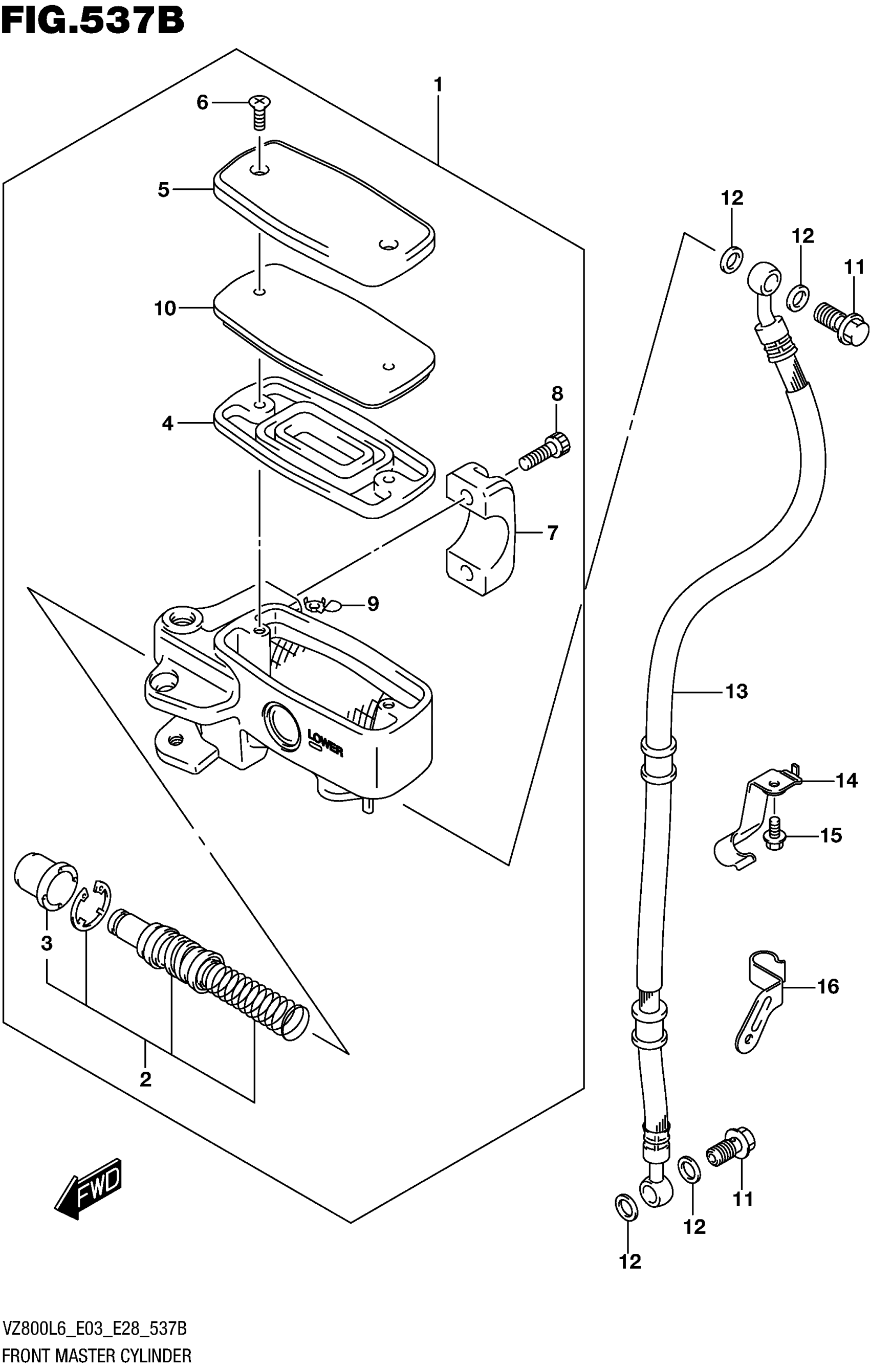

Suzuki VZ800L6 (2016) FRONT MASTER CYLINDER (VZ800L6 E28) Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-10FF0

Unavailable

.PISTON/CUP SET

59600-04810

$45.20

..BOOT

59666-44300

$5.80

.DIAPHRAGM

59667-10F00

$10.10

.CAP

59669-10F40

$49.67

.SCREW

69689-49300

$1.91

.HOLDER

59671-10F20

Unavailable

.BOLT

07130-06207

$3.04

.PROTECTOR

59664-32F00

$11.68

.PLATE

57437-10F00

$21.03

UNION

09360-10062

$6.43

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE This part replaces 59480-39G20.

59480-39G21

$93.95

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

BOLT

01547-0612B

$1.49

CLAMP, FR BRAKE HOSE

59268-39G00

Unavailable
