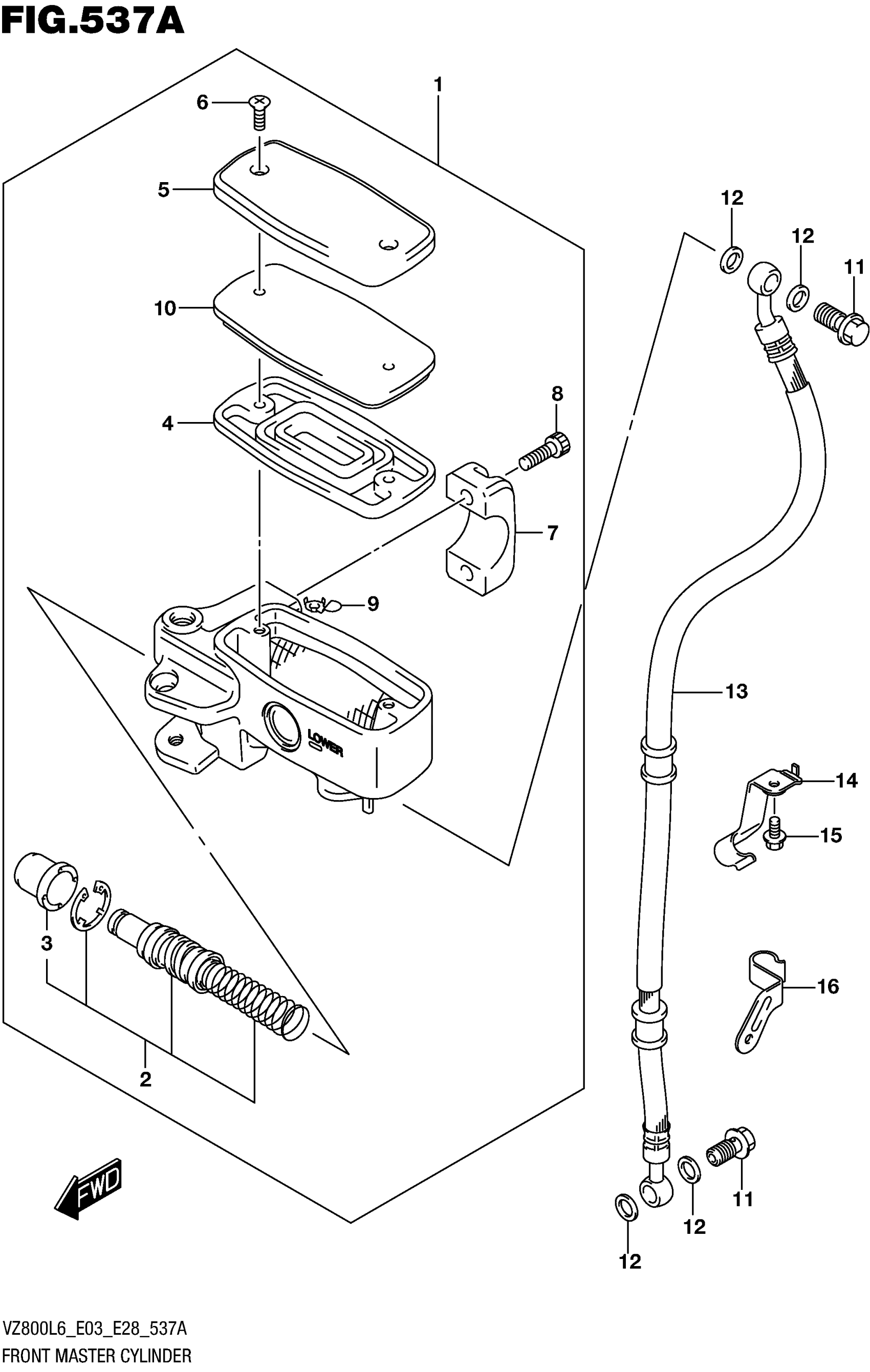

Suzuki VZ800L6 (2016) FRONT MASTER CYLINDER (VZ800L6 E03) Diagram

Description

Price

CYLINDER ASSY, FRONT MASTER

59600-10FF0

Unavailable

.PISTON/CUP SET

59600-04810

$41.38

..BOOT

59666-44300

$5.30

.DIAPHRAGM

59667-10F00

$11.40

.CAP

59669-10F40

$56.07

.SCREW

69689-49300

$1.81

.HOLDER

59671-10F20

Unavailable

.BOLT This part replaces 07110-06207.

07130-06207

$2.80

.PROTECTOR

59664-32F00

$13.20

.PLATE

57437-10F00

$23.73

UNION

09360-10062

$5.81

WASHER (10X15X1.5)

09161-10009

$1.83

HOSE This part replaces 59480-39G20.

59480-39G21

$104.55

CLAMP, BRAKE HOSE UPPER

59266-43H00

Unavailable

BOLT

01547-0612B

$1.22

CLAMP, FR BRAKE HOSE

59268-39G00

Unavailable
