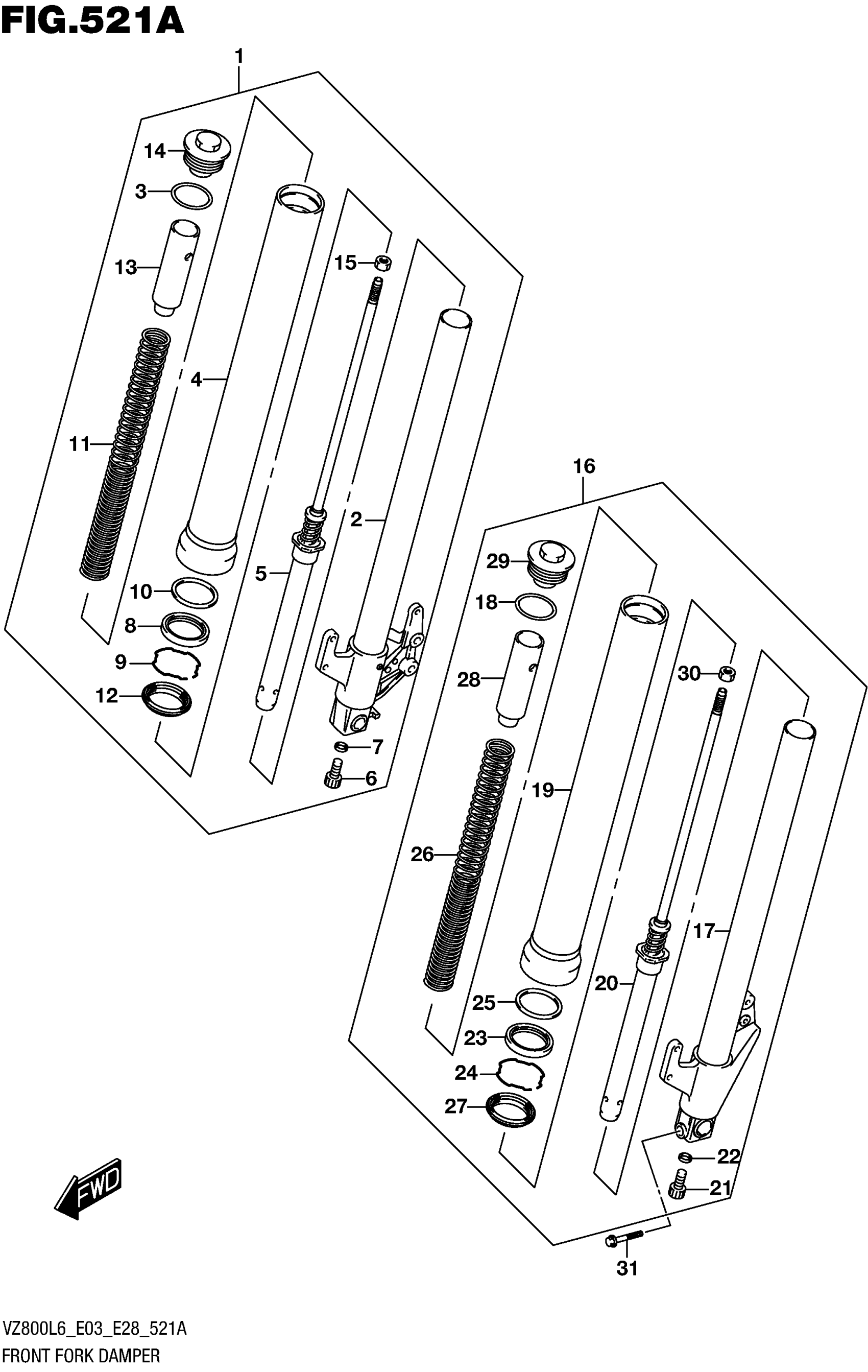

Suzuki VZ800L6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-39G60

$1,242.72

2

.TUBE, INNER RH

51110-39G20

Unavailable

3

.O RING

51117-39G20

$5.84

4

.TUBE, OUTER

51130-39G60

$359.73

5

.CYLINDER

51146-39G20

$283.07

6

.BOLT

51147-05H00

$5.40

7

.GASKET

51148-41310

$2.26

8

.SEAL, OIL

51153-10G50

$20.70

9

.RING, OIL SEAL STOPPER

51156-49440

$5.05

10

.WASHER

51158-05A00

$5.83

11

.SPRING, FRONT

51171-39G20

$103.52

12

.SEAL, DUST

51173-14F00

$23.07

13

.SPACER, SPRING

51176-21H00

$27.40

14

.CAP

51351-39G60

$159.42

15

.NUT, ROD

51352-13A60

$3.03

16

DAMPER ASSY, FRONT FORK LH

51104-39G60

Unavailable

17

.TUBE, INNER LH

51120-39G60

$577.23

18

.O RING

51117-39G20

$5.84

19

.TUBE, OUTER

51130-39G60

$359.73

20

.CYLINDER

51146-39G20

$283.07

21

.BOLT

51147-05H00

$5.40

22

.GASKET

51148-41310

$2.26

23

.SEAL, OIL

51153-10G50

$20.70

24

.RING, OIL SEAL STOPPER

51156-49440

$5.05

25

.WASHER

51158-05A00

$5.83

26

.SPRING, FRONT

51171-39G20

$103.52

27

.SEAL, DUST

51173-14F00

$23.07

28

.SPACER, SPRING

51176-21H00

$27.40

29

.CAP

51351-39G20

Unavailable

30

.NUT, ROD

51352-13A60

$3.03

31

BOLT, AXLE STOPPER

51166-10G10

$5.38
